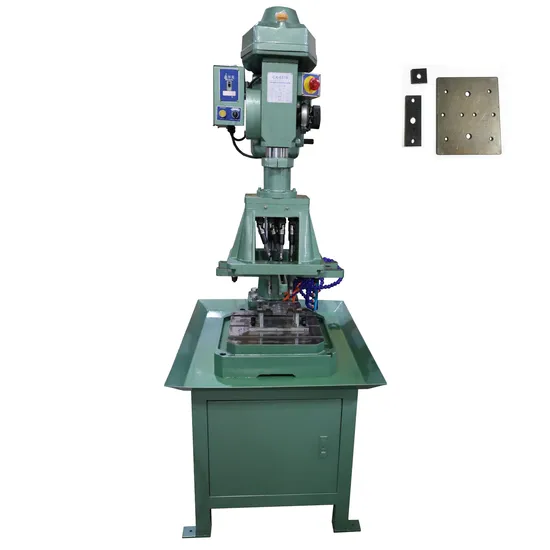

8-Spindle Multi Holes Gear Type Tapping Threading Machine for Punching Cut Metal Parts

Product Description

Product Description
8-Spindle Multi Holes Gear Type Tapping Threading Machine for Punching Cut Metal Parts

Model	CX-6516
Spindle Travel	65mm
Thread Diameter	M2-M16
Head Moving Scope Up and Down	300mm
Distance from Spindle Nose to Worktable	350mm
Working Table Size	720*650*680
Base Size	590*420mm
Motor Power	1.5kw
Voltage	220v/380v/415v
Spindle Rotation	50HZ:590/400/250rpm 60HZ:720/480/300rpm
Standard Gear Pitch(mm)	0.4,0.45,0.5,0.7,0.75,0.8,1.0,1.25, 1.5,1.75,1.8,2.0,2.5
Standard Gear Pitch(inch)	10,11,12,14,16,18,19,20,24,28
Multispindle Capacity	M4*13,M5*10,M6*7,M8*4,M10*3, M12*2,M16*1
Weight	300-480kg

1.Adopt the most advanced flow valve with beffering function,The feed force and speed is adjustable,effectively protect the service life of drill.
2.Simple and quick operation,Easy maintenance,low maintenance costs.
3.Both drilling and feeding speed is adjustable,keeping pace with production.
4.Could be equipped with multiple axes,Drilling multiple holes at the same time,Greatly improves the production efficiency and save labor cost,Increasing the competitiveness.
5.Adopt the highest standard fittings and parts,ensuring machinery durable and anti-abrasive.
6.ChanSin is one of the leading manufacturers producing tapping and drilling machines, with more than 20 years of experience in this field.We have innovative,professional and dedicated work team,Our machinery quality is reliable and after-sales service is complete.
Standard Type Drilling Machine

Drilling Machine	CX-8510	CX-13016	CX-15035
Maximum Drilling Diameter	10mm	16mm	35mm
Electricity	380V/415/440V 3 Phase	380V/415/440V 3 Phase	380V/415/440V 3 Phase
Spindle to Column Distance	200mm	210mm	250m
Spindle Nose to Work Table	100-330mm	100-350mm	120-420mm
Spindle Speed	1400/2800 rpm	1400/2000 rpm	1000/1400 rpm
Machine Head Travel	280mm	280mm	320mm
Motor Power	0.75kw	1.5kw	2.2kw

Standard Type Tapping Machine

Tapping Machine	CX-4508	CX-6516	CX-6516
Tapping Range	1-8mm	2-16mm	5-32mm
Machine Head Travel	260mm	300mm	460mm
Spindle Nose to Work Table	90-350mm	100-350mm	100-600mm
Multi spindle Capacity	M2*16,M3*9,M4*5,M5*3,M6*2,M8*1	M4*13,M5*10,M6*7,M8*4,M10*3,M12*2,M16*1	M8*16,M10*10,M12*7,M14*6,M16*4,M18*3,M20*3,M32*1
Motor Power	0.75kw	1.5kw	2.2kw
Electricity	380V/415/440V 3 Phase	380V/415/440V 3 Phase	380V/415/440V 3 Phase
Spindle Stroke	45mm	65mm	65mm

Drilling and Tapping Heads

CX-HD5-85 AIR/HYDRAULIC DRILLING HEAD	Maximum Drilling φ1-φ10mm Main Spindle Taper ER20/JT6 Main Spindle Travel 85mm Spindle Max Rotating Speed 1400 (r/min) Cylinder Area 21.6m2 Center Height 70±0.01 Motor 0.75KW Net Weight 38kg Using Hydraulic 20-30 kg/cm2 Size(L*W*H) 115*464*370mm
CX-HD6-130 HYDRAULIC DRILLING HEAD	Maximum Drilling φ1-φ16 mmMain Spindle Taper ER25/JT6Main Spindle Travel 130mmSpindle Max Rotating Speed 1400 (r/min)Cylinder Area forward 37.1m2 backward 15.8m2Center Height 70±0.01Motor 1.5KWNet Weight 50kgUsing Hydraulic 20-30 kg/cm2Size(L*W*H) 160*719*417mm
CX-HD8-150 HYDRAULIC DRILLING HEAD	Maximum Drilling φ1-φ35mmMain Spindle Taper MT4/LINE GROOVEMain Spindle Travel 150mmSpindle Max Rotating Speed 1500 (r/min)Cylinder Area forward 71.2m2 backward 31.4m2Center Height 90±0.01Motor 1.5KWNet Weight 67kgUsing Hydraulic 20-30 kg/cm2Size(L*W*H) 280*860*470mm

Non-standard Drilling & Tapping Machine

Company Profile

FAQ
1. Are you a manufacturer or trade company? -- Manufacturer2. What is payment terms? -- 30% deposit, the balance will be paid before delivery3. What is the warranty time ? -- One year warranty and life time maintenance.4. Do you provide OEM service?-- Yes5. Can you send engineers to serve overseas ? -- Yes, You are responsible for round-trip air tickets and accommodation of our engineers.6. What is the loading port ? -- Shenzhen / Guangzhou port
