Oturn CNC Lathe Esy1000myh CNC Torna Turning Center with 5 Axis

Product Description

Product Description

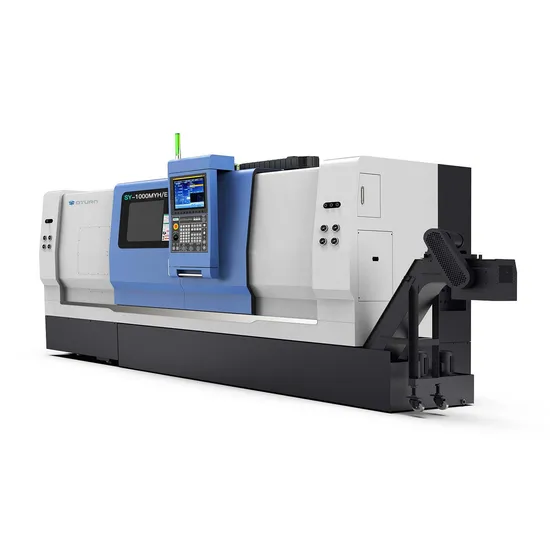

The machine adopts an optimized 30-degree inclined bed structure design, and has high precision, super rigidity and excellent cutting stability. High-strength HT300 cast iron one-piece strong structure bed, the application of finite element analysis, the overall mechanical rigidity and stability are excellent, and can maintain long-term reliable precision, improve processing stability and tool life, stress relief treatment improves precision stability, High-strength hard rail structure, the transmission system adopts screw pre-tensioning design to improve the performance of reflecting rigidity. Main features of this machine tool: 1. The spindle unit is an independent sleeve type. The spindle system has passed strict dynamic balance tests, with high precision, good precision retention, small thermal deformation, and good thermal stability. The maximum speed can reach 2500rpm, and the nose deflection accuracy is within 0.003MM. The front end of the shaft uses a large-diameter high-precision double-row roller bearing with a combined oblique contact ball bearing structure. The optimal span two-point balanced support design can withstand radial and axial loads, and can also be used for high-speed precision for users. Cutting can also be used for low-speed heavy cutting, especially suitable for mass production of products with complex shapes, high precision requirements, and high finish. 2. High rigidity servo power turret. It is helpful for the rapid and precise tool change performance of the servo turret, coupled with the power milling of the high-speed power shaft, to achieve the excellent processing capability of turning and milling. The tool holder is installed with a high-rigidity BMT installation interface. The power transmission shaft is driven by a servo spindle motor. 3. The machine tool is equipped with hard rail guide rails and ball screws, and the heat-treated and precision-ground ball screws can ensure the best Excellent precision and durability, each axis adopts direct transfer axis structure and double anchor pre-relay method, which can minimize thermal displacement and greatly improve machining accuracy. 4. This machine provides users with a complete hydraulic and lubrication system, using high-quality hydraulic pumps and hydraulic valves and other components, which greatly reduces the failure rate. The design of the hydraulic and lubrication system is simple and reliable. The machine tool adopts centralized quantitative automatic lubrication. 5. The hydraulic tailstock has a high rigid structure integral tailstock, which can eliminate vibration and provide excellent stability. The expansion and contraction of the sleeve is realized by the hydraulic cylinder, which is convenient, fast and reliable. 6. The Taiwan rotary chuck oil cylinder is adopted, and the automatic chip removal device is selected at the same time, which can greatly reduce the labor intensity of the operator and realize safe and efficient production. The above functional components can be controlled by programming. Special fixture. Product Parameters

Name	Unit	SY1000MYH/E
Max. swing diameter over bed	mm	Φ800
Max. processing diameter	mm	Φ520
Max. swing diameter over cross slide	mm	Ф500
Max. processing length	mm	790
Spindle nose	/	A2-8
Spindle bore diameter	mm	Ф87
Bar diameter	mm	Ф75
Max. spindle speed	rpm	2500
Spindle motor power	kw	26KW
Motor torque pulley ratio; 1:1.5	Nm	372/529
X/Z/Y travel	mm	310/850/120±60
X/Z Specification of shaft guide		Box way
X/Z Shaft motor torque	Nm	18.6
X/Z/Y motor power	KW	2.9/2.9/1.8
X/Z/Y axis moving fast	m/min	20/20/8
Positioning accuracy	mm	±0.005
Repeatability	mm	±0.003
Power turret	/	BMT65-12
Power turret motor	Kw	5.0/7.5
Max. speed of power tool holder	rpm	5000
The specification of outer diameter tool holder	mm	25x25
The specification of inner diameter tool holder	mm	Ф50
The adjacent tool change time	sec	0.2
Programmable hydraulic tail seat		Hydraulic
Max. stroke of tail	mm	930
Morse Slideway	type	Mosh5#
Sleeve diameter	mm	Ф100
Sleeve travel	mm	80
Machine size	m	3900*2270*2150
Machine Weight	kg	7200
Cutting fluid tank volume	L	250
Cutting water pump	kw	0.75
Hydraulic unit box volume	L	40
Hydraulic oil pump motor power	kw	1.5
Lubricant tank volume	L	2
Automatic lubrication pump motor power	W	50
Cooling water pump power	W	750
