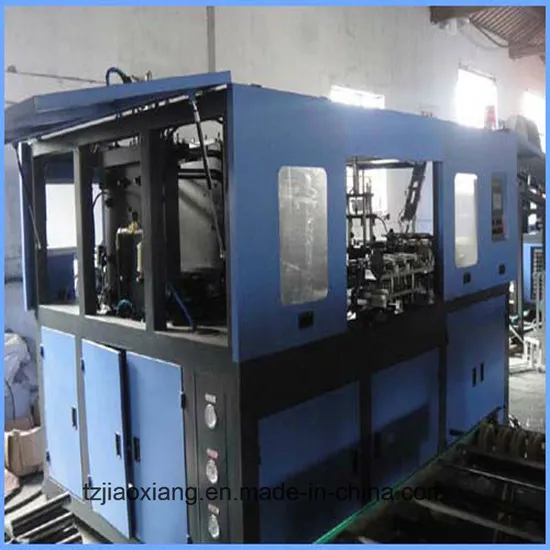

Pet Blowing Machine Including Blower
| US$7,100.00-23,800.00 | 1 Box (MOQ) |
Basic Info.
Model NO.
201805291098
Making Method of Parison
Injection Blowing
Automation
Automatic
Computerized
Computerized
Certification
ISO9001:2008
Condition
New
Application
Bottle
Main Blower
Assistant Blower
Blue
High-Speed
Voltage
380V/50Hz
Dimension
1650X610X1550
Weigth
800kg
Automatic
Yes
Transport Package
Wooden Boxes
Production Capacity
1000set/Year
Product Description
packing:under normal condition,the blow molding machine toabroad will be packaged in wooden case.delivery time : shipped in 30days after payment
| item | unit | JX-3L |
| theoretical output | pcs/hr | 1000 500 |
| max container volume | L | 2(2cavity) 3(1-cavity) |
| max neck diameter | mm | 90 120 |
| max container height | mm | 340 |
| mould thickness | mm | 100-180 |
| heat lamp amout | pcs | 170 |
| max heating power | kw | 14 |
| actual power consumption | kw | 6-8kw |
| working pressure | Mpa | 0.8 |
| Low pressure consuming | Ltr/min | 400 |
| measurement of main blower | mm | 1650x610x1550 |
| measurement of elevator | mm | 2180x600x1380 |
| weight of main blower | kg | 800 |
| moud stroke | mm | 170 |
| heat lamp amout | pcs | 28 |
supplier is responsible for the installation and commissioning and technical training,and the valid period is one year,if there are any matters with the machine,we will send our professional technial staff abroad to repair the machine, and at the same time,if you have any question about the machine,you can communicat with us, we are glad to anser you question as soon a possible.
company information
sales manager: jily
phone:+8613586000945
address:shangnian industry area,huangyan taizhou zhejiang china.
