Large Diameter Metal Rectangular Hollow Pipe Cutting Bender

Product Description

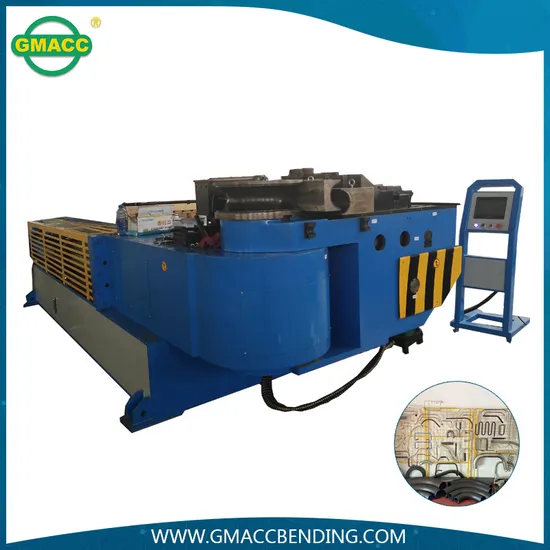

Large Diameter Metal Rectangular Hollow Pipe Cutting Bender
Machine Characteristic
Full hydraulic drove, PLC controlled with touch screen or text pipe bending machine, equipped with devices of pipe clamping, guide mould, mandrel, crease-resistant, assist pushing, pipe bending and so on. Under hydraulic operation, this professional, high speed and economic European pipe bending machine can bend various dimension both normal and abnormal shape metal pipes and bending angles are controlled by high precision imported encoder which ensures high precision of this machine.
Main Technical Parameter

Name	Unit	Parameter
Mild steel round tube	mm	114*10
Stainless Steel	mm	114*6
Light alloy annealed round tube	mm	114*12
Mild steel square tube	mm	90*90*8
Mild steel rectangular tube	mm	100*50*3
Mild steel round solid bar	mm	60
Mild steel square solid bar	mm	55*55
Min. bending radius	mm	40
Max. Bending radius(Standard)	mm	450
Head overhang (on bending centre)	mm	500
Head height (on bending centre)	mm	720
Bending centre height (from floor)	mm	1235
Max. Bending Angle	°	190°
Through Effective Distance	mm	4200
Bending Speed(Max.)	°/sec	20
Bending angle Precision	°	±0.10
System Motor Power	KW	15
Hydraulic Pump Volume	L	45
Max. Pressure	Mpa	16
L*W*H (Packaging Dimension)	mm	5200*1350*1250
Machine Weight	T	5.2

Configuration of Hydraulic and Electronic Control System

Name	Manufacturer
Hydraulic Motor	Germany Siemens(Beide)/Suzhou Jialifan
Hydraulic Pump	YUCI Yuken/Wuxi Tuoli
Hydraulic Valve	Japan Yuken(Imported)
Oil way Board	Taiwan Shanghong (Imported)
Cylinder	Shanghai Qifan
Oil tube	Suzhou Kejia
Touch screen	Taiwan Weinview(Imported)
PLC	Japan Mitsubishi(Imported)
Angle controller	Japan Nemicon(Imported)
Switch power	Taiwan Mingwei
Contactor	German SCHNEIDER(Imported)
Other Electric Parts	German SCHNEIDER,Omron, Taiwan SHILIN(Imported)

FAQ
1. Q: Are you manufacturer or trading company?
A: we are manufacturer,established over 20 years. We are focusing on pipe/tube/solid bar bending machines.
2. Q:Where is the nearest airport to your company?
A: Wuxi Airport or Shanghai Airport.
3. Q: How to choose the pipe/tube bending machines?
A: You have to inform us following details:
- Pipe Outdiameter Range
- Wall thickness range
- Bending Radius(Centerline radius)
- The pipe material
- how many bends on one piece of pipe
- detailed drawing if possible
4. Q: What certificate do you have?
A: We have both ISO and CE certificate.
5. Q:How about your service?
A: Before Sales Serive:
1. We will help our customer confirm the right machine model according to the offered pipe inforamtion.
2. Welcome to visit our factory to see our machine and our workshop before you place an order.

B: After Sales Service:
1. We provide manual book,detailed machine installation,commissioning video to help you correctly operate machine.If you need our engineer to go to your factory for machine installation, air tickets,food,hotel,local transportation should be at your
account.
2. If Any problems on machine,our engineer will solve for you through computer first,most problems can be solved by changing parts,if can't,our engineer can go to your factory to solve for you, we have experienced engineers for abroad market.
For mechanical parts, which were made by ourselves,we have plenty in our stock,if you need,we can send to you by courier at once.
For electronic parts, we all use famous brand, which you can buy it easily at your side.
