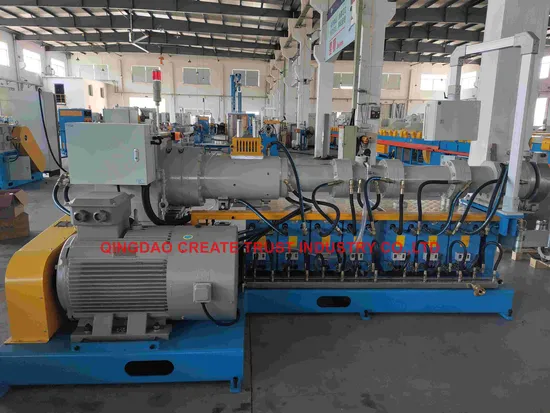

Hot Sale Rubber Extruder with PLC Automatic Control System (CE/ISO9001)

Product Description

Model No.: CX90E
Name : Rubber extruder,Rubber extruding machine,Rubber extrusion machine,Cold feeding rubber extruder,Hot feeding rubber extruder, Pin-barrel cold feeding rubber extruder.
Pin- barrel cold feeding extruders are mainly used for the extrusion of semi-finished articles during rubber processing.
It's equipped with different heads(and die) the extruder could be used for the production of tube,strip,cable/wire,rubber-coating,various semi-finished part of tires etc.

FEATURES:
1- The barrel and screw are made by nitriding steel (38CrMoALA), Surface is under nitrogen treatment, thickness ≥0.7mm, Hardness is HRC70.

2- The reducer is hardened gear teeth, and submerged oil lubrication,seal completely.
3- Hollow structure,Easy to control temperature,and no leakage after hydrostatic test , one hour -10kg/cm2.
4- We can supply four units temperature control system for head,body,screw . high precision to get a good products. BRAND is Eurotherm Ltd ,very famous.
Parameters below :

Sizes	Screw diameter (mm)	L/D	Rated power (KW)	Max. speed of screw (rpm)	Max. output (kg/h)
XJD-60(65)	Φ60(65)	12~16	22	80	150
XJD-90	Φ90	12~16	55~75	60	350
XJD-120	Φ120	12~16	75~110	50	850
XJD-150	Φ150	12~16	160~255	45	1500
XJD-200	Φ200	12~18	220~355	28	2600
XJD-250	Φ250	12~18	355~500	26	4200

Our factory working room:
Service of us
The production of all products are follow ISO9001:2008 organization system, from raw material processing to assembe and finally test running. even the packing, and delivery. Also we track the use of machine,installation, products producing technical ect.
All we do is for longterm cooperation , " CREATE TURST" !
