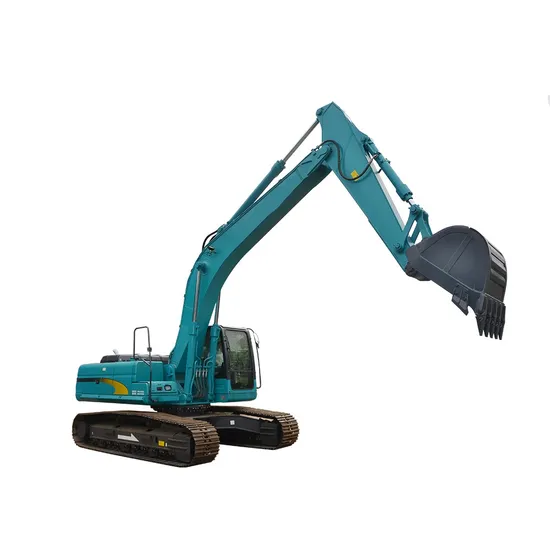

Sunward 13.5 Ton Swe135e Crawler Excavators with 0.6cbm Bucket
Basic Info.
Model NO.
SWE135E
Type
Crawler Excavator
Usage
Special Excavator
Bucket
Shovel
Transmission
Hydraulic Transmission
Drive Type
Diesel Drive
Bucket Capacity
0.5-0.7cbm
Size
Small-Scale
Certification
CE
Condition
New
Operating Weight
13500 Kg
Maximum Digging Height
8600mm
Maximum Digging Depth
5530mm
Max Digging Radius
8330mm
Rated Speed
5.7/3.5km/H
Max Digging Force( Bucket)
100kN
Rated Output Power
86/2200kw/Rpm
Rated Power Output
92kw
Total Track Length
2900mm
Platform Min. Slewing Radius
1800mm
Track Width
450mm
Track Height
690mm
Min. Slewing Radius
1780mm
Bulldozer Blade Length×width
2160X415mm
Wheel Spacing
2270mm
Transport Package
Standard Ocean Freight
Specification
7840*2490*2850mm
Trademark
Top brand
Origin
China
HS Code
8429521200
Production Capacity
500piece/Year
Packaging & Delivery
Package Size
784.00cm * 249.00cm * 285.00cm
Package Gross Weight
13500.000kg
Product Description
product title
SUNWARD Medium Excavator 13.5ton Heavy Equipment SWE135E
Product Description
The standard automatic idle function can automatically reduce and increase the speed according to the load, reduce the fuel consumption during the idle period, save the fuel cost for the customer, and optimize the radio with technology function. The wider lower frame makes the whole vehicle stable and the proportions are harmonious and unified. The cover part has a large opening range and a magnificent shape.
All kinds of filter element maintenance parts are easy to maintain on the ground, and the working device can complete the butter filling with one gesture.
Product Parameters
| Bucket capacity | m³ | 0.6 | |
| Operating weight | kg | 13980 | |
| Dimension parameters | Wheel spacing | mm | 2270 |
| Total track length | mm | 2900 | |
| Ground clearance of platform | mm | 800 | |
| Platform min. slewing radius | mm | 1800 | |
| Chassis width | mm | 2250 | |
| Track width | mm | 450 | |
| Chassis clearance from the ground | mm | 400 | |
| Track height | mm | 690 | |
| Total length | mm | 6140 | |
| Total height | mm | 2653 | |
| Total width | mm | 2130 | |
| Working range | Max. digging height | mm | 7280 |
| Max. discharging height | mm | 5240 | |
| Max. digging depth | mm | 4000 | |
| Max. vertical digging depth | mm | 3290 | |
| Max. digging radius | mm | 6440 | |
| Max. digging reach at ground level | mm | 6265 | |
| Max.lifting height of bulldozer | mm | 395 | |
| Maximum digging depth of bulldozer | mm | 410 | |
| Min. slewing radius | mm | 1780 | |
| Bulldozer blade length×width | mm | 2160X415 | |
| | Rated output power | kW/rpm | 86/2200 |
