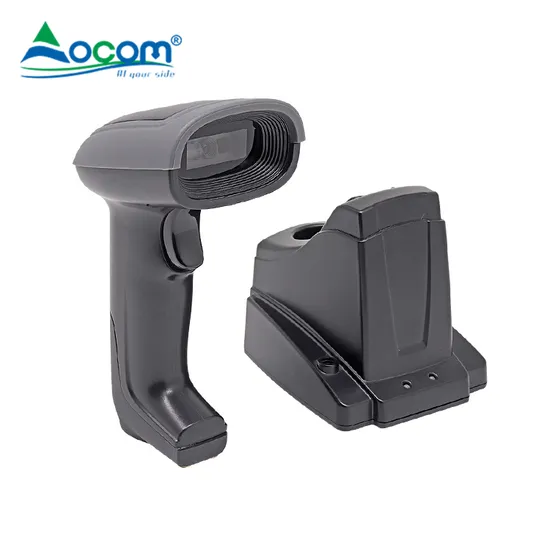

High Speed Scanner Qr Code Reader Wireless Scanner
Basic Info.
Model NO.
OCBS-W234
Kind
Manual, Auto-Sensing,Continuous Scanning
Scan Speed
400 Scans/Sec
Scanning Light Source
LED
Usage
Barcode Scanner
Network Scanning
Support Network
Interface Type
USB
Scanning Element
CMOS
Optical Resolution
N/a
Application
Commercial Application
Transport Package
Carton
Specification
52*30*48/20pcs
Trademark
OCOM/OEM/NEUTRAL
Origin
Shen Zhen, China
Production Capacity
50000 PCS/Year
Product Description
Android Scanner Bluetooth or 2.4G Wireless 1/2D Barcode Scanner (M/N:OCBS-W234) Features: Standard Long distance 2.4GHz Communication Unblocked can transmit 80 meters 1 million pixel high precision scanning engine 190mA low power design can scan 40,000 times Can work for more than 12 hours in a fully charged state Standard charging and receive base Big wireless buffer can transfer 1000 characters| General | |
| Model | OCBS-W234 |
| Material | ABS+PC+TPU |
| IP level | ≥IP54 |
| Wireless Method | 2.4GHz |
| Setting Mode | Manual, Auto-sensing,Continuous Scanning |
| Prompting Mode | Buzzer ,Indicator light(LED) |
| battery | 3.7V 2000mAH 18650 battery |
| Charging time | 6.5hours |
| Fully working time | >12 hours |
| Power supply | DC 5V ±5% |
| Operating current | 190mA(operating mode) |
| Electrostatic Protection | 15KV |
| Shock Resistance | 1.5M free fall on concrete surface |
| Performance | |
| Scanning Speed | 400times/sec |
| Scan Width | 5 * 5 cm² -- 30 * 30 cm² |
| Light Source | Red LED Aim +white light LED |
| Transmission distance | 50-80M |
| Error rate | 1/500million |
| Storage | 2M(about 40000 pieces barcodes )(can be customized) |
| Resolution | Code39 5mil, QR 8.7mil, PCS45% |
| Print Contrast | Min 35% |
| Scanning Angles | Roll 0-360°, Pitch±65°, Yaw±60° |
| Decoding ability | Codabar,Code11,Code39/Code93,UPC/EAN,Code128/EAN128,InterLeaved2of5,Matrix2of5,MSI CODE,Standard2of5. QR CODE,DATA MATRIX, PDF417 |
| Depth of scan field | 5MIL CODE39: 5--12 CM,15MIL CODE39 : 4--25 CM 10MIL CODE93 : 4--21 CM,15MIL UPC/EAN: 4--25 CM 20MIL QR : 4--25 CM |
| Physical | |
| Weight | Gross:500g |
| Package | 210*130*95mm |
| 20 in 1 carton | 500*280*460mm/11.0kg |
| Environment | |
| Working temperature& humidity | 0 to 45 degrees centigrade, 10%~80% No condensation |
| Storage temperature& humidity | -20 to 60 degrees centigrade , 10%~90% No condensation |
