Basic Info.
Structure
Radial Drilling Machine
Controlling Mode
Artificial
Certification
GS, CE, ISO 9001
Maximum Driling Diameter (mm)
50
Spindle Speed Range (RP.M)
25-2000
Lifting Motor Power (Kw)
1.5
Overall Dimensions(mm)
2500X1070X2840
Transport Package
Export Wooden Cases
Specification
2500x1070x2840mm
Packaging & Delivery
Package Size
2500.00cm * 1070.00cm * 2840.00cm
Package Gross Weight
3500.000kg
Product Description
Product Description
Main technical parameters | Z3050X16/1 |
Maximum driling diameter (mm) | 50 |
Distance from spindle end face to worktable(mm) | 320-1220 |
Distance from spindle center to column generatrix(mm) | 350-1600 |
Spindle travel (mm) | 315 |
Spindle taper (Morse) | 5 |
Spindle speed range (rp.m) | 25-2000 |
Spindle speed series | 16 |
Spindle feed weight range (mp.m) | 0.04-3.2 |
Spindle feed series | 16 |
Rocker arm rotation angle (°) | +180° |
Main motor power (kw) | 4 |
Lifting motor power (kw) | 1.5 |
Machine weight (kg) | 3500 |
Overall dimensions(mm) | 2500x1070x2840 |

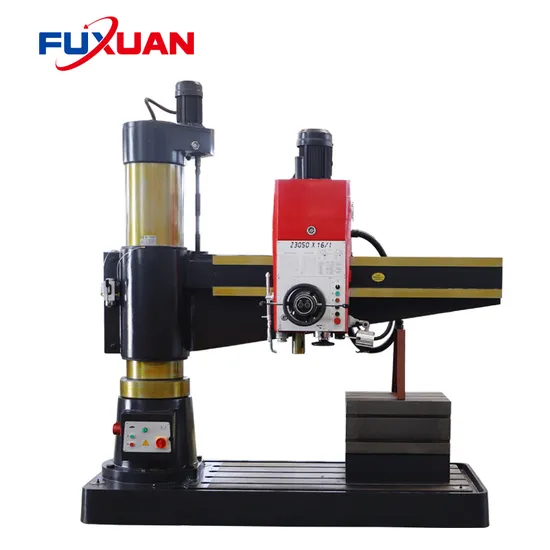

The Z3050 radial drilling machine has a drilling diameter of 50mm, which is mainly composed
of a base, an inner column, an outer column, a rocker arm, a headstock, and a workbench. The
inner column is fixed at one end of the base, and an outer column is sleeved on the outside of
it, and the outer column can rotate 360 degrees around the inner column. One end of the rocker
arm is a sleeve, which is sleeved on the outer column to move up and down. Because the
screw rod and the outer column are connected as a whole, and the lifting nut is fixed on the
rocker arm, the rocker arm cannot rotate around the outer column, but can only rotate around
the inner column together with the outer column.
FAQ
Q1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact
model .You can also send us the products drawing ,we will choose the most suitable machines for you .
Q2: Where is our factory located? How can I visit there?
A : Our factory is located in No. 988, Xingteng East Road, Economic and Technological Development Zone,
Tengzhou City, Shandong Province, China.
Q3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
Q4: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Before we delivery the
machine, we will send machine photo and video for you to confirm.
Q5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
Q6.the warranty?
The warranty is one year. If the machine have any problem due to our reason, we will send spare parts for
you within 48 hours.
