Tck56y Inclined Bed Turning Cutting Drilling Milling Metal CNC Lathe Machine
| US$35,000.00-58,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
TCK56Y
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
System
Numerical Control
CNC
Processing Precision
0.008
Performance Classification
High-End CNC Machine Tools
Certification
GS, CE, ISO 9001
Condition
New
Spindle Bore
65mm
Motor
22/30kw
Spindle Speed
50-4500rpm
Boring Tool Holder
32/40mm
Chuck Size
8′′ Hydraulic
Turret
12 Station Power Turret
Tailstock
Hydraulic
Max.Swing Over Bed
560mm
Processing Length
550
Transport Package
Wooden Case
Specification
28.5CBM
Trademark
BST
Origin
China
HS Code
8458110090
Production Capacity
2000/Year
Packaging & Delivery
Package Size
510.00cm * 223.00cm * 250.00cm
Package Gross Weight
5500.000kg
Product Description
Product Description

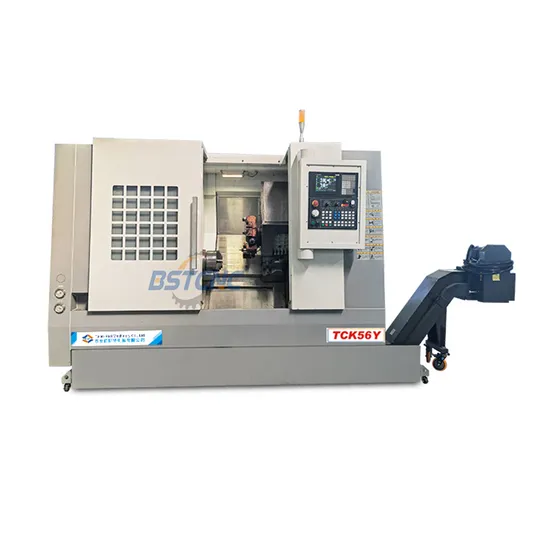

The Machine Tool is slant bed Turn-Milling Machine, which has X, Y, Z, C axis, and controlled by servo motor. It has a compact and reasonable structure, the spindle (C axis) driven by servo motor. This machine not only can turn excircle, end face, thread of Rod type and Plate type work piece in kinds of material, but also can mill, drill kinds of radial and axial hook face, etc. many kinds processes. This machine is suitable to process small work piece in a high efficient.
TCK56Y SPECIFICATION AND PARAMETER:
| Item | Unit | Specification | Remark | |
| Max.swing diameter over bed | mm | 560 | ||
| Max.processing length | mm | 400 | ||
| Max. processing diameter | mm | 300 | 12-station power turret | |
| Spindle head form | A2-6 | Motor spindle | ||
| Spindle bore | mm | 65 | ||
| Hole through spindle bore | 50 | |||
| Main spindle | Spindle speed range | r/min | 50~4500 | |
| Spindle torque | 144N.m | |||
| Main motor power | KW | 22/30KW | ||
| Travel | Max. travel of X/Z/Y/C | mm | 200/550/±35/360° | |
| Rapid speed of X/Z/Y/C | 30/30/12/200m/min | |||
| Tailstock travel | mm | 450 | ||
| Tailstock sleeve travel | mm | 100 | ||
| Tailstock sleeve taper | MT5 | |||
| Turret | Size | BMT40-ER20 | ||
| Type | 12 station power turret | |||
| Speed range | 4000rpm | |||
| Cutting Tool size | Outer circle cutting tool | mm | 20×20 | |
| Boring tool diameter | mm | Ф25/Ф20 | ||
| Live toolholder | mm | BMT40-ER20 | ||
| ATC choose the nearest tool | Yes | |||
| Max. load | Disc Workpiece | kg | 200(with chuck and other accessories ) | |
| Shaft workpiece | kg | 500(with chuck and other accessories ) | ||
| Weight | kg | 3800 | ||
| Machine size(LxWxH) | mm | 2800×1900×2300 | ||
Standard configuration: Optional configuration:
-GSK988TA control system; -Siemens808D,Fanuc0i-TF,Syntec22TA,Mitsubishi;
-3 jaws 8''hydraulic chuck with hydraulic station; -3-jaws 10'' hydraulic chuck;
-12 station power turret BMT40; -12 station Power turret BMT45;
-Hydraulic tailstock; -Chip conveyor ;
-Auto servo bar feeder and parts catcher;
