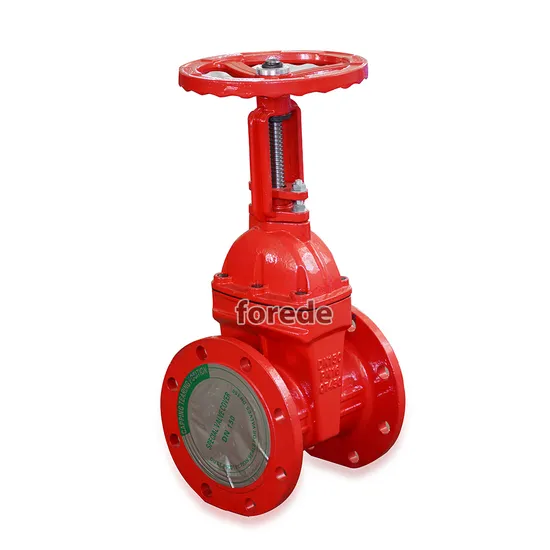

Flange End Rising Stem Ductile Iron Gate Valve

Product Description

Product Description Forede Ductile Iron PN16 Gate Valve For Water is widely used in various industries such as water supply and drainage, sewage treatment, construction of building, industry environmental protection, food production, medicine, chemical, paper making, ship building, oil etc for open/close or regulation of various non-corrosive or corrosive fluid, gas, powder pipeline.

Flange	ANSI 150LB/BS 5404/JIS 10K
Size	DN50-DN400
Stem material	2CR13 Stainless steel
Body material	Ductile Iron, QT450
Hand wheel material	Ductile Iron, QT450
Surface	Epoxy powder, red or blue

* Any requirements or questions just contact to supplier * Products accept OEM & ODM

Model Number	Inch	mm	Connection	Valve Type	Working Pressure	Color
Z41X-16Q-50	2	50	Flange End	OS&Y	1.0/1.6Mpa	Red/Blue
Z41X-16Q-65	2.5	65	Flange End	OS&Y	1.0/1.6Mpa	Red/Blue
Z41X-16Q-80	3	80	Flange End	OS&Y	1.0/1.6Mpa	Red/Blue
Z41X-16Q-100	4	100	Flange End	OS&Y	1.0/1.6Mpa	Red/Blue
Z41X-16Q-125	5	125	Flange End	OS&Y	1.0/1.6Mpa	Red/Blue
Z41X-16Q-150	6	150	Flange End	OS&Y	1.0/1.6Mpa	Red/Blue
Z41X-16Q-200	8	200	Flange End	OS&Y	1.0/1.6Mpa	Red/Blue
Z41X-16Q-250	10	250	Flange End	OS&Y	1.0/1.6Mpa	Red/Blue
Z41X-16Q-300	12	300	Flange End	OS&Y	1.0/1.6Mpa	Red/Blue
Z41X-16Q-350	14	350	Flange End	OS&Y	1.0/1.6Mpa	Red/Blue
Z41X-16Q-400	16	400	Flange End	OS&Y	1.0/1.6Mpa	Red/Blue

Model Number	Inch	mm	Connection	Valve Type	Working Pressure	Color
Z41X-16Q-50	2	50	Flange End	OS&Y	1.0/1.6Mpa	Red/Blue
Z41X-16Q-65	2.5	65	Flange End	OS&Y	1.0/1.6Mpa	Red/Blue
Z41X-16Q-80	3	80	Flange End	OS&Y	1.0/1.6Mpa	Red/Blue
Z41X-16Q-100	4	100	Flange End	OS&Y	1.0/1.6Mpa	Red/Blue
Z41-16Q-125	5	125	Flange End	OS&Y	1.0/1.6Mpa	Red/Blue
Z41X-16Q-150	6	150	Flange End	OS&Y	1.0/1.6Mpa	Red/Blue
Z41X-16Q-200	8	200	Flange End	OS&Y	1.0/1.6Mpa	Red/Blue
Z41X-16Q-250	10	250	Flange End	OS&Y	1.0/1.6Mpa	Red/Blue
Z45X-16Q-300	12	300	Flange End	OS&Y	1.0/1.6Mpa	Red/Blue
Z45X-16Q-350	14	350	Flange End	OS&Y	1.0/1.6Mpa	Red/Blue

Detailed Photos
FAQ Q.What's the MOQ of your products?A:Our MOQ is one (1) piece/set.Q.What's your payment terms?A:We accept T/T, L/C, Western Union, Paypal,etc.Q. How long is the delivery time?A: Usually around 15 days after payment.Q.Do you have technical support?A: Yes, we have a professional engineering team.Q.Do you have warranty?A:Yes, all products have one year warranty.Q.Can you accept OEM?A:Yes, we do customized design for our clients.
