High Efficiency Heat Pipe Solar Thermal Water Collector

Product Description

Working principle:
The inside of the glass tubes are coated with a special black absorber that absorbs nearly all the energy of the sunlight falling on it. The aluminum wings transfer the heat energy to the heat pipe.
The liquid in the heat pipe boils and the steam travels up to the top of the heat pipe. The top bulb of the heat pipe (the condenser bulb) is in contact with Header Piper, which causes the vapour to condense.
The drops of condensed liquid then drip down the heat pipe. This cycle repeats so long as sunlight keeps heating the pipe and the top of the pipe is cool enough to condense the vapour.
Feature:
1) Use three target AL/N-SS/CU coating glass vacuum tube
2) Anti-freeze copper heat pipe, can working under cold climate
3) With Rock wool insulation
4)Anodized Aluminum 2.0mm thickness for both Manifold and frame
5)Working pressure 0.6MPA
6) Easy installation and free maintenance
7) Each tube working independently ,even one tube broken, the whole system still work
8) Hail resistance reach 25mm

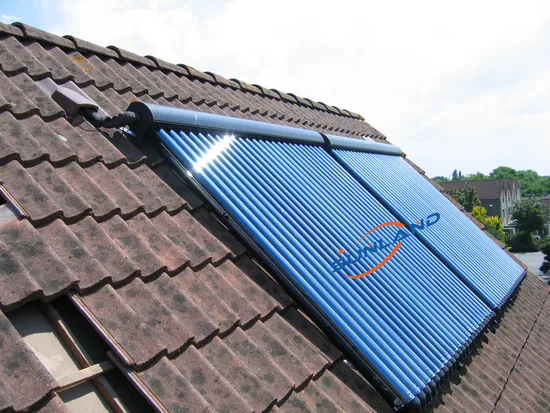

9) Flexible installation by both flat and inclined roof
10)Suitable for multiple applications such as hot water tanks, radiators and in floor heating.

Model	Vacuum Tube			Supply hot water (L)	Aperture Area (m2)	Container(Sets)
	Diameter(mm)	Length(mm)	NO.
						20GP	40GP
ST-58/1800-15HT	58	1800	15	130	1.4	103	206
ST-58/1800-18HT	58	1800	18	160	1.67	82	164
ST-58/1800-20HT	58	1800	20	170	1.86	78	156
ST-58/1800-24HT	58	1800	24	200	2.23	71	142
ST-58/1800-30HT	58	1800	30	250	2.79	57	10
