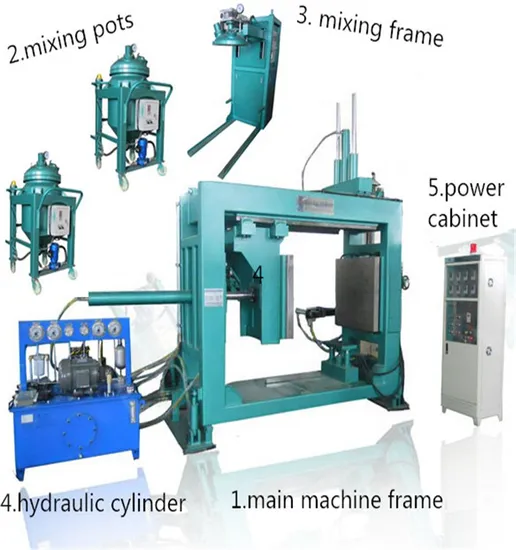

APG Clamping Machine

Product Description

Product Description
1. Use:
The APG device is controlled by the human-machine interface, the template size can be customized, and can support two sets of molds produced together, greatly improve production efficiency, especially for products with simple structure, such as insulators, bushings, sensors, etc.
The APG equipment is controlled by PLC system, man-machine interface, template size can be customized, temperature, pressure can be set, flow rate, pressure holding time, automatic boot, automatic heating, automatic filling, multi-level administrator control, and can save products parameter, automatic cycle production, can save hundreds of product parameters, greatly convenient user production, improve product efficiency and product quality.
Application
1. Pole mounted distribution transformer pressure gelation molding machine is applicable for electric resin epoxy products such as transformer, 12KV-1250A, contact box, 40.5KV bushing, bending plate, upper and lower shell of SF6 insulating cover,etc.
2. Pole mounted distribution transformer pressure gelation molding machine is large and medium-sized equipment, mould plate is 800*600mm, length of upper and lower core-pulling stroke can be determined according to the product
This machine is full automatic,Servo and PCL touch screen control. Machine, the clamp plate size can customized, greatly improved efficiency and product quality. Advantages:
1. Servo motor control
2. PLC touch screen Control
3. Can save more than 100 product datas.
4. Fully automatic design
Auto start machine&heating clamp plate
Auto setting hydraulic pressure
Auto setting heating temperature
Auto setting valve flow
*Machine Technical Parameters

Clamp Plate Size

1000*1200mm
