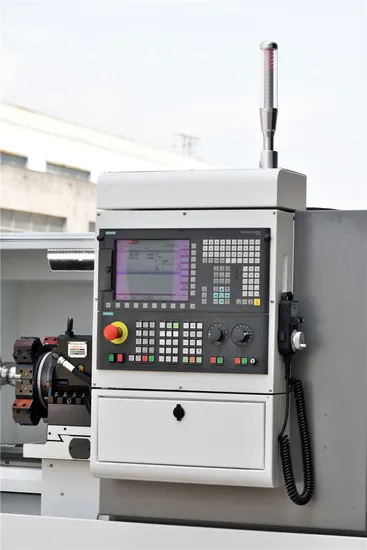

OEM Floor-Type Horizontal Heavy Duty Chuck Swiss Type CNC Lathe Machine
| US$22,000.00-32,000.00 | 1 SET (MOQ) |
Basic Info.
Model NO.
CK6166
Guide Rail
Horizontal Guide Rail
Tool Holder
4-Way Tool Post
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Max Swing Over Bed
530mm
Spindle Bore
105mm or 80mm
Tool Post Stations
32*32mm
Spindle Speed
27~135 55~270 160~805 325~1630 R/Min
Power of Main Motor
11 Kw
Transport Package
Export Wooden Case(Heat Treated)
Specification
CE, ISO9001, SGS
Trademark
KD
Origin
Zhejiang China
HS Code
8458110000
Production Capacity
1100sets/ Year
Product Description
OEM Floor-Type Horizontal Heavy Duty Chuck Swiss Type CNC Lathe MachineProduct Description
Product Specifications
| ITEMS | CK6166 | CK6156 |
Max. swing over bed | Ø 660 mm | Ø 560 mm |
Max. swing over carriage | Ø 430 mm | Ø 330 mm |
Width of bed | 405 mm | |
Maximum turned length | 750/1000/1500/2000/3000 mm | |
Max. turning length | 650/900/1400/1900/2900mm | |
Spindle nose | D8 | A2-8 |
Spindle bore | Ø 105 mm | Ø 80 mm |
Cone hole diameter and taper of spindle hole | Ø 113 1: 20 | MT. No. 7 |
Steps of spindle speed(Manual) | 4 (Variable Within Each Step ) | |
Range of spindle speed | 27~135 55~270 160~805 325~1630 r/min | |
Rapid feed for Axis Z | 10m /min | |
Rapid feed for Axis X | 8 m /min | |
Max. travel of Axis Z | 720/970/1270/1970/2970mm | |
Max. travel of Axis X | 365 mm | 320 mm |
Min. input | 0.001 mm | |
Tool post stations | 4-ways or 6-ways | |
Tool cross section | 32× 32 mm | |
External diameter | Ø 75 mm | |
Taper of bore | MT. No. 5 | |
Max. Traverse | 150 mm | |
Power of main motor | 11 KW | 7.5 KW |
Power of cooling pump | 90W | |
Overall dimensions(L× W× H) | 2250/2500/3000/3500× 1250× 1580 mm | 2250/2500/3000/3500/4500× 1200× 1520 mm |
Net weight | 2800/3100/3700/4300/5300 kg | 2700/3000/3500/4000/4600 kg |
