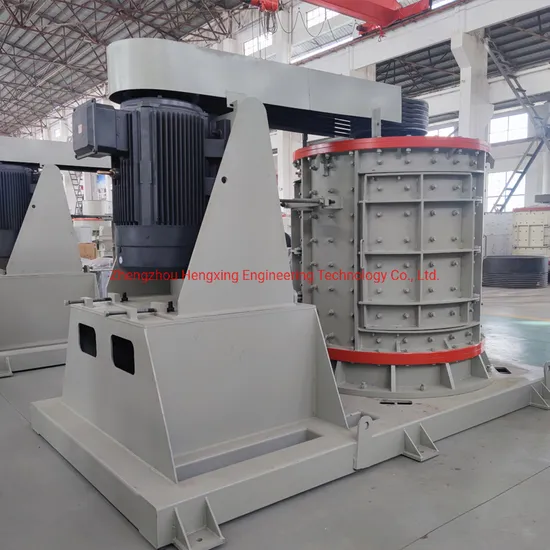

Vertical Compound Crusher Multi Layer Hammer River Pebble Sand Making Compound Crushing Equipment

Vertical Compound Crusher Multi Layer Hammer River Pebble Sand Making Compound Crushing Equipment

US$7,500.00 1 set (MOQ)

Basic Info.

Model NO.
PFL1500
Type
Hammer Type Crusher
Application
Mineral Industry, Stone Industry
Drive
Electric
Crushing Style
Grinding & Impact
Compressive Strength (For Crushing)
250-300MPA
Crushing Degree
0-15mm
Finished Surface
Outer Surface Process
Certification
CE, ISO
Condition
New
Color
Iron Grey
Drawing
Provide
Motor Brand
China Top Brand
Colour
as Request
Capacity
5-100tph
Feed Size
50-100mm
Discharge Size
0-5mm
Transport Package
Water Proof by Sea
Specification
PFL800, PFL1000, PFL1250, PFL1500, PFL1750
Trademark
Hengxing
Origin
China
HS Code
8474209000
Production Capacity
100 Sets Per Year

Product Description

Vertical compound crusher Multi layer hammer river pebble sand making compound crushing equipment PFL vertical compound crusher, vertical combination crusher combining with the optimized fine crushing techniques at home and abroad, is used to crush various medium-hardness ores. It is mainly applied to crush the materials whose compression strength is less than 140MPa and humidity is less than 15%, such as limestone, clinker, coal, and other ores in building material industry, mining, metallurgy, and chemical engineering.
it is new type of compound crusher ,The hammers are different with common vertical compound crusher .
Vertical compound crusher Working principle:
The material in the upper part of the machine is perpendicular drop into the high speed rotating impeller, and under the high speed centrifugal force, it produces high speed impact and comminution with the other part of the material which distributes in the shape of umbrella around the impeller vertical composite crusher. The impeller and the housing will be crushed by swirl impact and friction between the impeller and the housing for many times, which will be discharged directly from the bottom, forming a closed circuit multiple cycles, and controlled by the screening equipment to achieve the required product size.
Vertical compound crusher Features:
1. High crushing rate; less noise, pollution, and abrasion; convenience in maintenance.
2. Having the fine crushing and coarse grinding functions.
3. Applied to crush medium-hardness and very hard materials.
4. Having obvious superiority in crushing the materials with high humidity.
Vertical compound crusher technical specifications :
Model Rotor diameter
(mm)
Cylinder height
(mm)
Main shaft rotation speed
(r/min)
Feeding size
(mm)
Discharging size
(mm)
Capacity
(t/h)
Motor power
(kw)
Dimension
(LxWxH mm)
Weight
(t)
800 650 800 1350 50 0-5 5-15 30 2200*860*1980 2.3
1000 800 850 970 70 0-5 10-30 55 2700*1160*2000 4.5
1250 1000 850 740 100 0-5 20-60 75 2800*1400*2730 9.7
1500 1250 1000 650 100 0-5 30-80 110 3350*2100*2800 18.1
1750 1560 1410 600 100 0-5 40-100 132 3100*1900*2300 26.6

For Any Inquiry , Please contact us directly with Following information : 1. What kind of stone be crushed ? Limestone ? Granite ? Basalt ? or which kind ? 2. The general sizes of stones before crsuhing 3. The Sizes of Required final products ? For Mining ? For Construction ? 4. Capacity ? ___ T/H or ____ CBM/H
