6300kN Customized Injection Molding Machinery for Plastic Parts

6300kN Customized Injection Molding Machinery for Plastic Parts

US$96,500.00
1-2 Sets
US$96,000.00
3-4 Sets
US$95,500.00
5+ Sets

Basic Info.

Model NO.
NT-1063
Type
Preform Injection
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
ISO9001:2008
Product Name
Plastic Injection Molding Machine
Machine Type
Horizontal/Hydraulic/Electric
Application
Plastic Industry
Operating Langauge
English/ Customization
Auxiliary Equipment
Robot Arm/Chiller/Crusher/Auto Loader.etc
Delivery Time
45-60 Days
Shipping Method
Full 20gp/40gp/40hq Container
Transport Package
at Seller′s Option
Specification
6300KN
Trademark
LEANTALL
Origin
China
Production Capacity
20sets/Month

Packaging & Delivery

Package Size
1100.00cm * 250.00cm * 300.00cm
Package Gross Weight
30000.000kg

Product Description

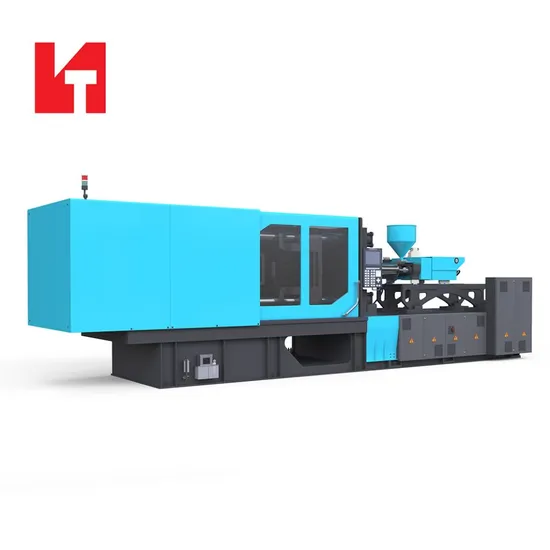

630 Ton Plastic Injection Molding Machine
High-Performance Plastic Injection Molding Machine This state-of-the-art machine consists of four main systems: a plasticizing system, an injection system, a clamping system, and a transmission system.
At Fuzhou Leantall Technology Co., Ltd, we have revolutionized injection molding with advanced die-casting technologies. Our machines integrate mechanical, hydraulic, and electric control systems for comprehensive enhancements, delivering the perfect blend of dynamic pressure casting and unparalleled speed.
To enhance production stability and ensure energy efficiency, especially for medical products like syringes, we have integrated an infrared heating coil and a servo motor system into our standard injection molding machine.
This innovative approach guarantees precision, reliability, and cost-efficiency in your manufacturing processes.

Item
Unit		 NT580 NT630 NT750 NT900 NT1180
SCREW DIAMETER mm 75 80 85 90 90 95 100 105 90 95 105 110 95 100 105 105 115 125 135
SCREW L/D RATIO L/D 22.7 21.3 20 19 22 21 20 19 23 22 20 19 22 21 20 23.8 21.7 20 18.5
INJECTION STROKE mm 390 390 390 390 400 400 400 400 460 460 460 460 470 470 470 555 555 555 555
INJECTION SPEED Mm/sec 88 88 88 88 80 80 80 80 81 81 81 81 84 84 84 65 65 65 65
SHOT VOLUME(THEORETICAL) CM3 1723 1960 2213 2481 2544 2835 3141 3463 2926 3260 3983 4371 3331 3691 4069 4805 5764 6810 7943
INJECTION WEIGHT(PS) g 1568 1783 2013 2257 2315 2579 2858 3151 2662 2966 3624 3977 3031 3358 3702 4372 5245 6197 7228
INJECTION PRESSURE Mpa 186 164 145 129 180 162 146 132 195 175 143 131 189 171 155 207 173 146 125
INJECTION RATE cm3/sec 388 442 499 560 508 567 628 692 515 574 701 769 595 659 727 526 675 797 930
SCREW SPEED rpm 136 116 109 120 98
CLAMP FORCE Kn 5800 6300 7500 9000 11800
OPEN STROKE mm 850 905 1000 1100 1180
SPACE BETWEEN TIE BARS mm×mm 860*860 925*875 1020*970 1250*1085 1180*1100
MAX.MOULD HEIGHT mm 830 900 960 1100 1250
MIN.MOULD HEIGHT mm 330 330 400 500 500
EJECTOR STROKE mm 226 295 340 335 325
EJECTOR FORCE Kn 150 150 210 216 245
EJECTOR NUMBER N 13 21 17 17 21
MAX.PUMP PRESSURE Mpa 16 16 16 16 16
SEVRO DRIVE POWER Kw 55 45+30 45+37 45+45 55+37
HEATING POWER Kw 33.5 42.8 46 48.5 68.5
MACHINE DIMENSION(L*W*H) m×m×m 8.6*2.3*2.6 10.2*2.2*2.7 11*2.4*3.2 11.3*2.65*3.4 12.5*2.65*3.5
MACHINE WEIGHT(ESTIMATE) T 21 30 35 40 54

ADVANTAGES
1. Clamping Unit

Reliable 5-pint twin-toggle locking mechanism; Platens are designed under Finite-Element Analysis; High-speed clamping is stable while low-pressure protection is accurate; Automatic lubrication system; Oil shortage alarm; Ejector stroke precisely controlled by transducer; Plenty of ejector modes for you to choose.



2. Injection UniT
Double-cylinder balance injection system; Shot weight is precisely controlled by transducer; Using a hydraulic motor to carry out variable speed.

3. Hydraulic Unit
Domestic high-tech divided hydraulic system; Hydraulic safety device; and Imported high-quality hydraulic components are applied.



4. Electric Unit

Special controller for plastic injection molding machine; All the main components are imported from famous companies, for example, TE(France), Gefran(Italy), etc.


Q: Are you a manufacturer or trading company? A: We are a manufacturer with decades of experience, located in Zhejiang province. Q: What is the product range? A: Focus on the manufacturing and developing plastic injection molding machines and their auxiliary equipment such as robot arms, cooling towers, chillers, etc. Q: Where is your main selling market? A: We have business domestically, in the USA, Russia, Indonesia, Egypt, Turkey, Uzbekistan, Pakistan, etc. Q: Will you offer field installation and operator training at the buyer's factory? A: Yes, we will arrange our skilled engineers for field installation and training. Q: What is the delivery time(equipment production time)? A: It will be ready around 50 days after getting mutual confirmation about the order details and prepayment. Q: Do you also have the source for molds and spare parts? A: Yes, we can offer competitive quality and reasonable prices. Customized as required. Q: What is the standard of the package? A: Wooden case packing for the auxiliary equipment, and bare packing for the plastic injection molding machine. Full container shipment is highly suggested.
