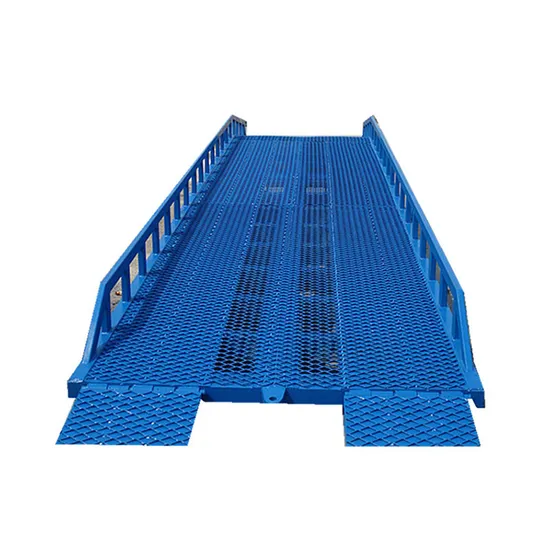

Hydraulic Container Loading Dock Ramp for Forklift Mobile Yard Ramp
Basic Info.
Model NO.
DR6-6
Application
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism
Screw Lift
Carrying Capacity
Weight Level
Moves
Moving
Driven Type
Hydraulic
Running Mode
Moving
Feature
Explosion-Proof, Insulating
Certification
CE, RoHS, ISO 9001
Transport Package
Wooden Box
Specification
customized
Trademark
DAAILIFT
Origin
China
Product Description
| Model No. | EDR-6 | EDR-8 | EDR-10 | EDR-12 |
| Load Capacity (t) | 6 | 8 | 10 | 12 |
| Platform Size (mm) | 11000*2000 | |||
| Overall Size(mm) | 11000*2000*1400 | |||
| Lifting Height(mm) | 1000~1800 | |||
| Lip Width (mm) | 400 | |||
| Tail Board Length (mm) | 800 | |||
| Operating | Manually | |||
| Platform Materials | 3mm checked steel plate +7mm steel screen | |||
| Lip Materials | 14mm Q235B plate | |||
| Tyre | 500-8 solid tyre | |||
| Cylinder Pin | 45# Ø50 rod steel*4 | |||
| Lifting Hydraulic Cylinder | HGS series Ø80/45*2 | |||
| Lip Hydraulic Cylinder | HGS series Ø40/25 | |||
| Hydraulic Oil Pipe | Double wire mesh high pressure tubing 2-10-43MPa | |||
| Hydraulic Oil | ML series antiwear hydraulic oil 6L | |||
| Net Weight(kg) | 2450 | |||
