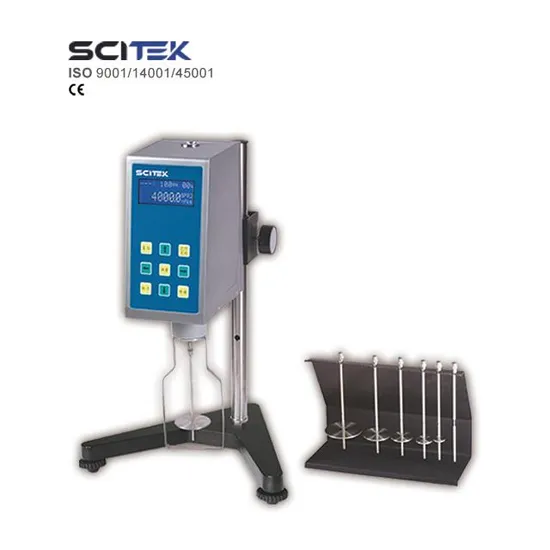

SCITEK Portable Digital High Temperature Testing Equipment Rotational Viscometer Viscosity Meter
| US$1,700.00-2,300.00 | 1 unit (MOQ) |
Basic Info.
Model NO.
VSC-LDV2H
Accuracy
1%(FS)(Newtonian Fluid)
Viscometer Type
Rotary
Test Density
Light
Viscometer Reproducibility
±0.5%
Viscometer Rotor Number
4
Viscometer Rotor Speed
0.1 ~ 200RPM
Viscometer Rotor Specifications
4 Size
Measuring Range
5-1M
Rotating Speed
0.1 ~ 200RPM
Number of Spindles
4 types (21, 27, 28, 29)
Sample Capacity
10~20ml
Temperature Control Range
RT+5~300
Temperature Control Accuracy
0.1 Degree
Display
LCD screen
Transport Package
Standard Export Package
Specification
VSC-LDV2H
Trademark
SCITEK
Origin
China
HS Code
9027899090
Production Capacity
100 Units/Months
Packaging & Delivery
Package Size
40.00cm * 35.00cm * 56.00cm
Package Gross Weight
15.000kg
Product Description
Product DescriptionViscometer Features:
DV-H series digital high temperature viscometer products below are composed of viscometers and special temperature-controlled heaters. They are used to measure hot melt adhesive, asphalt, paraffin, high polymer, etc. dissolved after heating and can directly display the measurement data. DV-2H series products can display shear Rate and shear stress. Some products can be equipped with optional data collection analysis and drawing software to collect and analyze data, display and record the viscosity-temperature curve throughout the process. The product measurement performance has achieved the international advanced level
Product Parameters
Viscometer Specifications:
| Series | DV-1H | DV-2H | ||||
| Model | VSC-LDV1H | VSC-RDV1H | VSC-HDV1H | VSC-LDV2H | VSC-RDV2H | VSC-HDV2H |
| Measuring Range(mPa·s) | 10~1M | 100~10M | 800~80M | 5~1M | 50~10M | 400~80M |
| Rotating Speed (RPM) | 0.1~99.9 | 0.1 ~ 200 | ||||
| Number of Spindles | 4 types (21, 27, 28, 29) | |||||
| Accuracy | ±1%(FS)(Newtonian Fluid) | |||||
| Repeatability | ±0.5%(FS)(Newtonian Fluid) | |||||
| Sample Capacity (mL) | 10~20 | |||||
| Temperature Control Range (ºC) | RT+5~300 | |||||
| Temperature Control Accuracy(ºC) | ±0.1 | |||||
| Power Supply | AC100~240V, 50/60Hz | |||||
| LCD Screen Display | The LCD screen can display the viscosity, speed, torque, spindle and the maximum viscosit can be measured in the current spindle speed value. | |||||
| Shipping Size(WxDxH)(mm) | Package 1: 400x350x380 Package 2: 400x350x560 | |||||
| G.W(kg) | 15 | |||||
| Digital viscosity meter | 1 pce | Ascending and falling | 1 set |
| Frame and Pipe | 1 set | Power Adapter | 1 pce |
| Standard Spindle | 1 set | Spanner | 1 pce |
| Seat and Leveling Feet | 1 set | RTD Temperature Probe | 1 pce |
| Temperature Controller | 1 pce | Heating Furnace | 1 pce |
| Insulation Cover | 1 pce | Special Tweezers | 1 pce |
| Position Bracket | 1 pce | Connect Cable | 1 pce |
| Power Cord | 1 pce | Connection Hook | 2 set |
