Inner Round Hole CNC Vertical Internal Grinding Machine

Inner Round Hole CNC Vertical Internal Grinding Machine

US$20,000.00-77,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
GIP300
Type
Internal Grinding Machine
Processing Object
Gear
Abrasives
Grinding Wheel
Controlling Mode
CNC
Automatic Grade
Automatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Max. Grinding Internal Diameter
300mm
Max. Grinding External Diameter
400mm
Max.Grinding Depth
300mm
Weight
8200kg
Roundness
2um
Cylindricity
3um
Transport Package
Wooden Case Package
Specification
standard
Trademark
GOLP
Origin
China
Production Capacity
20 Sets Per Year

Packaging & Delivery

Package Size
250.00cm * 260.00cm * 280.00cm
Package Gross Weight
8200.000kg

Product Description

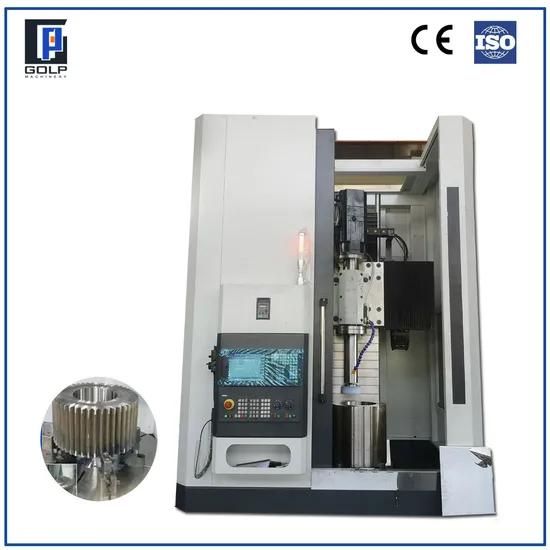

Vertical internal grinding machine series
1. This machine tool is a two axis two linkage CNC vertical internal (or external) grinding machine, which can grind the internal (external) circle of parts, step holes and other multiple surfaces.
2. The machine tool is a single column (Z axis) on which a beam (X axis) is erected. (Z axis) moves up and down. (X axis)moves left and right.The static spindle is fixed on the machine bed to drive the work piece to rotate. and the work piece fixture adopts magnetic chuck or chuck.
3. The machine tool is fully enclosed and protected. The electrical cabinet is installed at the back of the machine body, and the mobile control box is located at the right front of the machine tool. The left and right dressers are used for grinding wheel dressing. lt has the functions of automatic grinding wheel dressing and automatic compensation.
4.Long shafts and large workpieces are better handled because their vertical layout allows the workpiece to hang naturally under gravity, thus reducing deformation caused by the weight of the workpiece itself.
5. Better suited for integration with automatic loading and unloading systems, such as the use of manipulators for loading and unloading workpieces, which allows for a higher degree of automation, increased productivity and reduced labor costs.

1 Max. Grinding internal diameter ( mm ) 300
2 Max. Grinding external diameter ( mm ) 400
3 Max. Grinding depth ( mm ) 300
4 Diameter of magnetic chuck (or chuck) ( mm ) 400
5 Max. rotation diameter of work piece ( mm ) 500
6 Max weight of work piece ( kg ) 300
7 Max. Stroke of X axis ( mm ) 600
8 Max. Stroke of Z axis ( mm ) 500
9 Max. Moving speed of X Z axis ( m/min ) 6
10 Resolution of X Z axis ( mm ) 0.001
11 Rotating speed of static pressure workbench ( rpm ) 10--100
12 Weight of machine tool ( kg ) 8200
13 Overall dimension of machine tool ( mm ) 2500x2600x2800
14 Roundness ( um ) 2
15 Cylindricity ( um ) 3
16 Surface roughness(um) (Ra0.3)

You can click on the image above for details.
WUXI GOLP CNC MACHINERY CO.,Ltd is located in Wuxi--the core location of the Changjiang Delta which is the most dynamic economy area in China. We are a new brand company specializing in the CNC machine tool industry. The company is mainly engaged in Die-casting machine, CNC Punching machines, Powder compacting machine and other new intelligent machine and related supporting products. The company adheres to the business philosophy --Professional quality, Credibility first, Customer first, and is committed to the development goal of becoming an important member of the global market in the field of intelligent machines.
Q:What's your payment terms?
A:T/T,L/C,Paypal,Western Union etc.
Q: How long is the product warranty?
A: 24 months
Q: Are you a trading company or a manufacturer?
A: We are a professional manufacturer. Our products have been exported to Asia, South America, Africa, and have developed a good world wide reputation.
Q: What kind of product certification do you have?
A: All our products have passed ISO9001 and CE certifications. We have strict quality inspection process before leaving our factory in order to offer the best quality machines to our customers.
Q: Do you have after sales service?
A: Yes, we have special service team which will offer you professional guidance, or On-site installation in customer Factory.
Q: Do you test all your goods before delivery?
A: Yes, we have strict quality inspection process including a load test for every machine before leaving our factory.
