Scb-1600/10/0.4 Three Phase 1600kVA 10kv Dry Type Distribution Transformer

Product Description

Three Phase 1600kVA 10kv Dry Type Transformer with protective enclosure Product Description

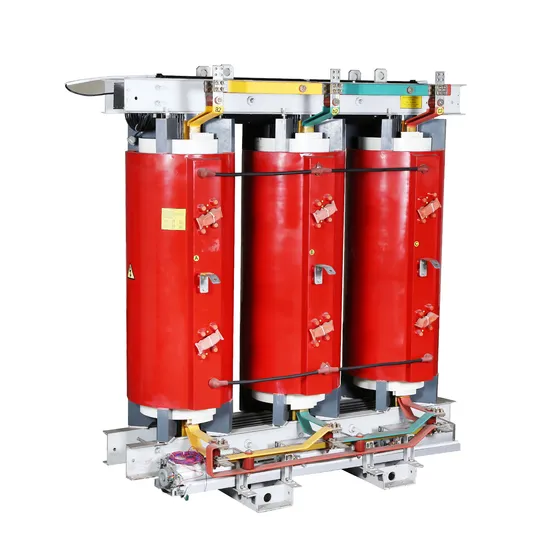

Description about Three Phase Cast Resin Dry Type Transformer
A dry type transformer, also known as an air-cooled transformer, is a type of transformer that utilizes air or gas instead of liquid (such as oil) for insulation and cooling purposes. This transformer design does not immerse its core and windings in insulating oil, making it distinct from oil-filled transformers.
Types of Dry Type Transformers: Cast Resin Dry Type Transformer (CRT): Uses epoxy resin to encapsulate windings, protecting them from moisture, dust, corrosion, and other environmental factors. Suitable for high humidity areas, indoor installations, and fire-risk areas due to its non-hygroscopic, non-inflammable, and maintenance-free nature. Available in ratings from 25 kVA to 12,500 kVA, with an insulation class of F (90°C temperature rise). Vacuum Pressure Impregnated Transformer (VPI): Impregnates windings with class H polyester resin under vacuum and pressure, eliminating air gaps or voids in the insulation. Enhances mechanical strength, dielectric strength, and thermal stability. Suitable for outdoor installations, seismic events, and temperature fluctuations due to its robust construction, moisture-resistant enclosure, and low thermal expansion coefficient. Pearl Electric, an experienced transformer manufacturer since 1958, design and produce various cast resin dry type transformer for different application include rectification transformer, marine/offshore oil platform transformer, rectification traction transformer, Transformer for electrified railway station, Rectification excitation transformer etc.
Technical Datasheet for Cast Resin Dry Type Transformer

Items	Item
Origin	China
Manufacturer	Pearl Electric Co., Ltd.
Brand	Pearl Electric
Production Descriptions	Three Phase Cast Resin Dry Type Transformer
Reference standards	IEC 60076
Capacity	1600kVA
Frequency	60 / 50Hz
Voltage (HV)	10kV or Customized
Voltage (LV)	0.4kV or Customized
Impedance	4%
Connections (Vector Group)	Dyn11
Tapping Range	+ 2 x 2.5% , - 2 x 2.5%
Core materials	Silicon Steel
Winding materials	Aluminum or copper
Lightning Impulse Withstand Voltage	IEC standard
AC withstand voltage	IEC standard
Temperature Rise class	H-class
Temperature Rise	125K
Cooling method	AN/AF

Certifications Certifications and Test Reports
1. ISO 9001:2015 Quality Management System Certificate
2. ISO 14001:2015 Environmental Management System Certificate
3. ISO 45001: 2018 Occupational Health and Safety Management System Certificate
4. CE Certifications for dry type transformer and oil-immersed power transformer
5. KEMA Test Report for Cast Resin Dry Type Transformer and Oil-filled Distribution transformer
6. DEKRA TYTE TEST CERTIFICATES for Prefabricated Substation Company Profile PEARL ELECTRIC CO., LTD. Pearl Electric, located in Guangzhou, China, was founded in 1958 and is an outstanding power equipment supplier in the transmission and distribution industry. With a land area of 100000 square meters, over 600 employees, and an annual turnover of over USD 142 million, we currently have over 200000 transformers in operation, which have been sold to Southeast Asia, Central Asia, Africa, Europe, North America and other regions. Pearl Electric is devoted to providing safe, highly efficient and intelligent power transformation and distribution solution, focusing on R&D, manufacturing, sales and service as below: ★ Cast Resin Dry Type Transformer Up to 30MVA, 66kV ★ Oil-immersed Power Transformer Up to 150MVA, 220kV ★ Pad-mounted Transformer Up to 10MVA, 40.5Kv ★ Compact Substation Transformer Up to 10MVA, 40.5kV Reactors and other power transformation/transmission equipment. Product Line
FAQ:
1.Q: Are you manufacturer?
A: Yes, we are manufacturer. Our factory is in Guangzhou City, Guangdong Province.
2.Q: Do you have any Certificate?
A: Yes. Our transformer has awarded CE, UL, KEMA certificate. If you need any other Certificate, we can help you to apply it.
3.Q: How can I pay you?
A: Pay by T/T and L/C is acceptable.
4.Q: What about the production?
A: In general, it take 4~6weeks and it depend on the different style.
5. Q:How contact us to get quick inquiry ? Follow us in our company website.
