Energy Saving 64 Cavity 5 Gallon 20 Liter Plastic Cap Water Bottle Pet Preform Making Injection Molding Machine Machinery

Energy Saving 64 Cavity 5 Gallon 20 Liter Plastic Cap Water Bottle Pet Preform Making Injection Molding Machine Machinery

US$79,000.00
1-4 Pieces
US$72,000.00
5+ Pieces

Basic Info.

Model NO.
PET4500
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic
Automation
Automatic
Certification
CE, ISO9001:2008
Motor
Servo Energy Saving Motor
Plastic Processed
Pet
Clamping Force
4000kn
Video Outgoing-Inspection
Provided
Trademark
Powerjet
Origin
China
HS Code
8477101090
Production Capacity
5000

Product Description

Product Description

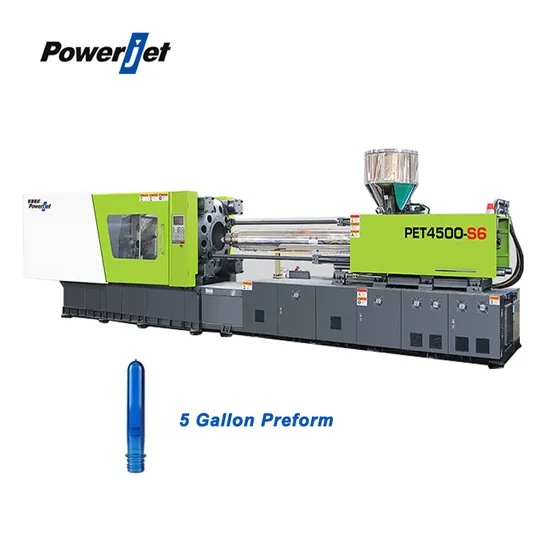

PET PREFORM INJECTION MOLDING MACHINE
Powerjet PET Preform Injection Molding Machines are specialized for different sizes of PET preforms. With PET special screw, it highly increases the plasticizing speed and shot weight.

Shoot Weight - 4975g(Max)
Clamping Force - 128~680(Ton)
Motor Type - Servo Or Variable
Applications - Specialized For Different Sizes Of PET Preform

FEATURES:
1:PET Special Screw
PET screw highly increases the plasticizing speed and shot weight, lowers the plasticizing temperature and AA value, also achieves better product transparency.
2:Energy-Saving 30%~50%
The servo motor control system can save energy by 30%~50%, while the variable pump control system can save energy by 25% ~ 45%.
3:Pressure Synchronization System
Optional with pressure holding and charge at the same time, which can increase productivity by 15%~25%.
4:Max Shot Weight
Different models are available for the choice of customers, Max shot weight: 5000g

Machine Details

DESCRIPTION UNIT PET4500L-V6/S6
CLAMPING UNIT Clamping force KN 4000
Opening stroke mm 710
Max.datlight mm 1440
Platen size mm 1050*1050
Space between bars mm 740*720
Max.mold height mm 730
Min.mold height mm 300
Ejector stroke mm 210
Ejector force KN 182
INJECTION UNIT Screw diameter mm 100
Shot volume cm3 3966
Screw stroke mm 505
POWER UNIT Hydraulic system Pressure MPa 17.5
Pump motor power KW 55/25.3+30.8
Heater power KW 42
