Automatic Steel Purlin Roll Forming Machine for Glazed Tiles for Wall Gutter Building Construction PLC Control New Ibr Sheet

Product Description

NOTE: The shape of the machine may be different, but the finished product produced by the machine is the same. The shape of the machine and the finished product can be customised according to customer requirements.
Product Parameters

Product Name		Steel purlin roll forming machine
Profile		C shape, Z shape, U shape
Material	Type	Galvanized steel coil
	Thickness(mm)	1.5-3.0mm
	Tield stress(Mpa)	Q235-345
Max.forming speed (m/min)		10-15m/min
Roller material		Bearing steel GCr15
Roller driven type		Chain transmission
Controller		PLC
Operation		Touch screen and button
Hydraulic system pressure(Mpa)		20
Main motor power(KW)		18.5-22
Hydraulic station motor power		5.5
Dimension (L*W*H)		about 10000*1000*1500mm
Weight (KG)		about 10000

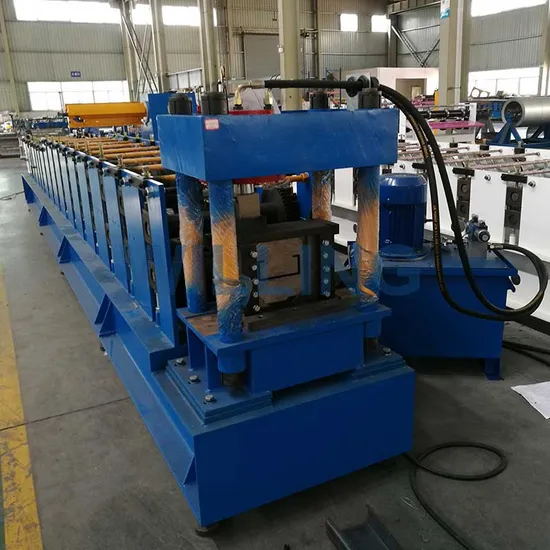

Detailed Photos
Product Category

Trapezoidal Steel Tile Roll Forming Machine	Roof & Wall Roll Forming Machine	Steel Floor Deck Roll Forming Machine
Steel Purlin Roll Forming Machine	Tile Ridge Cap Roll Forming Machine	Slitting & Cutting To Length Machine
Embossing Crimping Cuving Machine	Manual and Hydrualic Decoiler	Cable Tray Roll Forming Machine
Drain Pipe System Machine	Auxiliary Equipment	Other Products

Our Service
- Provide Pre-sales Consultant & On-purchase service & After-sales service 24hr × 7days per week
- Give technical suggestion
- Test the machine before shipment
- Provide technical guidance relate to use the machine
- Supply one-year warranty period for the machine
- Provide the spare parts at cost price after warranty period
- Collect the feedback for the machine working
- Provide long-term technical assistance.
FAQ
Q1: Are you manufacturer or trading company?
A1: We are manufacturer
Q2: Do you have overseas engineers?
A2: Yes, we not only provide overseas engineers, but also provide technical training.
Q3: Do you provide customized?
A3: Sure, we can design the equipment according to your request. We are professional sheet metal forming machine designer and manufacturer.
Q4: How does your factory do regarding quality control?
A4: There is no tolerance regarding quality control. Quality control complies with ISO 9001.every machine has to past testing running before it's packed for shipment.
Q5: How can I trust you that machines pasted testing running before shipping?
A5: 1) We record the testing video for your reference
2) We welcome you visit us and test machine by yourself in our factory.
Q6. Do you have after-sales support?
A6: Yes, we are happy to provide advice and we also have skilled technicians available to install or maintain for your in your place.
Q7:Can I visit you factory to check machines on-site? What Should I bring when I visit your factory?
A7: We are manufacturer, and we welcome customers to visit our factory. For special product design and develop, we request you bring a piece of testing material, you can test on our machines on-site.
Q8. What's your payment terms and delivery time?
A8: We prefer 30% as the deposit by T/T, 70% balance payment by T/T after your inspect the machine well and before delivery. Or irrevocable LC at sight is acceptable.
After we receive deposit, we will arrange production. delivery time is about 60-70 day.
Q9: How to visit your company?
A9: We can pick you up from Hangzhou airport. Or railway station Hangzhou or Hangzhou East.
