Mobile Portable Crushing Crusher Complete Production Line

Product Description

Product Description

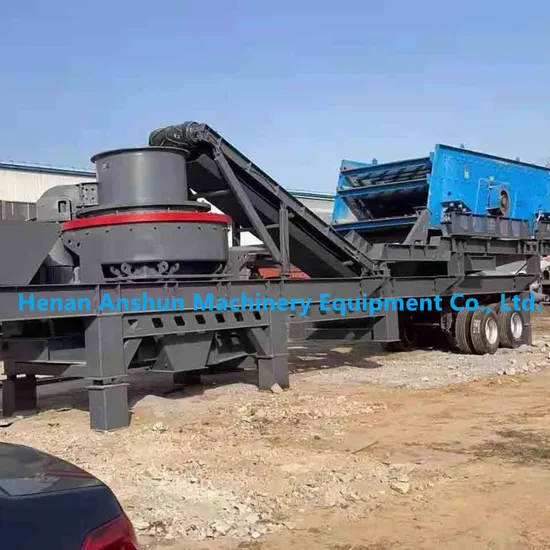

Wheeled Mobile VSI Sand Making Plant (mobile crushing plant) is also called a mobile sand making machine or a mobile sand maker. Mobile VSI crusher has a high chassis and a small turning radius, which is convenient for driving on ordinary roads and even more convenient for driving in the rugged and harsh road environment of the crushing site: it saves time for quick entry into the construction site.
Mobile VSI Sand Making Plant is conducive to entering a reasonable construction area, eliminating the cumbersome steel frame structure and foundation construction during crushing, saving a lot of time. According to the customer's requirements for material types and products in the process, a more flexible process solution configuration can be provided to meet the user's various requirements, such as mobile crushing and mobile screening, making the production organization and logistics transfer more direct and effective.


Product Advantages
1. Strong Mobility
Mobile VSI Sand Making Plant has strong mobility and provides a more flexible working space.
2. Energy Saving
Mobile VSI Sand Making Plant reduces the cost of material transportation, crushes the material on site, and saves energy.
3. Flexible Combination
Mobile VSI Sand Making Plant operates directly and effectively, can be used independently, and offers a variety of process solution configurations.
4. Strong Adaptability
Different crushing and screening systems can be formed according to needs to meet various crushing needs.
Working Principle

The working principle of the Mobile VSI Sand Making Plant is the same as that of the Vertical Shaft Impact Sand Making Machine. The material enters the sand making machine from the feed hopper and is divided into two parts by the distributor. One part enters the high-speed rotating impeller from the middle of the distributor and is rapidly accelerated in the impeller. Its acceleration can reach hundreds of times the acceleration of gravity. Then, it is ejected from the three evenly distributed flow channels of the impeller at a speed of 60-70 m/s. First, it is impacted and crushed by a part of the material that falls from the distributor's surroundings. Then, it impacts the material lining in the vortex branch cavity together, is rebounded by the material lining, and impacts obliquely upward to the top of the vortex cavity. Then, it changes its direction of movement and deflects downward. The material emitted from the impeller flow channel forms a continuous material curtain. In this way, a piece of material is subjected to two or more collisions, friction grinding and crushing in the vortex crushing cavity. The crushed material is discharged from the lower discharge port. It forms a closed circuit with the circulating screening system. Generally, three cycles can crush the material into less than 20 mesh.
During the whole crushing process, the materials impact and crush each other without direct contact with metal components but impact and rub against the material lining to crush, which reduces corner pollution and prolongs the mechanical wear time. The ingenious airflow self-circulation inside the vortex cavity eliminates dust pollution.

Mobile VSI Sand Making Plant Technical Parameters
Standard Model	Corollary Equipment	Corollary Equipment			Overall Dimension (mm)
		Model	Feeding Size (mm)	Capacity (t/h)
S-V7611	3YZK1548	VSI7611	35	120-180	12500 x 2600 x 4300
S-V8518	3YZK1848	VSI8518	40	200-260	14200 x 3000 x 4500
S-V9526	3YZK1860	VSI9526	45	300-380	14500 x 3000 x 4500
S-V1140	3YZK2160	5X1140	50	450-520	15500 x 3100 x 4500
S-5V7615	3YZK1548	5X7615	35	150-280	12500 x 2600 x 4300
S-5V8522	3YZK1848	5X8522	40	240-380	14200 x 3000 x 4500
S-5V9532	3YZK1860	5X9532	45	350-540	14500 x 3000 x 4500
S-5V1145	3YZK2160	5X1145	50	500-640	15500 x 3100 x 4500
S-5V1150	3YZK2260	5X1150	50	550-750	15800 x 3200 x 4500

Company Profile
Henan ANSHUN Machinery Equipment Co., Ltd. is a modern enterprise that integrates research and development, production, sales, and service of mining crushing, construction sand and gravel aggregate, and crushing and sand making. As one of the first companies to pass the ISO9001 quality certification system and an EU CE-certified company, the company produces and sells products to Southeast Asia, Central Asia, Africa, the Middle East, and other countries and regions. The perfect after-sales service management system has made the company′s products recognized and praised by the industry. The ANSHUN brand is well-known at home and abroad and has become a shining pearl in the mining machinery manufacturing industry.


Packaging & Shipping

Certifications
FAQ
Support:We can not only provide the good machines, but also wholeheartedly provide the comprehensive for our clients. The series of professional technology service will make you have an excellent product experience.After-sales service support :After we signed the purchase contract and have a certain reputation guarantee, we will contact the professional group that responsible for ship bookings, commodity inspection, commercial invoices, packing list, insurance policy and so on, in order to provide you the perfect goods trading services, until the product you purchased properly to your hands.We will send a professional and high levels installation engineer team at the same time the product properly to the destination, in order to supply you a full range of products installation services. For some typical problems, our rigorous installed engineers also will do some certain installation debugging training, etc.Technological support :ANSHUN Machinery has been largely adopting new technologies, new techniques and high-tech equipment. And ANSHUN Machinery also has strict and effective quality control system. We have obtained ISO9001:2000, TUV and CEquality system certificate.
