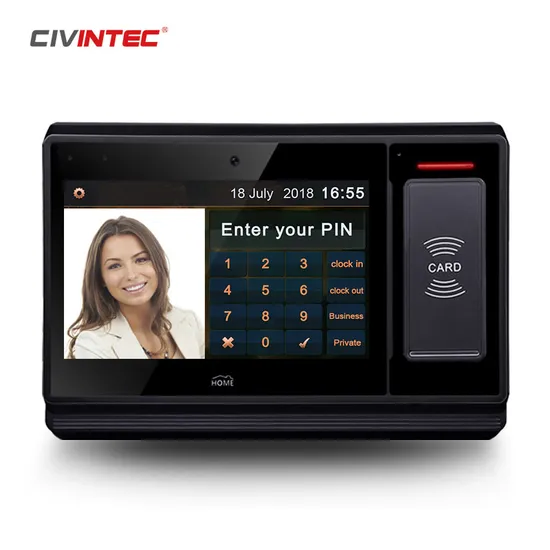

3G Wireless Android Fingerprint Time Attendance with Li-ion Battery
Basic Info.
Model NO.
CN8
Software System
WINXP
Communication Mode
TCP/IP
Connection
Wiegand
RFID
MIFARE, DESFire, MIFARE Plus, Felica, ISO14443b
Biometric
Fast Speed Biometric 1:1, 1:N
Interface
TCP/IP, WiFi, GPRS, Bluetooth
Power
Poe, Alternative: Ext. Power Supply DC 9-24V;
Screen
7" Touch Screen
Memory
2GB Nand Flash + 256MB Mobile DDR Sdram
Camera
Embedded 2.0m Pixel Digital Camera
Door Phone
Microphone, Door Bell, 2W/8 Ohm Speaker
Operation System
Linux, Android (Option)
Transport Package
Well Protect Package with Accessory
Specification
L=230mm, H=45mm, W=160mm
Trademark
CIVINTEC, OEM
Origin
Shenzhen, China
Production Capacity
6000 PCS/Month
Product Description
| Model | CN890 SERIES |
| Operation System | ANDROID & LINUX |
| Display | 7.0" capacitive touch screen |
| Smart Card Interface | |
| ISO-protocol | 125KHz & Pro, 13.56MHz ISO14443A/B, ISO15693, ISO18092 NFC |
| Contact smart card | ISO7816 (T=0,T=1) 1 SAM module |
| Biometric Fingerprint Reader | |
| Fingerprint sensor | 500 dpi optical sensor |
| Template capacity | 1:1 (100,000); 1:N (25,000) |
| General Features | |
| Communication interfaces | 4G, WiFI, BT4.0,TCP/IP, RS232, RS485/OSDP, wiegand, USB2.0 (OTG) |
| Power supply | 9-24V DC,Power over Ethernet ,Battery |
| Camera | Auto focus 5.0 megapixel digital camera |
| SD card | 1 SD card slot |
| Tamper alarm | 1 tamper alarm switch |
| Certification | CE,FCC |
