Ground Backyard Modern Poultry Farming Design Chicken Broiler Pan Feeding System Equipment

Product Description

Full Automatic Modern Poultry Farming Design Chicken Broiler Pan Feeding System Equipment 1.Automatic Main Stock Line System
This system delivers feed from the silo to the hopper in the poultry house. There is one feed sensor at the end of main feed line which control the motor on and off automatically to release automatic delivery.

Consists	Item Name	Specifications	Remarks
silo( or big feed hopper), drive system, sensor, main feeding line pipe, auger	feed silo	8t/10t/14t/16t/22t/28t	1.Silo foundation and the embedded parts should be borne by the buyer; 2.Feed silo adopts galvanized steel belt or fiber reinforced plastic, which is customized by the customer's demand;
	big feed hopper	600kg/800kg
	drive system	top quality motor, 0.75/1.1kW
	sensor	world top class products
	main feeding line pipe	world top class products
	auger	world top class products

2.Automatic Pan Feeding System
This system deliver feed automatically through motor under the control of feed sensor,which ensure birds feeding during whole growing period.

Consists	Item Name	Specifications	Remarks
sub feed bin(with accessories), drive system, sensor, four holes hot galvanized pipe, feed pan, winch handle, manual lifter winch, auger	sub feed bin(with accessories)	70/90kg	1.Special purpose high quality drive motor; 2.World advanced concept designed feeding pan;
	drive system	top quality motor,0.75/1.1kW
	sensor	world top class products
	four holes hot galvanized pipe	3m/set

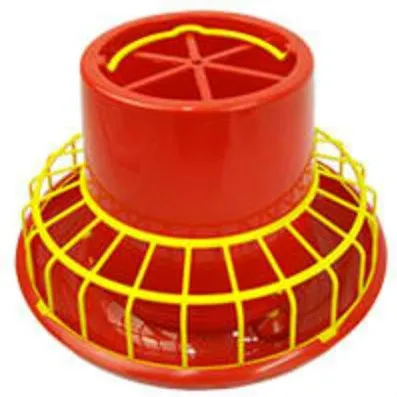

	feed pan	with feed limit leaf
	winch handle	GR products
	manual lifter winch	GR products
	auger	world top class products

3.Nipple Drinking System
This system can provide fresh and clean water for poultry which is crucial for the growth of poultry. The drinkers can be triggered from 360 degree which helps young birds start well and makes drinking easier.

Consists	Item Name	Specifications	Remarks
water line front parts, doser, drinking system main inflow pipe, pressure regulator connecting hose, middle pressure regulator parts, nipples drinking line, lifter winch, winch handle, drinking line hanging parts	water line front parts	pure material good quality pipe	1.Pure raw materials drinking water pipe.
	doser(with accessories)	world top class products
	dosing pump(with accessories)	world top class products
	dosing bucket	100kg
	drinking system main inflow pipe	pure material good quality pipe
	pressure regulator connecting hose	pure material good quality products
	middle pressure regulator parts	world top class products
	nipples drinking line	12nipples/3m, 15nipples/3m, 16nipples/4m
	lifter winch	GR1500
	winch handle	GR550
	drinking line hanging parts	reliable and long service life

4.Automatic Ventilation System
This system controls climate conditions, fresh air, humidity and temperature in poultry shed, it is vital for growing birds. This system include Poultry house fan, Cooling pad, Air inlet window.

Consists	Item Name	Specifications	Remarks
50" fan, 36" fan, frequency converter, air inlet, air inlet motor, manual winch, right and left cart with accessories	50" fan	top quality motor, 220/380V	1.Special production process to ensure the smooth running of low noise and no vibration; 2.Japan imported belt, to ensure long-term use without deformation; 3.Air inlet adopts reasonable design mechanism, easy to open, good seal and heat preservation performance.
	36" fan	top quality motor, 220/380V
	frequency converter	3kW
	air inlet	three direction
	air inlet motor	reliable and long service life
	manual winch	H-1500-B
	right and left cart with accessories	reliable and long service life

5.Environment Control System
This system saves the labor and the resources under the condition of assuring the optimum growth environment of the chickens. It is imported from Israel can set an optimum working mode according to the local climate and raising environment.

Consists	Item Name	Specifications	Remarks
environmental controller, environmental sensor, humidity sensor, negative pressure gauge, power box, watt-hour meter box, light regulator, main control box(with alarm), sub control box, UPS power supply group(regulator control box use), lighting system(bulb not included), wires and fixtures	environmental controller	Temptron607/610/616, AC-2000 PLUS, Rotem Platinum PLUS	1.Main parts all adopts world class products to ensure the reliability;
	environmental sensor	world top class products
	humidity sensor	world top class products
	negative pressure gauge	world top class products
	power box	reliable and long service life
	watt-hour meter box	reliable and long service life
	light regulator	60A
	main control box(with alarm)	reliable and long service life
	sub control box	reliable and long service life
	UPS power supply group(regulator control box use)	with battery and charger
	lighting system( light bulb not included)	for broiler house
	wires and fixtures	for broiler house

6.Cooling Pad System
Cooling pad surface coated with special material, which can ensure the cooling pad surface no moss, and inhibit the growth of bacteria; The top set with dredge water cooling pad, to make sure uniform water spread.

Consists	Item Name	Specifications	Remarks
cooling pad (aluminum alloy frame), protective curtain cloth, curtain system(include motor), circulating water system, filter, pump	cooling pad (aluminum alloy frame)	1.5m*0.15m*0.6m, 1.8m*0.15m*0.6m(without frame); 1.66m*0.15m*0.6m , 1.96m*0.15m*0.6m(with frame)	1.Cooling pad paper adopts the Finland import pulp, breeding special purpose corrugated angle, 2-3 times cooling effect of the ordinary cooling pad; 2.Cooling pad glue uses Taiwan brand product, strong adhesion strength, ensure the cooling pad's hardness and toughness, durable; 3.The frame adopts aluminum alloy material, anti rust.
	protective curtain cloth	reliable and long service life
	curtain system(include motor)	reliable and long service life
	circulating water system	reliable and long service life
	filter	Taiwan brand product, reliable and long service life
	pump	0.55/0.75kW,anti block pump

7.Automatic Spraying System
This system effectively cools, humidifies, deducts and disinfects the henhouse(the temperature is quickly reduced by 3-8 degrees centigrade within a few minutes).

Consists	Item Name	Specifications	Remarks
3/8'' copper tube, nylon tube, double opening spaying sitting, copper spaying nozzle, copper T-connection part, ball valve, valve connection, direct connection, L-shaped connection, mobile main spaying machine, high pressure hose, high pressure slow shock tube, filter	3/8'' copper tube	tube thickness: 1mm	1.The main spaying machine adopts Taiwan brand product, high temperature automatic protection device, the water absorption capacity is 20-38L/minute; 2.Nylon tupe adopts the import products, pressurebearing capacity is 30-90kg, corrosion resistance; 3.Pipeline and spraying sitting 's pressure bearing capacity is 100kg; 4.Filtration system using honeycomb filter, 400 hole filtering mesh.
	nylon tube	tube thickness: 2.7mm
	double opening spaying sitting	copper
	copper spaying nozzle	3/8'', 25-30mm
	copper T-connection part	3/8''
	ball valve	3/8''
	valve connection	3/8''
	direct connection	copper
	L-shaped connection	copper
	mobile main spaying machine	3.7kW
	high pressure hose	reliable and long service life
	high pressure slow shock tube	reliable and long service life
	filter	reliable and long service life

8. Curtain System
Curtain system is used for the open structure poultry house with no side wall, which is mainly used in the area which has high temperature weather all the year round.

Consists	Item Name	Specifications	Remarks
curtain cloth, curtain drive system	curtain cloth	reliable and long service life	1.The drive system is optional, can use motor drive system or manual drive system, customized per the customer's demand.
	curtain drive system	reliable and long service life

9. Automatic Heating System
In cold weather, poultry heating system is widely used for heating the poultry house, which has good performance and can save the heating cost.

Consists	Item Name	Specifications	Remarks
hot blast stove with accessories	hot blast heater	reliable and long service life	1.Can be equipped with heating duct;
oil/gas fired heater with accessories	oil/gas fired heater	30kW/50kW	1.Automatic temperature control;
waste oil heater	waste oil heater	8-10l/hour	top quality, save cost

Our Advantages
Advantages to use our automatic poultry equipment :1. Time saving2. Labour saving3. Increasing chicken living rate.4. High quality to ensure non stopping running of your house.5. Comparatively cheap price

Our services
1. Site selection of standardization chicken farm.
2. chicken house design.3. Construction guidance.4. Breeding worker training.5. On site technology instruction.
6. Lifetime technical support

Company Profile
Weifang G-repu Import & Export Co., LTD. located in Weifang city, the kite capital of the world. Located between Jinan, the capital of Shandong Province, and Qingdao, the largest port in China, Weifang enjoys beautiful scenery, convenient transportation and a good cultural environment.
The main business of the company is the import and export of livestock products, including automatic broiler breeding equipment, automatic breeding equipment, automatic laying equipment, automatic broiler cage equipment, automatic breeding equipment, automatic laying equipment and related accessories; Automatic pig house equipment and various accessories, especially all kinds of pig stalls, cast iron flooring and various plastic accessories.
The company is equipped with experienced designers, installation and commissioning personnel and foreign trade business skilled foreign trade personnel and after-sales. All relevant personnel have a very rich experience in the industry, in the industry experience of 5-15 years.
Our products with excellent quality, excellent service and high cost performance at home and abroad to win a high reputation, our customers have foreign listed companies, foreign private owners, and let the partners quickly in the industry unknown to the central and South American market fame, the end customer farm scale has expanded year by year. All the successful experiences make us confident enough to provide our customers with satisfactory products and services.
After years of business accumulation, in order to better serve our customers and provide more cost-effective equipment, we have set up our own processing factory, which is located in Qingdao, Shandong Province. Qingdao aquaculture equipment industry base, is also a port city, easy to container transportation, easy to allocate the entire set of equipment customers.
Our main products are broiler, breeder, layer feed tube and water line support balance tube, checkpoint, pig feed tube.
Our products are the highest standards in the industry in China, because we comply with the principle that quality is the first productivity, quality is the cornerstone of the company. We are always ready for the industry guests to visit and guide, we will do our best to create a win-win situation.
Looking forward to your inquiry and arrival!
FAQ
1. how can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment. 2. Why should u buy from us not from other suppliers?
We have our own processing factory.
We are professional supplier of poultry equipment, we have exported to different countries for many years.
Our quality is competitive with USA and EU. Our feed pan, feed pipe, Nipples (Same quality as "Lubing" brand ), and other
spare parts are best quality in China market.
Our clients never take any complaint from customers, we are real " ZERO" complaint. We ensuring the rights and interests of consumers, selling with integrity, and producing high-quality products. 4. Do you accept sample order or small order?
Yes, we supply sample order for customer as well.
5. Do your sample is free or not?
Sample we can supply free of charge, the courier cost will bear by yourself.
When you place order, we can reduce this cost from payment.
6. Can we have our logo on the product?
Absolutely! As long as ordered quantity meets and provide us with your drawing, we are able to place your logo on the product. 7. Can we place order fromthis link directly? Yes, no problem.
Welcome contact us for further specifications and detailed price list!
