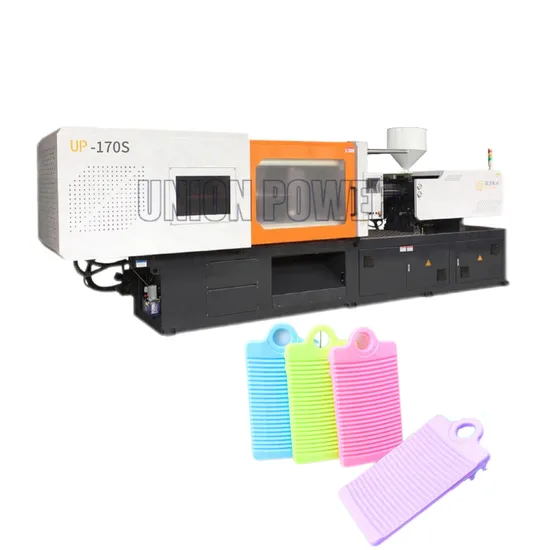

Washboard Injecion Molding Machine Chinese Manufacturer Plastic machine
| US$20,800.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
UP-170
Type
Tube Head Injection
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Machine Weight
5.2t
Heating Power
9.3kw
Tank Volume
240L
System Pressure
16MPa
Transport Package
Film Packing
Specification
4.95*1.36*2
Trademark
UP
Origin
China
HS Code
8474809090
Production Capacity
500sets Per Year
Packaging & Delivery
Package Size
495.00cm * 136.00cm * 200.00cm
Package Gross Weight
5200.000kg
Product Description
OverviewProduct Parameters
| Technical Parameters | Model UP-170T | ||
| Injection Unit | A | B | C |
| Screw diameter (mm) | 42 | 45 | 50 |
| Shot Volume (cm3) | 311 | 358 | 442 |
| Injection weight (g) | 373 | 429 | 506 |
| injection pressure (Mpa) | 174 | 152 | 123 |
| Screw speed (rmp) | 199 | ||
| Clamping Unit | |||
| Clamping force (KN) | 1700 | ||
| Open stroke (mm) | 440 | ||
| Max Mold height (mm) | 500 | ||
| Min Mold height (mm) | 180 | ||
| Space between tie bars(mm) | 470*470 | ||
| Ejector force (KN) | 46 | ||
| Ejector stroke (mm) | 140 | ||
| Others | |||
| Pump pressure (Mpa) | 16 | ||
| Motor/driving power (KW) | 15(18.2) | ||
| Heating power (KW) | 9.3 | ||
| Machine dimension (M) | 4.8*1.4*1.9 | ||
| Machine weight (T) | 5 | ||
| Oiltank cubage (L) | 240 | ||
Machine details
Why choose UP machine?
Packaging & Shipping
FAQ
