Ss/SMS/SMMS Meltblown / PP Spunbond /Spunlace Filter Fabric Geotextile Fabric Polypropylene /Nonwoven Fabric Making Machine Pric

Product Description

Name: Automatic Non-woven Fabrics Machine Set
Introduce:

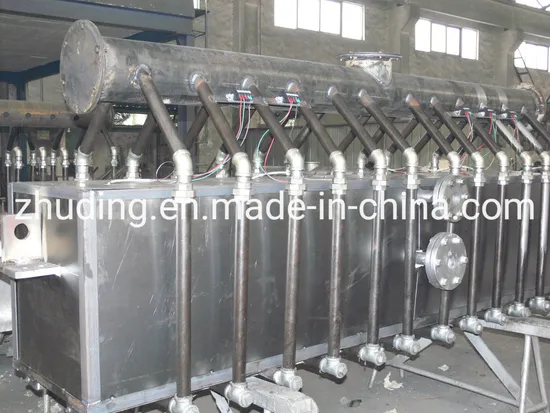

Spinning die-head adopts design optimization of flow models of coat-hanger type, equality distribution of melt, balance pressure
Non-broken or combine fibre no holes no blind angle, and fastly
Color transition. Rolling mill adopts DC motor universal joint transfer,
Roller adopts technology of Ultra Laser Drilling to ensure the same of the temperature,
No Hair-in filling. The equipment adopts cutting on line, automatic low winding technology, in order to serve
Resource, and improve the production efficiency.
Major Characteristics:
1. The whole line is well-structured and easy to operate
2. The whole line highly automated
3. Control elements are of well-know make, high performance and reliable technologies
4. The whole line are controlled by PLC and operated with touch -scree.
5. The allocation of the main frame and auxiliary equipment can be special designed and configurated according to customer's requirements.
Production line characteristics:
Product width: 1600mm
Production capacity: 2200T/year(According to 60G/M2, 7800h per year) Main raw material PP
Product basis weight: 10~200G/M2
Production speed: 10~300m/min
Technological process of the production line:
Raw materialPellet feeding Melting and Extruding Filtration MeteringSpinningAir drawingWeb formingThermal calenderingstrainingRolling upCutting and packing

The TY OF DIE	Effective width	GSM	Annual capacity	Embossing pattern
1	1600mm	10-250GSM	1500T	Diamond, oval, cross , and line
1	2400mm	10-250GSM	2400T	Diamond, oval, cross , and line
1	3200mm	10-250GSM	3000T	Diamond, oval, cross , and line
SS	1600mm	10-250GSM	2400T	Diamond, oval, cross , and line
SS	2400mm	10-250GSM	4000T	Diamond, oval, cross , and line
SS	3200mm	10-250GSM	5000T	Diamond, oval, cross , and lin
