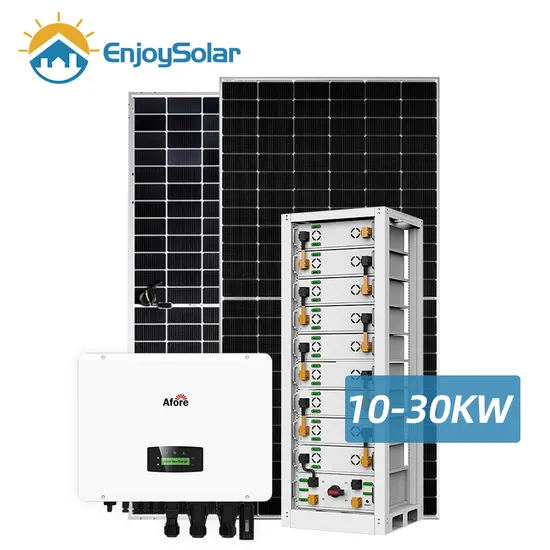

High-Efficiency 10kw 20kw 30kw Battery Solar System Solutions

Product Description

How It Works?
Solutions Design

Model	30KW	50KW	100KW
Mono Half Cell Solar Panel 570W	42PCS	75PCS	150PCS
Hybrid Inverter	50KVA 1PC	50KVA 1PC	100KVA 1PC
LiFePO4 Battery	48.8KWH (Optional)	100.4KWH (Optional)	200.7KWH (Optional)
DC Cable 1*4MM2	600 Meters	800 Meters	1000 Meters
MC4 Connector	10 Pairs	14 Pairs	20 Pairs
Mounting System	Customized Designed Roof/ Ground Mounting Kits
Solar Installation Tool	1 Set	1 Set	1 Set

System Components
Mono Solar Panel
Model: ES570M-PH
Peak Power Watt: 570Wp
Open Circuit Voltage (Voc/V): 50.2V
Short Circuit Current (Isc./A): 14.34A
Voltage at Maximum Power (Vmp./V): 42.51V
Current at Maximum Power (Imp./A): 13.41A
Efficiency: 22.07%
Dimensions: 2278*1134*35mm
Weight: 28.6% kgAll-in-on hybrid solar inverter
Increases energy independence for homeowners and commercial users
Smart Monitoring & Remote Firmware Upgrade
Built-in Anti-feed-in Function
AFCI (Optional) & Rapid Shutdown Ready
Support for Time-of-use Optimization Battery Storage Bank
Deep Cycle long lifespanHigh discharge performanceEasy installation and Maintenance-freeAGM/GEL/Lithium Ion Battery TypeHigh Voltage Battery
More than 6000 times, up to 90% DODWide suitability of ambient temperature rangeDC Cable & Accessories
Cross Section: 4mm2, 6mm2 OptionalRated Voltage: 600VDC /1000VDC (TUV)Rated Current: 55A, 70AColors: Black For STD, Red Optional.Lifetime: ≤25 YearsOnline Monitoring System
Open Station Supports one-click
Installation and registration Problem
Support one-click dispatch and navigation
Safe operation, traceable logs, etc.
Support full life-cycle data storage to ensure
data security and reliabilityPV MOUNTING SYSTEM
MOUNTING RAIL & RAIL SPLICE KIT: AI6005 & SUS304 BOLT
MID&END CLAMPS: 30,35,40MM
Optional: Roof Mounting/Ground Mounting/Carport etc. Design diagram according to customer's installation area. Packaging & Shipping
Projects
