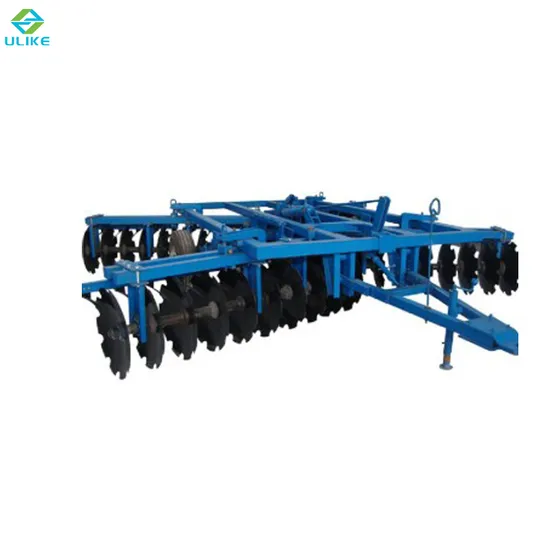

Disc Harrow Hydraulic Heavy Duty Disc Harrow for Plough High Efficiency Farm Equipment 1bjx 1bjxs 1bzd

Product Description

Disc Harrow Hydraulic Heavy Duty Disc Harrow for Plough High Efficiency Farm Equipment 1BJX 1BJXS 1BZD
Detailed Photos
1BJX series hanging middle harrow:This series are used for crushing clods after tillage, preparing sol before seeding, loosening the sol,combining the sol and fertilizer,and cleaning away stubble of plants in light soil field. With reasonable structure, strong ability to rake, durable, easy to use and maintenance, etc.
1BJ, Double folding wings in hydraulic pressure offset middle harrow: This series are used tor crusting clods after tillage in sticky heavy fields,the plough up,the scarification before seeding and cleaning away stubble of plant before tillage n the light sols. This harrow s featured by reasonable structure high working efficiency, strong capability into the soil and scarification horizontal hinge, wide width task and narrow width transportation.

1BJXS middle-duty disc harrow with 12-24 blades is suitable for pulverizing and loosening clods after cultivating and for planning the land before sowing. On cultivated land it can make soil and fertilizer mix up and clear away the stump of plants.The harrow is simple in construction, durable in service, ready to operate, easy to maintain and efficient in pulverizing and breaking into the soil and leaves the land with a smooth,even with. All these satisfy the agricultural requirements of intensive cultivation.The harrow is best to be used with a 25-80 horse power type tractor.


1BQDX series are used for crushing clods after tillage, seedbed preparation, loosening the soil.mixing soil and fertilizer before saving, and cleaning away stubble of plants in light soil field. With reasonable structure, strong ability to rake, durable, easy to use.

1BQX series are used for crushing clods after tillage, preparing soil before seeding,loosening the soil, combining the soil and fertilizer, and cleaning away stubble of plants in light soil field. With reasonable structure, strong ability to rake, durable, easy to use and maintain etc.
1BZ(BX) series semi-mounted offset disc harrow: This series are used for cleaning away stubble of plants before tillage, and crushing clods after tillage in uncultivated field, this harrow may replace a plough for the primary tillage. The maximum working depth in uncultivated land can be up to 18cm. The surface of the field after the harrow work is level and the crushing land clearing ability of the harrow is satisfactory.This series of harrow can easily be hooked up, simply be adjusted.flexibly change the directions, stably drive and have good pass ability.

1BZ series hydraulic pressure offset hew disc harrow has the high working efficiency, strong capability int the soil, and after plough loosen soil. This series can highly adapt to the sticky heavy sol, uncultivated field and those plots of many weeds. This harrow is made of square tubes welded together which ensure simple structure and good rigidity .The harrow is also equipped with hydraulic ting rubber wheels for convenient transportation and small turning radius, thus he production efficiency and lifetime of the harrow is dramatically improved.

1BZD series hydraulic pressure heavy disc harrow: This series are used for breaking up the soil and loosening of wasteland, shrub swamp, heavy soil. it can rake the land instead of plough.

1BZ(G) disc offset trailing heavy--duty harrow is designed for field work as crop residue processing before tillage, breaking hardened and impervious soil surface.crushing and spreading straw, shattering soil after tillage, planting the land and preserving soil moisture. lt can be used on cultivated land for tillage, harrowing inst-head of plough. This harrow has high harrowing capacity with reasonable utilization of power, great ability to penetrate, being well suitable for heavy clay soil, wasteland and weedy field as well.
Having absorbed all advantages from exotic machines of same kind, this harrow has adopted combined structure whose rigid frame is welded with rectangular tube.equipped with hydraulic up-and-down road wheels.

YJ-BZY disc offset trailing heavy--duty harrow is designed for field work as crop residue processing before tillage, breaking hardened and impervious soil surface, crushing and spreading straw, shattering soil after tillage, planting the land and preserving soil moisture. It can be used on cultivated land for tillage, harrowing inst-head of plough.This harrow has high harrowing capacity with reasonable utilization of power, great ability to penetrate, being well suitable for heavy clay soil, wasteland and weedy field as well.
Having absorbed all advantages from exotic machines of same kind, this harrow has adopted combined structure whose rigid frame is welded with rectangular tube.equipped with hydraulic up-and-down road wheels.
Product Parameters

Type	1BZ(BX)-1.8	1BZ(BX)-2.0	1BZ(BX)-2.2	1BZ(BX)-2.5	1BZ(BX)-3.0	1BZ(BX)-3.4
Working width (mm)	1800	2000	2200	2500	3000	3400
Working depth (mm)	180-220
No. of disc (pc)	16	18	20	24	28	32
Dia.Of disc(mm)	660
Weight (kg)	800	850	1050	1200	1350	1550
Linkage	Semi-mounted
Matched power (hp)	70-80	80-100	80-100	80-100	100-120	100-120

Type	YJ-BZY1.6	YJ-BZY1.8	YJ-BZY2.0	YJ-BZY2.2	YJ-BZY2.5	YJ-BZY3.0	YJ-BZY3.4	YJ-BZY3.6	YJ-BZY3.8
Working width (mm)	1600	1800	2000	2200	2500	3000	3400	3600	3800
Working depth (mm)	180-220
Disc quantity (pc)	14	16	18	20	24	28	32	34	36
Dia. Of disc (mm)	610/660
Dia.of round axle (mm)	38				42
Tire type	European Tires 10.0/75-15.3
Weight (kg)	1400	1500	1650	1750	1950	2050	2200	2300	2400
Linkage	Trailed
Matched power (hp)	≥60	≥65	≥70	≥80	≥90	≥100	≥120	130-160	140-180
Ground clearance (mm)	≥260

Type	1BZ(G)-3.0	1BZ(G)-3.5	1BZ(G)-4.0	1BZ(G)-4.5	1BZ(G)-5.5	1BZ(G)-6.2	1BZ(G)-6.5	1BZ(G)-7.0	1BZ(G)-7.8
Working width (mm)	3000	3500	4000	4500	5500	6200	6500	7000	7800
Working depth (mm)	220-270
Disc quantity (pc)	24	28	32	36	44	48	50	54	60
Dia. Of disc (mm)	710
Dia.of round axle (mm)	45
Tire type	European Tires 11.5/80-15.3				European Tires 400/60-15.5
Weight (kg)	2350	2500	2750	2900	4500	4800	5000	5300	5800
Linkage	Trailed
Matched power (hp)	≥120	≥140	≥180	≥200	≥200	≥220	≥250	≥300
Ground clearance (mm)	≥300

Type	1BQX-0.6	1BQX-0.8	1BQX-1.1	1BQX-1.3	1BQX-1.5	1BQX-1.7	1BQX-2.0	1BQX-2.2	1BQX-2.3	1BQX-3.3	1BQX-3.4	1BQX-5.0
Working width (mm)	600	800	1100	1300	1500	1700	2000	2200	2300	3300	3400	5000
Working depth (mm)	100-140
No. of disc (pc)	8	10	12	14	16	18	20	22	24	40	42	60
Dia.Of disc(mm)	460
Weight (kg)	100	120	200	220	250	270	380	400	420	1000	1250	1550
Linkage	Three point mounted									Trailed
Matched power (hp)	10-18Walking tractor	12-18Walking tractor	12-18	15-18	20-25	25-30	35-40	40-45	55	80-100		100

Type	1BQDX-1.3	1BQDX-1.6	1BQDX-2.0	1BQDX-2.4	1BQDX-2.8	1BQDX-3.0
Working width (mm)	1300	1600	2000	2400	2800	3000
Working depth (mm)	100-140
No. of disc (pc)	16	20	24	28	32	36
Dia.Of disc(mm)	460
Weight (kg)	300	340	400	440	600	650
Linkage	Three point mounted
Matched power (hp)	35-40	40-45	50-60	60-75	75-85	85-100

Type	1BJX-1.1	1BJX-1.3	1BJX-1.5	1BJX-1.7	1BJX-2.0	1BJX-2.2	1BJX-2.4	1BJX-2.5	1BJX-2.8	1BJX-4.4	1BJX-4.8	1BJX-5.3	1BJX-6.0
Working width (mm)	1100	1300	1500	1700	2000	2200	2400	2500	2800	4400	4800	5300	6000
Working depth (mm)	140
No. of disc (pc)	10	12	14	16	18	20	22	24	26	40	44	48	56
Dia.Of disc(mm)	560
Weight (kg)	320	350	400	450	480	540	650	700	720	1750	1850	2300	2600
Linkage	TypeIIThree point mounted									Trailed
Matched power (hp)	25-30	30-40	40	45	50-55	55-60	65-70	75	80	75-100	≥120	≥140

Type	1BJXS-1.3	1BJXS-1.5	1BJXS-1.7	1BJXS-2.0	1BJXS-2.2	1BJXS-2.5
Working width (mm)	1400	1600	1800	2000	2200	2400
Working depth (mm)	140-200
No. of disc (pc)	12	14	16	18	20	22
Dia.Of disc(mm)	560/610
Weight (kg)	380	420	460	500	620	700
Linkage	TypeIIThree point mounted
Matched power (hp)	25-35	35-40	40-45	50-60	55-70	70-80

Type	1BZ-1.6	1BZ-1.8	1BZ-2.0	1BZ-2.2	1BZ-2.5	1BZ-3.0	1BZ-3.4	1BZ-4.0	1BZ-4.4
Working width (mm)	1600	1800	2000	2200	2500	3000	3400	4000	4400
Working depth (mm)	200
No. of disc (pc)	14	16	18	20	24	28	32	36	40
Dia.Of disc(mm)	660
Weight (kg)	1100	1200	1300	1350	1450	1550	1750	2150	2300
Linkage	Trailed
Matched power (hp)	65-70	75	80-100	90-100	90-100	100-120	120-140	140-160

Type	1BZD-2.5	1BZD-2.8	1BZD-3.1	1BZD-3.7	1BZD-4.1	1BZD-4.7
Working width (mm)	2500	2800	3100	3700	4100	4700
Working depth (mm)	180-220
No. of disc (pc)	22	26	28	32	36	42
Dia.Of disc(mm)	660
Weight (kg)	1800	2000	2500	2800	3000	3400
Linkage	Trailed
Matched power (hp)	80-100		120-140		120-160
