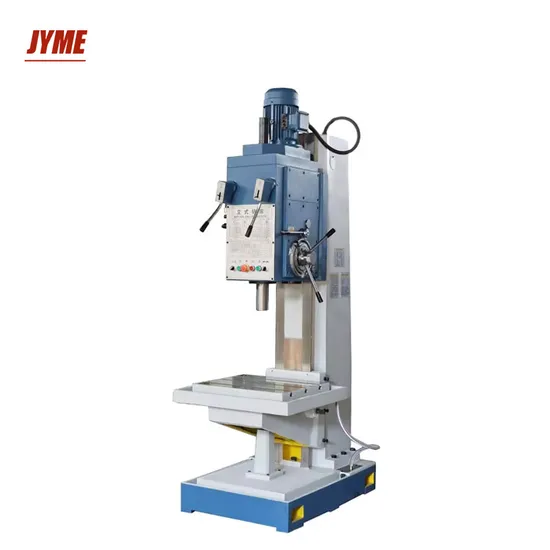

Z5150 China Small Gear Head Square Columns Vertical Drilling Machine
| US$3,400.00-3,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z5150
Power Source
Manual
Automatic Grade
Manual
Setting Mode
Table
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Max Drilling Dia
50mm
Spindle Taper
Mt5
Spindle Stroke
250mm
Headstock Travel (Manual)
200mm
Table Size
560X480mm
Table Vertical Travel
300mm
Main Motor Power
3kw
Overall Dimension
1090*905*2465mm
N/W
1350kg
Transport Package
Wood CTN
Specification
1090*905*2465mm
Trademark
JYME
Origin
China
Production Capacity
1000
Product Description
1.This vertical drilling machine is universal type machine tool. This machine is suitable for drilling, reaming, milling, drilling, boring, tapping countersunk hole etc.. Automatic reverse feed spindle tapping and fretting, for blind and deep hole is very convenient. Widely used in machinery manufacturing, workshop production and construction processing, etc..2.This machine tool has the advantages of high efficiency, good rigidity, high precision, low noise, wide speed range, high speed operation, novel appearance, convenient maintenance and so on.
Parameters:
| Specifications | Z5140 | Z5150 |
| Max drilling dia | 40mm | 50mm |
| Spindle taper | MT4 | MT5 |
| Spindle stroke | 250mm | 250mm |
| Headstock travel (manual) | 200mm | 200mm |
| Spindle speeds | 31.5-1400r/min 12 steps | 31.5-1400r/min 12 steps |
| Feed range | 0.056-1.80mm/r 9 steps | 0.056-1.80mm/r 9 steps |
| Table size | 560x480mm | 560x480mm |
| Table vertical travel | 300mm | 300mm |
| Max.distance spindle nose to table | 750mm | 750mm |
| Main motor power | 3kw | 3kw |
| Overall dimension | 1090*905*2465mm | 1090*905*2465mm |
| N/W | 1300kg | 1350kg |
