High Quality European Technology Plywood Production Line for Sales to Inida

Product Description

Detailed Photos
Product Parameters
PRODUCT PARAMETER

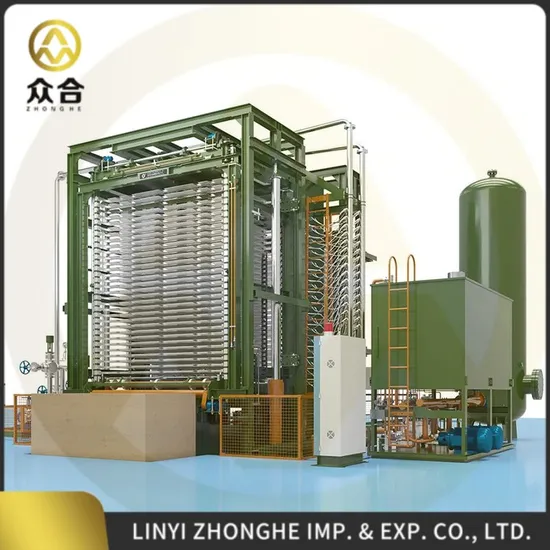

FULL AUTOMATIC 36 PLATES 800 TONS HOT PRESS PRODUCTION LINE
PART 01: FULL AUTOMATIC LOADING SYSTEM TECHNICAL SPECIFICATIONS
1	Standard unit size	1220*2440 mm, 1 complete unit
2	Opening size	80 mm
3	Opening number	35
4	Lifting pistons	diameter 140 mm, stroke 4450 mm, 2 pieces
5	Working stroke	4450 mm
6	Lifting speed	18 meters per minute
7	Main frame size	4220*2020*11300 mm
8	In feeding motor power	two hydraulic motors
9	In feeding roller conveyor	1 unit
10	In feeding roller conveyor motor	0.75 KW
11	In feeding Lift table and automatic sucker	1 unit
12	Weight	14.5 tons
PART 02 : 36 PRESS PLATES 800 TONS HOT PRESS MAIN TECHNICAL PARAMETERS
1	Norminal pressure	800 Tons (8000 KN )
2	Hot press plate size	2700*1370*42 mm, material Manganese steel Q355
3	Hot press plate steam input style	double inlet, double outlet
4	Unit part size	1220*2440 mm, 1 unit
5	Opening size	80 mm
6	Opening number	35
7	Big pistons	diameter 320 mm, stroke 2950 mm, 4 pieces
8	Small pistons	diameter 180 mm, stroke 2950 mm, 2 pieces
9	Working stroke	2800 mm
10	Unit working pressure	21 kg/cm²
11	No-load closingtime	300 mm/s
12	Machine size	3580*1370*7400 mm
13	Hydraulic oil tank size	2550*1250*1800 mm
14	Hydraulic oil tank volume	3 cubic meters
15	Hydraulic oil tank weight	2000 kg
16	Low pressure pump motor power	22 KW, 2 pieces
17	High pressure pump motor power	11 KW, 1 piece
18	Plywood In put and out put oil pump motor	7.5 KW, 1 piece
19	Lifting motor power	2.2 KW, 1 piece
20	Total motor power	64.7 KW
21	Workshop height	7500 mm
22	Foundation depth	5050 mm
23	Total weight	73 Tons
PART 03: FULL AUTOMATIC UNLOADING SYSTEM TECHNICIAN SPECIFICATIONS
1	Standard part size	1220*2440 mm, 1 complete set
2	Opening size	80 mm
3	Opening number	30
4	Lifting pistons	diameter 140 mm, stroke 4950 mm, 2 pieces
5	Working stroke	4950 mm
6	Lifting speed	18 meters per minute
7	Machine size	4200*2020*11300 mm
8	Output driving power	hydraulic motor
9	Output lift table	1 unit
10	Automatic plywood STACKER	1 unit
11	Out put roller conveyor motor power	0.75 KW
12	Weight	14.5 tons
PART 04: Frame type Automatic Stacker Specifications
1	plywood size	1220*2440 mm
2	stacking height	1200 mm
3	Stacking power	gear reducer
4	Motor power	0.75 KW
5	Stacking speed	2 seconds per sheet
6	Machine size	3050*3200*2080 mm
7	Out put lift table	1 unit

Company Profile
Linyi Zhonghe Machinery Company is professional in solutions of wood veneer production machine, plywood production machine, particle board machine, MDF board machine, saw mill machine, wood veneer, plywood, other related material and parts for wood processing industry, construction material and machine, etc.The detail business range is as following:1-wood veneer production machine:Log cutting machine, log debarker, core veneer peeling machine, face veneer peeling machine, wood veneer dryer, wood veneer clipper, wood veneer stacker, veneer tape, etc.2-plywood production machine, film faced plywood machine:Core veneer composer, putty spreader, veneer sanding machine, veneer jointer, glue powder, glue making machine, glue mixer, glue spreader, base plywood forming machine, cold press, hot press, bolier, Double Dimension saw, sanding machine, wood dust collector, stainless steel plates, cushion pads, etc.3- Particle board machine and MDF board machine.4-Saw mill machine: Vertical band saw, horizontal band saw, saw blade sharpener.
Certifications

Packaging & Shipping
FAQ
FAQ
1. Rich experience and professional design
We have abundant experience in plywood production, also has many years exporting experience. Each equipment location,passage will be designed reasonably to meet safety production.
2. Competitive price
ZHONGHE has own factory,with the same configuration,the price is competitive.And we are familiar with the Chinese market,our suppliers provide high-quality cost-effective accessories.
3. Timely after-sale service
We have over 15 skilled technicians offer after-sale service, will be sent to the customer's factory to assist in the installation and debugging of the flooring production line until it runs well,and asked for quick responses to customer questions.
4. One-stop solution
ZHONGHE provideS one-stop service, including market analysis and professional technical consultation, raw materials ,equipment installation, personnel training.Professional after-salesservice team,renovation of old equipment,make turnkey projects.
5. Quality control
Strict quality control of equipment in production and before leaving the factory, and a complete quality management system for purchased parts.Customers are always welcome to make videos or come to the factory to know the production status.
