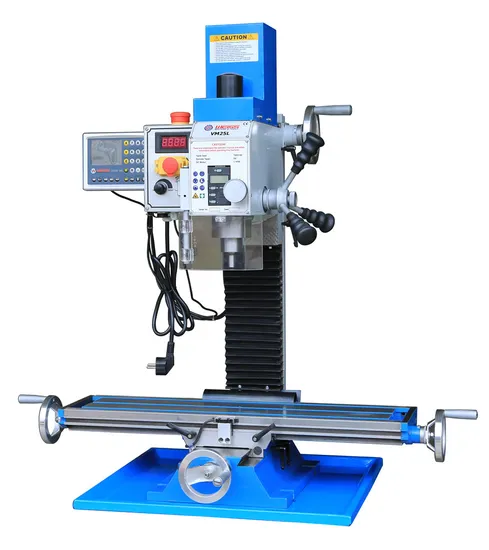

Weiss Vm25L High Quality Manual Mills with Variable Speed

Product Description

Recommended Products
VM18L VM32L VM32B

1. WEISS LATEST generation mill, excellent value, and good features found on larger mill drills, easyfor novice, great for a dedicated.
2. Big powerful 1.5 HP (1100W) Brushless DC Variable Speed Motor
3. Single speed tooth belt driving system with 100-2250 RPM speed, provides easy and reliable operation, super silence while runnning
4. Super-rigid precision-ground dovetail headstock column and table ways, precision handwheel control for X, Y, and Z-axis
5. All leadscrews are true inch pitch screws, larger dials with .002" graduate for easier reading
Want TOP quality from China? Come to WEISS, you can get the excellent value!

SPECIFICATIONS		Standard Accessories	Optional Accessories
WEISS MODEL	VM25L
Item No.	10203275	Drill chuck 3-16 B16	Tapping Function
Max. drilling capacity	25mm	Drawbar	Keyless Drill Chuck 3-16mm
Max. end milling capacity	16mm	Arbor MT3/B16-M12	ER 25 Collet Chucks MT3(8pcs)
Max. face milling capacity	63mm	Digital Depth Ruler	Vice BMS100
Table size	700x180mm	Spindle Cover with Micro Switch	HSS 10 pcs Drill sets
Table travel (X,Y)	480X170mm	Toolbox and tools	End Mill Sets 7pcs 4-16mm
T-slot	3x12mm		3-Axis DRO(Magnetic Scales)
Spindle taper	MT3 or R8		58pcs clamping kits M12
Spindle stroke	50mm		Oil Tray
Step of spindle speeds	Variable		Stand
Range of spindle speeds	100-2250rpm		Luxury Stand
Spindle incline angle	±90°		Power feed
Distance from spindle to column	190mm
Distance from spindle nose to table	320mm
Motor	1100W
Packing size	730x770x900mm
Net weight	120KG

Spindle
· Variable speed enables to operate easily
· Spindle is supported by high precision taper roller bearing
· Spindle RPM can be monitored on the digital readout.
· Spindle movement can be monitored on depth ruler in both inch or metric way

Brushless Motor

· VM25L has 1.5 HP POWERFUL brushless motor with silent running. Compare to old DC motor with brush, no need to change the carbon brush any more.
· High quality electronics used throughout machine for long term reliability
· Brushless motors has high efficiency, low noise (quiet), smooth operation, long life, low maintenance costs. Especially with low energy consumption brings better economic benefits to users
VM25L Precision manual fine down feed can be adjusted with the min. feed rate up to 0.609mm
A clear chip guard with switch-off function on the spindle keeps debris from flying at the operator.
Single speed belt drive system provides more quiet and easy operation
avoid any failure prone plastic gears and the hassle of changing them when stripped(on old version mill)
GATES Tooth Belt provide strong and precision transmission
Tapered gibs with double locks Dovetail:adjustable taper inserts Can be tiltled 90 degress
Factory & Delivery
Exhibition
FAQ
1. What is your Warranty?
1 year, including accessories. We always offer professional technical support and good after sale service.
2. Can we pay by L/C or others?
Yes ,you can make the payment by T/T, Paypal etc.3. What is your payment terms?
30% down-payment after contract ,and 70% payment before shipment, Meanwhite it can be discussed according to your situation.4. What is your lead time?
It depends on different machines with different configurations. Please contact us to confirm it is in stock or not.5. Do you have CE certificate?
Yes, we have CE certification, machine quality is guaranteed.6. Can we purchase the accessories only?
Yes, we sell accessories of our machines as well.
