High Quality Automatic Blade Wall Saw Cutting Brick Wall Cutting Machine

Product Description

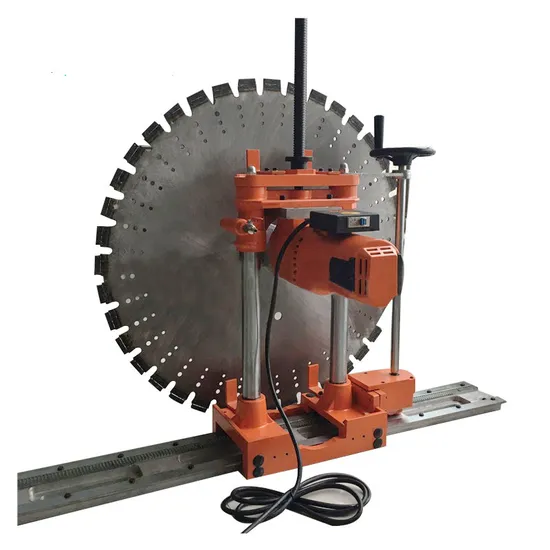

800mm Horizontal Semi-Automatic Concrete Wall Saw Cutting Machine
Product Description Wall cutting machine is mainly used for building or old building renovation, reinforcement, change the design, you can cut the door, window or elevator hole and other large area wall cutting.
The structure of non-destructive, one-time molding, in addition to the traditional master can avoid the construction of the damage to the structure of the building; drilling round hole way consumption time, material, human, but also can save a lot of rest time and cost.
Application of Wall Saw Machine
1. general reinforced concrete walls, board cutting, demolition or the door hole.
2. cutting surface required to be a smooth, straight, beautiful concrete cutting.
3. cutting depth according to the blade size adjustment, the current use
4. 1600 mm blade which Maximum cutting depth up to 600mm.
The Whole Set of Machine Inculdes
1. one frame with an electric motor, 220V, 50Hz, 6580w.
(We could customize the motor according to your requirement.)
2. one disk, 800-1000mm or customized.
3. one saw cover.
4. one set of rails, 1.2m*2 pcs.
5. one set of anchors
Simple Operation Instructions
1. fix the rails on the wall with anchors.
2. put the frame in the rails.
3. fix the disc and saw cover.
4. power on, then move the handle to cut.
(Middle handle is for disc in/out, side handle is for machine movement.)
Warranty of Wall Saw Machine
1. one year.
2. life time free technical support.
Technical parameter

Model	YG-800	YG-1000	YG-1200
Voltage	220v	220v	220v
Power	6200w	6580w	6980w
Max. Cutting depth	320mm	400mm	500mm
Disk diameter	800mm	1000mm	1200mm

Production Details
Angle Display
Success Case
Packaging Details 1. Wrapped by protective film;
2. Packed by standard import & export wooden cases or carton boxes;
3. Customized according to your requirement. Delivery Time Within one week

Shipping
Port: Tianjin, Qingdao, Shanghai or other ports according to your requirements.
Sea freight: FOB/CIF/DDU quotation are all available.
Transport method: By logistics; by automobile; by train; by shipping; by air etc.
Company Information
Henan Yugong Machinery Co., Ltd. is a large machinery manufacturing enterprise which focuses on research and development, production and sales of mining, tunnel construction, road and bridge construction equipment and so on.

We believe that good quality can give us survival, thus we only provide you with top products. All the products with high quality meet international standards and are highly estimated by all clients at home and abroad.

All the staff in our company are professionally trained, so we can recommend you the most appropriate equipment. Every machine will be strictly examined before delivery. Any question about the machine will be replied within 24 hours. Welcome you to be our new client!
