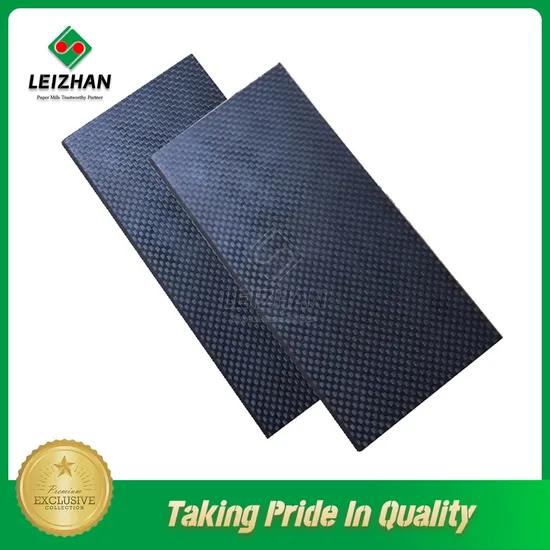

C20 Carbon Fiber HDPE Epo Cleaning Creping Doctor Blade
| US$200.00-3,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
LZDB
Certification
RoHS, ISO 9001:2000, CE
Surface Treatment
Polishing
Manufacturing Process
Cnc Milling
Material
Stainless Steel
Type
Steel/Carbon&Glass Fiber/ HDPE/ Epoxy Resin
Function
Roller and Dryer Cylinder Cleaning
Delivery Time
20 Days
OEM Service
Support
Transport Package
Standard Seaworthy Package
Specification
Customized
Trademark
LEIZHAN
Origin
China
HS Code
84399900
Production Capacity
5000PCS /Year
Product Description
Product DescriptionPaper Machine Doctor Blade
Leizhan offers a comprehensive range of doctor blades for all types of machine positions and process needs. The continuous testing of blade materials and development of blades ensures the reliability and high quality of our doctor blades.All our blades are ranged according to their functionality. Economy range blades are designed to meet today's quality demands at competitive prices. Doctor blades in the Durability range are designed for maximum blade lifetime. The Performance range includes blades with specific superior features like low friction, high heat resistance, or effective cleaning properties.
Detailed Photos
Product Parameters
Analysis of common problems and countermeasures
| Problem | Reason | Measure |
| Uneven wear, frequent blade replacement | 1. The surface of the roller or dryer is uneven 2. The doctor holder is damaged or dirty 3. Sediment | 1. Use a softer blade 2. Clean, repair, or replace the doctor holder 3. Use abrasive blade |
| Excessive wear on the middle or edge of the blade | 1. The blade is not installed on the top of the roller 2. The old blade sinks (or leaves) the roller or dryer | 1. Refit or add a gasket at the back of the blade if necessary 2. Replace the old and sunken blade |
| Excessive wear at one end of the blade | The displacement of the blade is not parallel to the axial direction of the roller or dryer | Add gasket, if necessary, move bearing and bracket to adjust scraper parallel to the axial direction |
| The blade is worn evenly, but the end face is rough | 1. There is a deposit on the surface of the roller or dryer 2. The pressure of the blade is too high 3. The material of the blade is too hard | 1. Use an abrasive blade when necessary 2. Reduce the pressure 3. Use a slightly soft blade |
| Excessive wear in the sheet area | The sheet leaves sediment on the roller or dryer | 1. Use an abrasive blade when necessary 2. Trim the edge of the blade frequently 3. Use a blade with a slotted end to prevent excessive pressure on both ends of the roller or dryer |
| Excessive wear out of sheet area | The sheet lubricates the roller or dryer | Use a blade with a slotted end |
| Local depression | The blade is damaged, electrostatic (discharge/ electrolysis /heating) | Insulate the blade from the holder or use a non-metallic blade |
| The blade produces a burr | 1. The material of the blade is too soft 2. The pressure is too high 3. The angle of the blade is too small | 1. Use a slightly hard scraper 2. Reduce the pressure 3. Adjust the bearing or bracket to increase the angle, and use the instrument to check and correct the angle |
