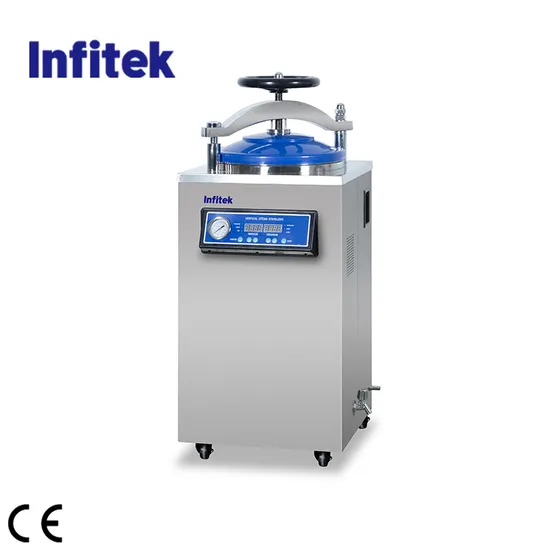

Infitek Class N Autoclave Hand Wheel Type Vertical Pressure Steam Sterilizer Autoclave

Product Description

Infitek CE Certified Class N Autoclave hand wheel type vertical Pressure Steam sterilizer autoclave 35L / 50L / 75L / 100L Features Hand wheel translation and quick opening structure,digital displayed automatic type High quality stainless steel material Microcomputer automatic control, arbitrary setting sterilization parameters. Safety interlocking device Digital display and Touch buttons Standard test interface Self-expanding seal With automatic protection function: over temperature protection; over pressure self discharge protection ; low water level protection; anti dry burning. With stainless steel bucket or basket Buzzer reminder after sterilization, automatic stop. Automatic discharge of cold air, automatic steam exhaust after sterilization. Optional automatic water inlet function Specifications

Model	STV-A35I	STV-A50I	STV-A75I	STV-A100I
Volume	35L	50L	75L	100L
Power	2.5kW	3.5kW	4.5kW	4.5kW
Voltage	AC 220/110V,50/60Hz
Design pressure	0.25MPa
Design temperature	139ºC
Rated working pressure	0.22MPa
Rated working temperature	134ºC
Sterilization temperature	116ºC~134ºC
Sterilization time setting range	4~120 min
Chamber volume(mm)	Ø350*400	Ø350*525	Ø400*625	Ø450*650
Bucket dimension(mm)	Ø330*320	Ø320*240*2	Ø360*280*2	Ø410*300*2
Basket dimension(mm)(optional)	Ø320*350	Ø320*240*2	Ø360*280*2	Ø410*300*2
Outer dimension(mm)	480*480*1000	480*480*1120	525*525*1190	555*555*1250
Package Dimension(W*D*H)(mm)	580*630*1130	650*600*1260	630*680*1350	710*660*1420
N.W. / G.W. (kg)	58/90	85/107	90/138	106/150

Packaging & Shipping Certifications
About Us
FAQ Q: How about quality of the goods?
A:
All the running products comply with CE standards.
Independent quality inspection team, conducting multiple inspections and random inspections from parts supply to product dispatch.
Well-known third-party testing service available, such as SGS, BV, and TUV, etc.
Q: What are your pre- and after-sales services?
A:
Timely reply to pre-sales enquiries
Real-time update of manufacturing and shipment status
Contracted third-party maintenance company in over 60 countries
Assured availability of parts supply for 10 years at least
Q: Is OEM service available.
A: Most of the running products are available for OEM customization, including logo, package and function, if attainable, customization.
Q: How long is the lead time:
A: Generally, the lead time for most stocked products is about 7~15 days, vary by models and production schedule. For those non-stocked products, the manufacturing lead time is around 20 days.
