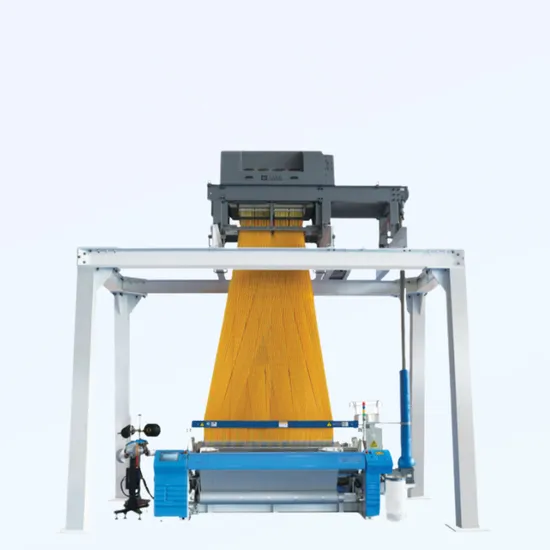

Lenado 2020e High-Efficiency and High-Speed Jacquard Air Jet Machine
| US$10,000.00-50,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Lenado 2020E
Computerized
Computerized
Precision
High Precision
Certification
ISO9001: 2000
Warranty
1 Year
Customized
Customized
Condition
New
After-sales Service
One Year From The Date of Shipment
Width
190,210,230,260,280,340,360(Cm)
Speed
1200 Rounds Per Minute
Weft Selection
2c/4c/6c/8c
Cutter
Mechanical Cutter
Transport Package
Export Packing
Specification
550cm*200cm*250cm
Trademark
Lenado
Origin
China
HS Code
8446309000
Production Capacity
1000pieces/Year
Product Description
| Technical Specifications | |
| Width | 190,210,230,260,280,340,360(cm) |
| useful reed width | Same as nominal width Max reduction 60cm(190-260cm) |
| Same as nominal width Max reduction 80cm(280-360cm) | |
| Speed | 1200 rounds per minute |
| Weft selection | 2c/4c/6c/8c |
| Drive | Superstarting moter |
| Direct drive stop by electromagnet brake | |
| Weft insertion | Main and sub-nozzles combined system |
| Auxiliary main nozzle | |
| Profiled reed | |
| Shedding | Positive cam: shaft up to 10 |
| Dobby: shaft up to 20 | |
| electronic jacquard φ800mm | |
| Let-off Flange Dia | Servo electronic let-off |
| Positive easing | |
| Servo electronic take-up | |
| Take up Max take up Dia. | φ600mm |
| Take up Pick density | 9.8-118 picks/cm |
| Take up Length count | board dispiay. fixed meassure stop |
| Take up Side brace | overhead |
| Beating | Crank beating |
| 4 links(Read space 190-280cm) | |
| 6 links(Read space 280-360cm) | |
| intermediate rocking supporter | |
| Filling Supply Stand | Floor-mounted for 4packages(2c), for8 (4c)for10(6c) |
| Cutter | Mechanical cutter |
| Lubrication | Oil bath system for main drive parts, centralized lubrication(manual grease) |
| Auto stop Motion Weft broken | Reflective weft feeler |
| Auto stop Motion Warp broke | Six rows Electric fleeling system |
| Others | Stop for selvage and catch cord yarn |
| Stop cause indication | Message on board, 4-colors lamp for indicating cause |
| Middle scissors | Mechanical type(Tisser double width) |
PRODUCT DISPLAY
SALES AND SERVICE NETWORK
FAQ
Q1:Are you a manufacturer or Trade company?
We are a professional manufacturer holding our own International Trade Department,for that we can understand customer's needs and offer a reasonable price.
Q2:Are you available for on-the-spot invitation?
we do welcome our new and old friends come here to have a visitation.Besides,we would send you our exposition and relative informantion to promote a face-to-face meeting if you'd like to
.
Q3:Is the price offered changeable?
We offer reasonable price for every client,and the price is changeable according to purchasing amount.
Q4:How about the quality?
The main subassembly and raw materials are all supplied by large companies.Key parts are research and developed by our own staff.Professional assembly line work and strict quality test system can ensure your high quality requirement.
Q5:How's the after-sale service?
We offer engineers available to service overseas under merchandisers supervision and translation.
