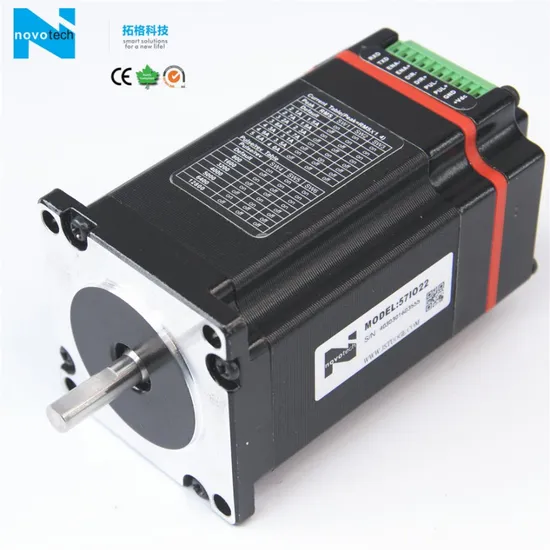

Best 4 Wire/4 Line Stepper Motor With Driver
Novotech's stepper driver represents the highest level in domestic.,with 32-bit DSP technology, parameter auto adjustment function, automatic optimization of operating parameters for different motors, to maximize motor performance. Built-in Micro-sub-technology, in the low micro-step conditions, the motor can run smoothly, temperature rise and noise are 30% to 50% lower than traditional driver,and the high speed torque increases 20%.
Model Guide

Motor type		57IO09-09	57IO22-09	57IO09	57IO22
Holding torque		1.0N•M	2.2N•M	1.0N•M	2.2N•M
Motor current		4.0A	4.8A	5.2A	5.6A
Step angle / motor pole pair		0.9°/100 pairs pole	0.9°/100 pairs pole	1.8°/50 pairs pole	1.8°/50 pairs pole
Recommended application		In the low-speed has small vibration,operation smooth		In the high-speed output strength is good
Operation voltage		12-50Vdc,typical voltage 36Vdc
Overvoltage protection		66V±2V
Voltage control method		32-bit DSP control technology
Pulse limit frequency		500KHz(factory default 200KHz)
Protection		overcurrent, overvoltage and undervoltage alarm
Input signal		Pulse, direction and enable signal receive singleend/differential input,Interface level is only 5Vdc, other levels need external current limiting resistor
Subdivision		Default 1600 / rev, through the DIP switch or debugging software to set the subdivision (200-51200)

Subdivision Setting

Step/Rev.	SW1	SW2	SW3
De4fault[400]	ON	ON	ON
800	OFF	ON	ON
1600	ON	OFF	ON
3200	OFF	OFF	ON
4000	ON	ON	OFF
5000	OFF	ON	OFF
6400	ON	OFF	OFF
12800	OFF	OFF	OFF

Current setting

Output peak current	Output RMS current	SW1	SW2	SW3
Default 1.5A[PK]		ON	ON	ON
0.7A	0.50A	OFF	ON	ON
1.0A	0.71A	ON	OFF	ON
1.2A	0.85A	OFF	OFF	ON
1.5A	1.00A	ON	ON	OFF
1.8A	1.28A	OFF	ON	OFF
2.0A	1.42A	ON	OFF	OFF
2.2A	1.58A	OFF	OFF	OFF

Note : All above is normally used, and we can customize according to your request or choose the suitable model for you, please tell us following parameters: current, voltage, holding torque, body length,the application area.
Application
Our products are widely used in 3d and inject printers, CNC routers, Engraving Machines, Stage Lighting Control, Security Surveillance, Video Equipment, Laser workstation, Carving Machine, Office Automation,Smart Toy, Digital Controlled Machinery,Analytical and Medical Instruments, Textile Equipment, Embroidery Machine, Precision Telescope Positioning Systems, High Speed Dome Camera,Robotic and other automatic equipment.
Packaging and shipping
1.Outer packing: Standard export carton with required shipping marks
2.Inner packing: Waterproof packing with shock absorbing EPE and cardboard surrounded
3.As per the clients requirements
Our service
1.Working time : 8:00 a.m - 10:00 p.m .Any questions, please tell us freely, we will be reply you asap.
2.Lead time : For samples, 2 to 5 days will be OK. For mass production, the lead time depend on the quantities you need.
3.Warrantity period : 18 months and Life-long maintenance service for the product.
4.We accept products customize.
FAQ
Q1: How to choose the suitable stepper or servo motor?
A1: There are serveral important items: size, length, holding torque, voltage, current etc.After confirm them and told us, we can choose the suitable one for you.
Q2: Any other methods to finalize the model?
A2: Sure, you can send us the model you are using, we can help you find the suitable one.
Q3:How to guarantee the Quality of Industrial Parts?
A3: We have the integrated system for industrial parts quality control. We have IQC (incoming quality control), IPQCS (in process quality control section), FQC (final quality control) and OQC (out-going quality control) to control each process of industrial parts prodution.
Q4:What's the Advantage of Your Parts for Industry Products?
A4:1.The advantage of our products is the competitive prices, fast delivery and high quality. Our
employees are responsible-oriented, friendly-oriented,and diligent-oriented. Our products are featured by strict tolerance, smooth finish and long service time.
2.Before we send out the goods,we check them more than three times.
