Computerized Textile Knitting Equipment for Long-Lasting Fabric Development High Speed

Product Description

DISCOVER GSJX EMBRACE KNITTER EXPERT KNITTING MACHINERYWith a legacy of 25 years marked by relentless product enhancements and unmatched service advancements,
Guosheng has ascended to the zenith of smart knitting machine manufacturers globally.
Our unwavering commitment focuses on elevating the performance of our entire product range,
collaborating with knitters to consistently drive the global standardization
of knitting machinery.
WHY CHOOSE US Benefit from complimentary machine operation training and pattern-designing guidance immediately upon
purchasing our machine.Guosheng is deeply rooted in mature and attentive service principles, offering free machine operation training
and pattern-designing guidance to ensure a seamless and worry-free experience for our valued customers.
One Year Warranty PeriodOur comprehensive one-year warranty covers all aspects except for typical wear parts (knitting needle, brush, roller, mouth, seat).
Purchase in bulk at competitive rates and enjoy free door-to-door service by our technicians when you acquire three full containers.
Guosheng offers stable inventory and high-efficiency production capacity,ensuring a satisfactory purchasing experience by balancing both quantity and quality. Our robust
inventory system meets every customer's needs, guaranteeing delivery within approximately 10 days.
We also accommodate private orders, and our efficient assembly line significantly reduces delivery times for custom requests.
and remarkably shortens delivery times.
An efficient, high-quality machine you simply must own1) Superior servo drive assembly allows fast carriage cornering, boosting knitting efficiency by over 10%.
2) Precisely engineered needle bed tooth angle facilitates rapid, autonomous fabric release.
3) Duplex table technology for thick needles, achieving double distance and substantially expanding table scope.
4) Precision-forged triangle baseboard, crafted from premium materials, with components made by Taiwanese manufacturers based on our innovative design program. Optimized surface pressure guarantees smoother, more consistently dense fabrics.
PRODUCT DESCRIPTION PRODUCT APPLICATION

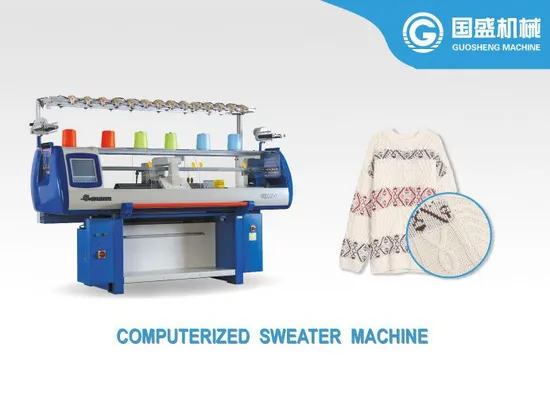

This is a computerized flat knitting machine featuring a single carriage and double system, providing an economic solution. Utilizing digital technology, it achieves transfers, tuck, eyelet stitch, jacquard, visible shape, hidden shape, and other standard pattern knitting functions.
Flat knitting machines can produce basic stitches such as plain stitch, rib fabric, links and links, interlock stitch, and more.

SPECIFICATIONS FOR FLAT KNITTING MACHINE
Model	GSJX-2-52
Gauge	3G,3.5G,357G,5G,6G,7G,8G,9G,10G,12G,13G,14G,15G
Knitting Machine	Double System,Single Carriage
Knitting Width	44inch,52inch,60inch,80inch,100inch
Knitting Speed	Max 1.2m/s
Knitting Function	Tranfer,Tuck,Miss,Jacquard,Intarsia,Hide or Apparent Shaping
Stitch Density	Stitch system controlled by stepping motor,32 section stitch selectable,adjustable scope supported by subdivision technology:0-650.
Racking	Controlled by AC servo motor,racking within 2 inches and with fine adjusting function.
Drive System	Synchronous belt drive,AC servo system.
Needle Selection	Controlled by computer,electric magnet needle choose system with high efficiency.
Yarn Carrier	2*8 yarn carriers on each side of 4 guide rails,shiftable on any needle position.
Take Down Roller	Programmed instruction controlled by stepping motor,32 section levels selection adjustable area:0-100.
Protection System	The machine will automatically alarm if yarn breaking,float yarn,rewind,end of knitting,fail of racking,needle breakage and error programming occur ect.
Control System	1.Adopt LCD screen,input device:USB,system memory 256MB,a great amount of design files can be stored. 2.Monitoring menu,each knid of operating parameter,can be shown,and they can be adjusted at any time when the machine is running. 3.Design system is visual and easy to understand and upgrad. 4.Multi language version ,there are chinese,english etc.
Power	220v,single-phase,have memorizing function at the power-off moment.

CERTIFICATIONS
OUR SERVICE
PRE-SALES SERVICE AFTER-SALES SERVICE * Inquiry and consulting support. * Training on machine installation and usage.
* Sample testing support.
* Factory visits. * Engineers available for overseas machinery service.
PACKING & DELIVERY We handle every machine with utmost care, treating each product as if it were our own child.To ensure the highest safety of your purchased products during transportation, we utilize advanced vacuum packaging techniques to prevent moisture and rust. Furthermore, we provide various comprehensive packaging methods tailored to your specific requirements, ensuring ease in loading, unloading, and storage. This not only saves time in checking and delivery but also guarantees that you receive the correct product at the right time, every time.
