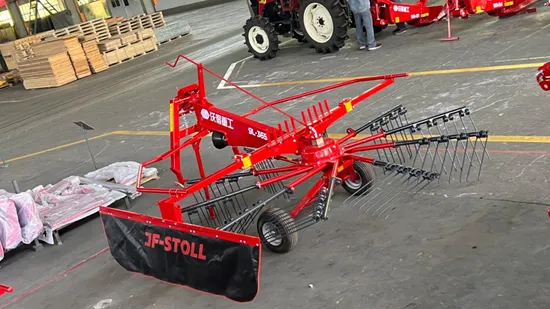

Rake Machine Fmworld 9L365 Rake

Product Description

Our rake machine is engineered for efficiency, durability, and ease of use, making it an essential tool for modern agriculture. With its robust construction and advanced technology, the FMWORLD Rake Machine ensures optimal performance in all types of terrain. Its high-capacity raking system provides superior collection of hay, straw, and grass, significantly reducing labor time and increasing productivity.Our rake machine is engineered for efficiency, durability, and ease of use, making it an essential tool for modern agriculture. With its robust construction and advanced technology, the FMWORLD Rake Machine ensures optimal performance in all types of terrain. Its high-capacity raking system provides superior collection of hay, straw, and grass, significantly reducing labor time and increasing productivity.
Specifications:

model	9L285 rake	9L315 rake	9L365 rake	9L655ASL rake	9L655DS rake
Drive mode	Tractor pulling/PTO output/540r/min	Tractor pulling/PTO output/540r/min	Tractor pulling/PTO output/540r/min	Tractor pulling/PTO output/540r/min	Tractor pulling/PTO output/540r/min
Suspension type	Rear	Rear	Rear	Rear	Rear
Installation type	Three point opening and closing	Three point opening and closing	Three point opening and closing	Three point opening and closing	Three point opening and closing
Minimum traction force (KW)	≥20KW(≥27.2hp)	≥20KW(≥27.2hp)	≥20KW(≥27.2hp)	≥44KW(≥60hp)	≥44KW(≥60hp)
Working range(mm)	2800	3100	3600	6550	6550
Working speed (km/h)	5-20	5-20	5-20	6-12	6-12
Working dimensions (mm)	3100*3100*1600	3300*3200*1700	3300*3700*1800	5100*6500*1250	5100*6500*1250
Transportation dimensions (mm)	3100*1600*1600	3300*1600*1700	3300*1650*1800	3500*2900*3600(After folding)	3500*2900*3600(After folding)
Machine weight (KG)	325	345	405	1220	915
Turning diameter (mm)	2800	2800	2920	2900	2900
Number of turntables (only)	1	1	1	2	2
Quantity of gear racks per turntable (only)	8(Removable)	9(Removable)	10(Removable)	10(Removable)	10(Removable)
Tire specifications	16*6.50-8	16*6.50-8	16*6.50-8	16/6.5-8	16/6.5-8
center height adjustment	Adjustable	Adjustable	Adjustable	Adjustable	Adjustable
Grass curtain	Curtain	Curtain	Curtain	Curtain	Curtain
