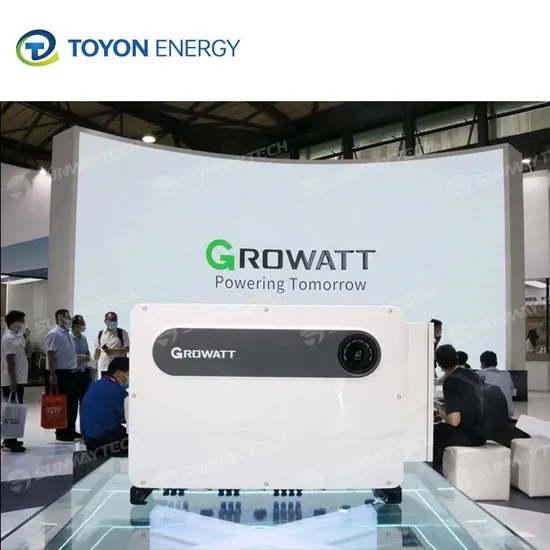

EU Stock Growatt Inverter 3 Phase on Grid Inverter 100kw 110kw 125kw Inverter for Solar Power System

Product Description

Product DescriptionProduct Parameters

Datasheet	MAX 100KTL3-X LV	MAX 110KTL3-X LV	MAX 120KTL3-X LV	MAX 125KTL3-X LV
Input data (DC)
Max. recommended PV power	100000W	110000W	120000W	125000W
Max. DC voltage	1100V
Start voltage	195V
Nominal voltage	600V
MPPT voltage range	180V-1000V
No. of MPP trackers	10
No. of PV strings per MPP tracker	2
Max. input current per MPP tracker	32A
Output data (AC)
Nominal AC voltage	220V/380V, 230V/400V (340-440V)
Max. output current	158.8A @400V167.1A@380V	174.6A @400V183.8A@380V	190.5A @400V200.5A@380V	198.5A@400V208.9A@380V
Adjustable power factor	0.8leading…0.8lagging
THDi	<3%
AC grid connection type	3W+N+PE
Efficiency
MAX. efficiency	98.8%
European efficiency	98.4%	98.5%	98.5%	98.5%
MPPT efficiency	99.9%
Protection devices
DC reverse polarity protection	YES
AC/DC surge protection	YES
AC/DC surge protection	Type II / Type II
General data
Dimensions (W / H / D)	970/640/345mm
Weight	84KG
Cooling	Smart air cooling
Protection degree	IP66
DC connection	H4/MC4 (Max.6mm²)
AC connection	OT Terminal (Max. 240mm²)
Display	LED/WIFI+APP
Warranty: 5 / 10 years	Yes/Optional

Products Series Off Grid Inverter3KW/5KWSingle Phase 220-240V 50/60HzUp to 6 units in parallelOn Grid Inverter3-6KW2 MPPTs
Single Phase 220-240V 50/6HzOn Grid Inverter15-40KW3/4 MPPTs
Three Phase 380-415V 50/6HzOn Grid Inverter50-70KW3 MPPTs
Three Phase 380-415V 50/6HzOn Grid Inverter50-250KW6-10 MPPTs
Three Phase 380-415V/460-500V 50/6HzCertifications
Projects Case Packaging & Shipping

Professional Packing: Carton, Wooden Pallet and Wooden Box.
By Express	TNT, DHL, FedDex, UPS available
By Air	Shenzhen/Shanghai or other Designated Airport
By Sea	Shenzhen, Shanghai, Ningbo or other Designated Port in China

Company Profile

Anhui Tongyuan Environment Energy Saving Co., Ltd. (stock code: 688679) was established on April 15,1999. It was successfully listed on the Science and Technology Innovation Board of the Shanghai Stock Exchange on December 25, 2020. The company is positioned as a "one-stop environmental solution provider" and is committed to providing customers with leading ecological and environmental technology services in China. Toyon Energy Co., Ltd is one business unit of Tongyuan Environment that focuses on the field of new energy, committed to promoting the transformation of traditional energy to green energy. Toyon's business covers residential, commercial, landfill + photovoltaic composite projects, wind power, charging piles, energy storage and other diversified fields, while providing multi scenario integrated application solutions for light storage. Through continuous innovation and technological upgrades, Toyon can provide customers with efficient, reliable, and environmentally friendly new energy products and services, making a positive contribution to achieving sustainable development.

FAQ1.What main products can you provide? We can provide many series of solar products,mainly producing the solar panels, solar inverters,power wall,lithium ionbatteries,gel batteries and also all in one solar system solution according to your needs. 2. How is your technical support? We can provide lifetime online support through WhatsApp/ Wechat/ Email. Any problem after delivery, we will offer you a video call anytime. 3. What about the lead time? We can always deliver within 5-15 working days.The common products we always have the stock, it can be sent out within 15 days. While the big order needs to negotiate the finish production time and promise it to our customers. 4. Can you provide OEM service? Yes, as a professional solar system manufacturer, we can provide customer-made service with OEM and on-site installation comprehensive support, and after-sales services. 5. How can we guarantee quality? We can provide a pre-production sample before mass production and also final inspection before shipment. We can also provide 24-hour after-sales service. Regardless of the time difference, we will solve the problem for you as soon as possible. 6. What's the payment term? Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU.Accepted Payment Type: T/T, L/C, PayPal.
