Tphd2016 High Speed CNC Drilling Machine for Plates and Tube Sheets

Tphd2016 High Speed CNC Drilling Machine for Plates and Tube Sheets

US$85,000.00
1 Piece
US$84,000.00
2+ Pieces

Basic Info.

Model NO.
TPHD2016
Controlling Mode
CNC
Number of Shaft
3
Hole Diameter
<50mm
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Functions
Drilling
Max. Size
2000X1600mm
Max. Drilling Diameter
50mm
Max. Drilling Thickness
120mm
Drilling Speed
30-3000 Rpm
Axis
3
Clamping Type
12 Pics Hydraulic Clamps
Motor Power
15 Kw
Weight
About 14 T
Control System
Siemens CNC Control System
Transport Package
1*40gp Container + Wooden Box
Specification
32 CBM
Trademark
SUNRISE CNC
Origin
China
HS Code
8459210000
Production Capacity
300 Set/Year

Product Description

Product Description
TPHD2016 Top manufacturer high speed CNC drilling machine for plates and tube sheets
Applicable Industry:
The machine is the automatic special drilling machine for steel plates/connection plates, mainly in the field of angle steel tower industry, structure storage facilities, and steel structure construction industries etc.
Specification:
Model TPHD2016
Max work piece size (L×W) 2000x1600mm plate or Φ1600mm flange
ThickNess of work piece 6--120mm
Drill unit type sliding table, servo control
Drill head quantity one
Max drill diameter Φ40mm
Taper hole of spindle BT40
Spindle speed 30~3000r/min
Spindle vertical stoke (Z axis) 300mm
Servo motor power of X axis 2.0 kW
Servo motor power of Y axis 1. 5 kW
Servo motor power of Z axis 2.0 kW
Motor power of scrap cleaner 0.75 kW
Clamping type 12 Hydraulic clams and T-slot
Electric control type SIEMENS 808D
CNC axis quantity 3
Position precision ±0.08mm
With function of CAD/CAM automatic generation
With function of break point memory (Restart production easily after power off)
Overall size About 4900x3900x3200
Weight About 14000

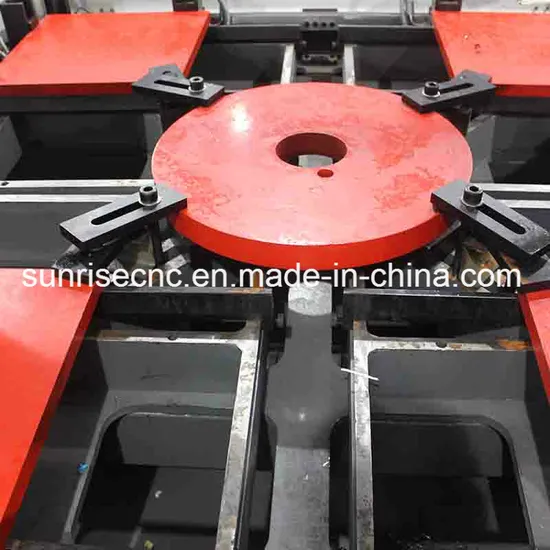

Products Show
Our Service Installation:The seller shall send one engineer to the buyer's country for installation, commissioning and training. The buyer is responsible to provide all necessary equipments for handling and lifting the machine parts before seller's engineers go to the buyer's plant. In addition, the buyer should provide workers to support in installation activities, under supervision from the seller's engineers.
Commission:The Supplier should give drawings and other details of material/preparation required for installation of machinery which the buyer has to prepare and keep ready before the machine arrives at the buyer's factory. Installation and commissioning can be finished within 10-15 days for above machine generally.
Training:Training will include training on computer programming, machine operation and troubleshooting. The training time is at most 5 days for this machine.
The buyer should arrange no less than two people for accepting training. After training, the buyer should sign the "Receiving & Inspection Report" supplied by the seller to demonstrate the successful finish of commissioning and acceptance of the buyer.
Our Company Factory: With the development of SUNRISE, now our company has occupied important position in this industry. Due to the orders and sales performance is continuously improving, in order to better development, to meet customer's demand, and to provide customers high-quality equipment with the shortest time, our company have bought the new site, the area about 50,000 square meters, this will make sufficient preparation for development of our company and every customer.
Workshop:Quality make brand, honesty win market, harmony converge talents, and innovation promote development. Our ability to consistently provide innovative, high quality products that outlast and outperform the competition, is why we are the one of the most successful companies offering the most advanced and productive solutions in the CNC machine industry.
Warehouse:Manufacturing customer oriented products has always been our supreme concern. We believe that quality is the soul of an enterprise forever. Therefore, we never compromised with the quality of our products. We adopt advanced, scientific modern management ideas and system to realize supervisory control among all aspects of produce, inspection, sale and service etc., which help control quality, increase work efficiency and guarantee products' stability, reliability and precision. Therefore, the enterprise can achieve rapid and sustainable development.
Team:We are a team of experienced and dynamic professionals who are experts in handling precision work through scientific processes. The professional excellent talents unite a powerful and creative team of design, research and development, which build our solid technical strength and competitiveness. And our company is developing fast and supply specialized service to all customers.
Packing & Delivery
Packing Details : Packing, this model need 1*40GP;
Delivery Details : 60-90 days after get the first payment.
1. Special logistics packaging
2. Suitable carton size
3. Fasten
4. Professional placement
5. Professional shock
6. Complete package
Our Certifications
SUNRISE is focus on quality and company's image. We win market with good quality and service. The company has already passed International Quality Management System ISO9001:2008 certification for many years and also got the CE certificate, smoothly got the title of High and New Tech Enterprises. And has more than ten own intellectual property rights and patent technology. We have own import and export right. Our products exported to Russia, South Asia, South east Asia, Middle East, South America, Africa, Australia, Eastern Europe etc.
Customer Photo SUNRISE CNC MACHINE ALL OVER THE WORLD, HAVE EXPORTED MORE THAN 30 COUNTRIES.Our products exported to Russia, Ukraine, Albania, Romania, Iran, Israel, Jordan, Turkey, Uzbekistan, Egypt, UAE, Saudi Arabia, Lebanon, Mexico, Argentina, Brazil, Morocco, South Africa, Kenya, India, Australia, Indonesia, Vietnam, Sri Lanka, Singapore, Malaysia, Thailand, Myanmar etc.
FAQ Q: Are you trading company or manufacturer ?A: We are professional manufactutrer, have in this line about 10 years.
Q: How long is your delivery time?A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock.
Q: What is your terms of payment ?A: Payment 30% T/T in advance ,70%balance before shippment.
If you have another question, pls feel free to contact us as below:
More information, please contact:
