Basic Info.
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Semi-Closed Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
CE, ISO 9001, EAC
Workpiece Maximum Turning Diameter
630mm
Spindle Speed Range
50-1000rpm
Turret Form
8 Station Hydraulic or Power Turret
X-Axis Rapid Feed Speed
18m/Min
Z Axis Rapid Feed Speed
15m/Min
Cutting Feed Rate
0.1-5000mm/Min
X-Axis Motor Power, Torque
2.4 Kw /15nm
Z-Axis Motor Power, Torque
2.4 Kw /15nm
Transport Package
Metal Pallet + Plywood Box
Specification
2200*2000*2600mm
Production Capacity
100 Sets/Month
Packaging & Delivery
Package Size
240.00cm * 240.00cm * 280.00cm
Package Gross Weight
5500.000kg
Product Description
Product Description

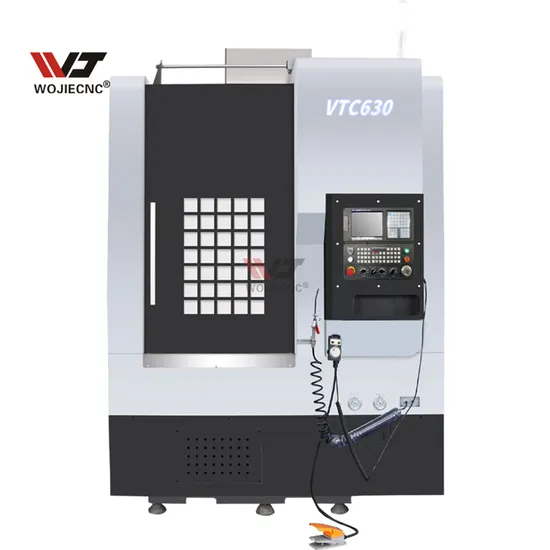

VTC series lathe is an automated CNC machining lathe used for machining inner and outer cylindrical surfaces, conical surfaces, end faces, grooving and chamfering of parts. It is especially suitable for machining automotive brake hubs, wheel drums, clutch pressure plates, flywheel housings and other parts.
Product Parameters
Specifications | VTC630 |
Max.Swing diameter | 630mm |
Max.Turning diameter | 600 mm |
Hydraulic chuck diameter | 400mm |
Spindle speed | 50-1000rpm |
Cutting feed rate | 0.1-1000mm/min |
Travel of toolpost | X:450mm Z:680mm |
X axis rapid feed speed | 15000mm/min |
Z axis rapid feed speed | 12000mm/min |
Tool holder form | 8 station hydraulic turret |
Main motor power | 15Kw 143NM |
Feed motor power and torque | 2.4 kW /15NM |
Cooling pump motor power and flow | 250W / 40L/min |
Tool positioning accuracy | X:0.015mm Z:0.02mm |
Tool reset accuracy | X:0.012mm Z:0.012mm |
Weight | 4800kg |
Overall dimension of machine tool(L*W*H) | 2200*2100*2600mm |
Detailed Photos
| |
Control system Standard configuration: GSK Optional configuration: Siemens/ Fanuc/ Syntec/ Mitsubisin/ KND | Turret Standard configuration: 4/8 station hydraulic turret Optional configuration: 8 station power turret |
| |
Hydraulic chuckStandard configuration: 400mm hydraulic chuck | Lubrication system The centralized lubrication system can be used in a timely, quantitative, accurate, efficient, convenient and reliable manner, and is conductive to increasing the service life of the machine tool. |
| |
Pneumatic system Electronic display, stable air pressure | Electrical partStandard configuration: DELIX |
Company Profile
ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
More than 60,000m² of the factory with more than 150 workers. Strictly QC control with more than 24 steps testing processes 30+ years CNC machine manufacture experience factory 24 hours online service at any time Trade with customers in more than 150 countries around the word. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect. Support ODM OEM. Warranty time is 24 months Certifications
FAQ
1. What are the payment terms? A: T/T, 30% down payment when ordering, 70% balance before shipment; irrevocable L/C at sight. After receiving the advance payment, we will start production. After the machine is ready, we will take pictures and videos for you to inspect the machine. After paying the balance, we will send the machine to the designated location according to your instructions. 2. What does your company mainly produce? A: Our company is a professional machine tool manufacturer with many years of experience. The company mainly produces CNC milling machines, CNC lathes for machining centers, ordinary milling machines, ordinary lathes, hydraulic presses, etc. 3. When is the delivery time? A: If the machine you ordered is a standard machine, we can prepare the machine within 15 days. If it is some special machines, the delivery time is about 30 days. Some machine models will be in stock, please consult the salesperson for details. 4. What are your trade terms? A: FOB, CFR, CIF, DDP, DAP, FCA, etc. 5. What is your minimum order quantity and warranty period? A: The minimum order quantity is 1 set, and the warranty period is 2 years. But we will provide lifetime service for the machine. 6. What is the packaging of the machine? A: The machine is placed on a metal pallet, covered with a moisture-proof coat inside, and wrapped with plywood all around.
