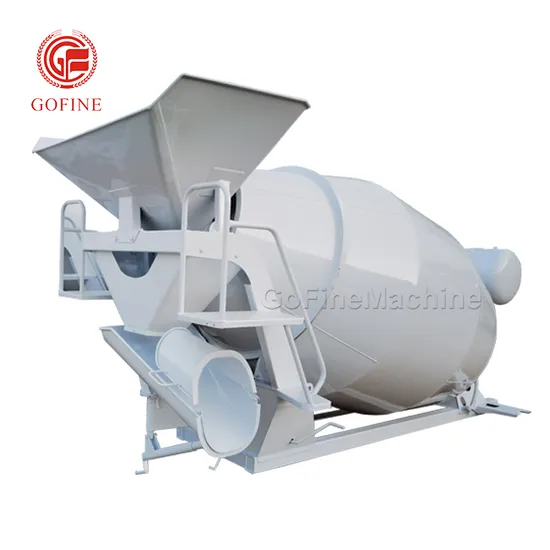

Spiral Structure Batch Blending Bb Fertilizer Transport Mixer Machine

Spiral Structure Batch Blending Bb Fertilizer Transport Mixer Machine

US$6,800.00-8,900.00 1 Set (MOQ)

Basic Info.

Model NO.
5 m3
Type
Fertilizer Mixer
Voltage
380V
Certification
CE, ISO
Rotating Speed
6-12r/Min
Power
11kw
Layout Type
Horizontal
Mixing Drum Shape
Drum
Operating Type
Batch Stirring
Mixer Type
Powder or Granules
Transport Package
Nude Package or Wooden Case
Specification
800*3300
Trademark
Gofine
Origin
China
HS Code
8479820090
Production Capacity
25 Sets/Month

Packaging & Delivery

Package Size
1000.00cm * 1000.00cm * 1000.00cm
Package Gross Weight
1000.000kg

Product Description


Product Description
BB fertilizer mixer (also called blended fertilizer mixer) is a highly efficient equipment specially used for producing BB fertilizer (blended fertilizer). It has the characteristics of high precision, high uniformity and high efficiency. It can evenly mix various raw materials in proportion and is widely used in the production of compound fertilizer, blended fertilizer and other fertilizers. It can also be equipped with a three-wheeled or five-wheeled vehicle to achieve mixing during transportation. The equipment has a simple structure and is easy to operate. It is an ideal choice for fertilizer manufacturers to improve production efficiency and product quality.
Features of BB Fertilizer
1. Efficient mixing
Using specially designed mixing blades and unique structural layout, the mixing uniformity is high, avoiding material stratification and segregation. During the mixing process, the integrity of the material particles is not destroyed, and the shape of the fertilizer particles is effectively maintained.
2. Material-free storage design
The feeding and discharging system is reasonably designed to avoid material residue in the equipment and improve production efficiency.
3. Simple and stable equipment structure
The whole machine has a simple and compact structure, small footprint, and is easy to install and maintain. It provides two power modes: fuel and electric. Made of high-quality steel and stainless steel, it is durable and adaptable to harsh production environments.
4. Convenient operation
Equipped with an intelligent control system, it is easy to operate and supports one-button start and automated production. The equipment runs smoothly, with low noise and low labor intensity.
Working process of BB fertilizer mixer
The working principle of the BB fertilizer mixer mainly relies on its unique design and structure. First, the material is fed into the mixer through the lifting and feeding system to ensure continuous supply. Then, the equipment adopts forward and reverse operation, using the internal spiral mechanism and three-dimensional structure to mix the material. The design of forward feeding and reverse discharging allows the material to be evenly mixed during the mixing process to avoid accumulation and blockage. During the mixing process, the equipment runs smoothly, with low noise, and can gently handle the material without basically destroying its original state. Finally, after the mixing is completed, the material is smoothly discharged through the discharge port, ready for subsequent packaging or processing. This design makes the BB fertilizer mixer have efficient and stable performance in agricultural production, and can meet the needs of modern agriculture for fertilizer mixing.
Application of BB fertilizer mixer
BB fertilizer mixer can not only be used for mixing bulk blended fertilizer, but also can be widely used in a variety of dry and wet materials mixing. Here are some common types of materials:
Organic fertilizer: suitable for mixing all kinds of organic fertilizer, such as chicken manure, pig manure, cow manure, etc.
Compound fertilizer: can effectively mix different ingredients of compound fertilizer to ensure balanced nutrition.
Chemical raw materials: can be used in the chemical industry powder or granular material mixing.
Mine materials: In the mining industry, BB fertilizer mixers can also be used for mixing ores and other minerals.
Building materials: Suitable for mixing powdery materials in building materials industry, such as cement, gypsum, etc.
Feed: Suitable for large-scale mixing of feed powder or particles.
The design of the BB fertilizer mixer enables it to handle many types of powder or granular materials to meet the production needs of different fields.
Product Parameters
Mixing Bucket Part
Geometric volume Stirring volume Barrel diameter Tilt angle Shape size Installation size Rotation speed
3.6m³ 2m³ 1.6m 13° 3510*1600*1780 760*2750 0-10
5.2m³ 3m³ 1.8m 15° 4045*1800*2160 800*3300 0-10
6.1m³ 4m³ 1.8m 15° 4345*1800*2215 800*3600 0-10
8.5m³ 5m³ 2.05m 14° 4935*2050*2365 800*3900 0-10
10.2m³ 7m³ 2.15m 16° 5020*2150*2441 800*4200 0-10
15m³ 10m³ 2.2m 14° 6080*2200*2652 860*5300 0-10
Hydraulic system The hydraulic transmission part adopts Keyi or Rongjiao reducer, joint venture plunger oil system, variable motor, domestic gear pump, cycloid needle motor, flow control reversing valve, large-volume radiator, so that the oil temperature is more constant. The system is more stable, and the output is faster and more uniform.
Water supply system Water supply in the form of compressed water tank.
The capacity is 350L, 300L, 400L.

Product Details
Recommended Products
More Mixing Equipment
Overseas Scene
Packaging & Shipping
About Us
FAQ
1. Why choose us?
Gofine Machine is a professional equipment manufacturer, that integrates scientific research, production, sales, import, and export. One-stop procurement service, support customized solutions.
2. How can we guarantee the quality?
We have a strict quality control system to ensure the factory quality of each product.
3. What can you buy from us?
Gofine Machine produces fermentation equipment, compost-turning machines, crushing mixers, granulators, screeners, packaging machines, and other commercial equipment, etc.
4. What services can we provide?
We have professional overseas installers responsible for installation, commissioning and free training. Professional personnel are waiting for you online 24 hours a day.
5. How to choose equipment?
We have a professional technical team to customize reasonable solutions for you and support customized services.
