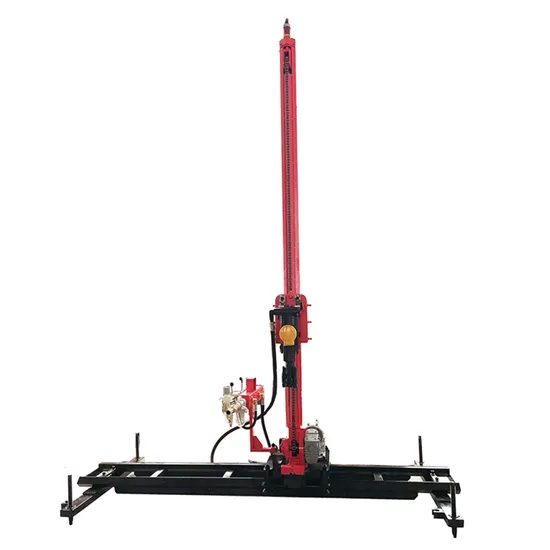

Single Hammer Mobile Rock Drill for Rock Drilling and Mining

Product Description

Multinational Rock Driller
The type of Multifunctional driller is mainly used in quarrying, available for horizontal, vertical, and slantwise drilling with accuracy to divide large blocks into smaller pieces, which is necessary to assist diamond wire saw machine working in stone quarries.

Driller Code	Rock Driller for Vertical Drilling	Single Hammer Rock Driller for Vertical and Horizontal Drilling	Two-Hammer Rock Driller for Vertical and Horizontal Drilling
	[Item No.: PD-V-29]	[Item No.: PD-VH-29B]	[Item No.: PD-VH-29-2B]
Hammer/Driller	YT29A	YT29A	2-YT29A
rated track length	2*3m	2*3m	2*3m
max.drilling depth	6m	6m	6m
drilling diameter	34mm-42mm	34mm-42mm	34mm-42mm
minimum air pressure	0.6MPa	0.6MPa	0.6MPa
drilling speed	60m/h(one head)	60m/h	60m/h
total compressed air consumption	7m³/min	7m³/min	10m³/min
track travel	2m	2m	2m
Feed System	Pneumatic motor, chain	Pneumatic motor, chain	Pneumatic motor, chain
cross travel device	Handwheel, gear, rack	Hand wheel, gear, rack	Handwheel, gear, rack
drilling direction	Only vertical	Any direction	Any direction
total weight	440kg	470kg	1000kg
Fittings/ accessories	one YT29A Hammer	one YT29A Hammer	two YT29A Hammer
	one dia.34 Chisel Bits	one dia.34 Chisel Bits	one dia.34 Chisel Bits
	one dia.42 Chisel Bits	one dia.42 Chisel Bits	one dia.42 Chisel Bits
	two 1 meter taper rod	two 1 meter taper rod	two 1 meter taper rod
	two 1.6 meters taper rod	two 1.6 meters taper rod	two 1.6 meters taper rod
	two 2 meters taper rod	two 2 meters taper rod	two 2 meters taper rod

Ps.: Others
1. Besides, we also sell other drilling tools:
Construction & Mining & Rock Drill Tools:
1) DTH Hammer and Bit (2''-24''), Overburden Drilling System; RC System; Hydraulic Breaker Hammer (4 ~ 20ton)
2) Top Hammer (drill hole dia.: 33 ~ 152mm):
a. Thread Tools (Button Bits, Rod, Coupling, Shank Adaptor): (R25/28/32/38, T38/45/51, ST58,GT60)
b. High Rang Soundless Cracking Agent (dia. 40 ~ 50mm), High Range Grout, (Expansive Mortar Grade A)
Quarrying Drill Tools (drill hole dia.: 17 ~ 45mm):
1) Taper Drill Tools (Bit: button/chisel; Rod: Tapered/Integral), Carbide Tips, Segment, Grinding Wheel, Grinder/Grinding machine, Grinding Cup, Grinding Pin;
3) Pneumatic Rock Drill: Handheld (Y10, Y18, Y20, Y24, TY24C), Airleg (YT28, YT29A) and Gasoline (YN27C, YN27J);
4) Expansive Mortar (dia. 30 ~ 35mm), Expansive Grout, Soundless Cracking Agent, Rock Breaking Chemical;
Hydraulic Rock Splitter PD40-250, Aluminum or Steel Cylinder;
5) Air Pushing Bag, Water Bag; Pneumatica Splitter G10, Hand Splitter, etc
2. Advantages:
Compared with the oversea brands, our advantages are bellowing:
a. Our products can match over 85% against the original products
b. Price are competitive against the famous brands and best quality against the small factory

3. About Us:
1. Our factory has been specialized in manufacturing drilling tools and spare parts for over 15 years.
2. We have advanced technology and equipment.
3. Our technician has more than 15 year's professional working experience.
4. Rock drilling tools are exported throughout the world. Main market: Norway, Turkey, USA, Canada, Australia, Brazil, Uruguay, Philippines, Thailand, India, etc.
