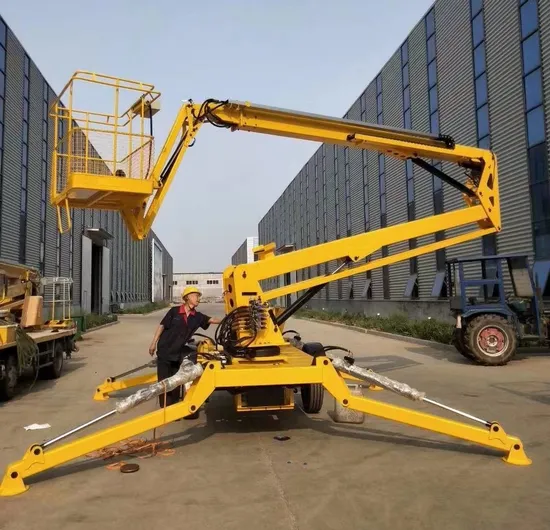

Tgz-10 200kg 10m 12m Battery Power Electric Hydraulic Towable Trailer Mounted Boom Lift Cherry Picker One Man Lift

Tgz-10 200kg 10m 12m Battery Power Electric Hydraulic Towable Trailer Mounted Boom Lift Cherry Picker One Man Lift

US$2,000.00-7,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
TGZ-10
Application
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism
Articulated Lift
Carrying Capacity
Special Weight Level
Moves
Pull Type
Driven Type
Hydraulic
Running Mode
Moving
Feature
Explosion-Proof, Insulating
Certification
CE
Rotation Angle
360
Power
AC Power
Mechanical Balance
Automatic Leveling
Transport Package
Nude Packing
Specification
5450*1700*1900
Trademark
TITECO
Origin
China
HS Code
8428909090
Production Capacity
3000 PCS/Year

Packaging & Delivery

Package Size
620.00cm * 180.00cm * 210.00cm
Package Gross Weight
2400.000kg

Product Description

Model Platform Size(mm) Dimension (mm) Platform Height (m) Capacity (kg) Working Radius (m) Weight (T)
TGZ-8 1200*800 5200*1600*1900 8 200 4.5 1500
TGZ-10 1200*800 5450*1700*1900 10 200 5.7 1700
TGZ-12 1200*800 6530*1720*1900 12 200 6.4 1900
TGZ-14 1200*800 6200*1730*2100 14 200 8.5 2350
TGZ-16 1200*800 7000*1730*2200 16 200 9.5 2600

INTRODUCTION
TITECO Towable Boom Lifts are easy to transport and simple to operate.The towable boom lift can also be customized with a rotating jib for more flexible operation.Towable Articulated boom lift is one of the most ideal aerial lift platform for both indoors and outdoors maintenance work. It can rotate 360 degree in the air and platform height is from 8m to 20m. Articulated boom lift is driven by Diesel,Gas, or Battery or confused Power.It is widely used in neighborhood unit, road light maintenance, factories high place maintenance, construction site and so on.
FEATURES Easy-to-travel mobility. Outstanding operating envelope to reach jobs high and low. Easily towed behind a pickup or SUV A compact, lightweight package that is easy to maneuver in congested work areas. Unparalleled platform stabilization Smart control system make the lower energy consumption. Compact structure dimension for narrow space work. Intuitive controls, allowing operators to efficiently reach where they need to be. Best-in-class grade ability and reach Fastest lift and drive speeds for unmatched productivity
