US$6,800.00
|
1 Piece
(MOQ)
|
Basic Info.
Application Material
Marble
Application
Glass, Advertising, Art & Craft, Stone Industry
Reposition Precision
0.02mm
Operation System
DSP/Nc-Studio/Mach3
Water Cooling Spindle Power
4.5kw/5.5kw
Table Structure
Steel Lathe Bed
Command
G Code*.U00*.Mmg*.Plt
Max Processing Speed
30000mm/Min
Voltage
380V /220V/50Hz/60Hz
Machine Colour
as Your Choice
Transport Package
Plywood Packing
Specification
iso /SGS/FDA/CE
Production Capacity
50sets/Months
Product Description

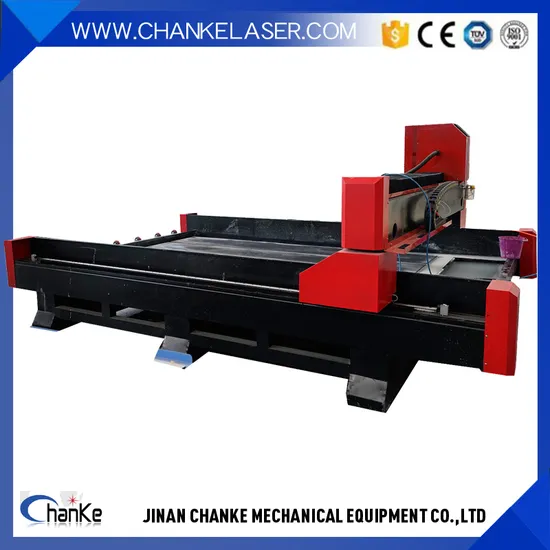

Introducing our 1300x2500mm CNC Marble Engraving Machine, specifically designed for precision and excellence in stone and marble engraving.
1. Featuring a T-slot mesa, our lathe bed offers unparalleled stability and durability for consistent, high-quality output.
2. Equipped with an advanced water cooling system, our machine ensures extended cutter life, maintaining peak performance longer.
3. Includes a sophisticated breakpoints and power failure recovery function, allowing your work to continue seamlessly even after interruptions.
4. Our unique dust oiling structure guarantees sustained mechanical efficiency and longevity, ensuring your machine runs smoothly over time.
5. The high-power, water-cooled, brushless motor enhances cutting force and wear resistance, making it a robust and reliable choice.
6. Main components are sourced from reputable import and joint venture brands, guaranteeing stable and reliable performance under all conditions.
7. Boasting high compatibility, it supports various CNC software: TYPE3, ArtCAM, Castmate, Pore, Wentai, and variable CAD/CAM, enhancing versatility.
8. Equipped with a sink and automatic water supply system, it ensures optimal cooling for cutting tools and the machining of stone and metal.
9. Built with an industrial-grade, heavy all-steel welded structure and tempering aging treatment, it assures exceptional durability and non-deformation.
10. Incorporating triaxial exclusive dust protection and waterproof technology, it safeguards guide rails, gears, and racks from dust and debris, prolonging part life.
Applicable Industry
Ideal for the stone industry, stone processing, art, advertising, decoration, and ceramics relief industries, among others.
Technical Parameters
Working size | 1300×2500×200mm cnc stone machine |
Spindle power | Water cooling 3000W |
Spindle rotation | 6000--24000rpm |
Motor driver | Stepper motor driver(Chinese servo motor and Japan servo motor is optional) |
Tool diameter | 3.175, 4, 6, 12.7mm |
Machine structure | Industry square tube structure |
Transmission | High accuracy gear rack |
XYZ rails | PMI square rails |
Dust-proof system | XYZ high quality dust cover |
Mechanical accuracy | 0.03/300mm |
Engraving speed | 12000mm/min |
Data transmission | PC connect directly |
Support format | G code or HPGL |
Working voltage | AC220V/50Hz or 380V/50Hz |
Net weight | 1500kg |
Every stone CNC router machine is meticulously packed with an inner plastic wrap and steel structure, followed by a robust plywood outer case. The inner packaging secures all small parts, while the firm plywood offers excellent protection during shipping.
The advantages of our plywood case packaging:
Firstly, the plywood case excels in compressive strength and bearing quality, making it the preferred choice for packing heavy goods.
Secondly, with its large board area, solid structure, and simple operational process, it ensures superior leakproof and waterproof characteristics.
Thirdly, our fumigation-free plywood case simplifies import procedures, making it a hassle-free choice for international shipping.
