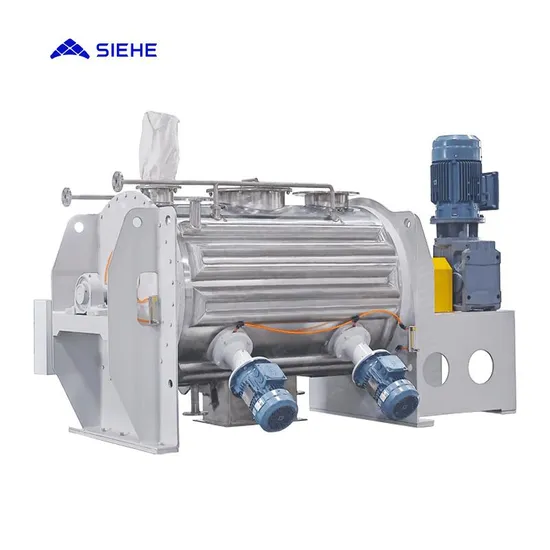

Horizontal Drying Mixer for Animal Feed Poultry Carbon Black Polymer Powder Mixer

Product Description

Products Description
Horizontal Drying Mixer is a multi-function mixer combines mixing, reaction and drying, widely used in industries of food, chemical industries, building materials, lithium battery, etc., during the process of which the liquid needs to be added, and after mixing the liquid needs to be removed or the liquid content is too high so it needs to decrease. The machine is with heating jacket, which can heat the materials by hot water, hot oil, steam and other medium. The entire design is closed, vacuum system are for option to pump out the air to drain the liquid. In addition , there is a dust collecting device, condensing refluxing device, solid-gas separating device, etc., to reduce the raw material consumption. The whole system can be designed with PLC intelligent controlling(such as temperature, vacuum degree, rotation speed, etc.), and with the signal connector to implement remote controlling.

Materials Specific Gravity	≤3g/cm³
Drying temperature	≤400ºC
Production Capacity	50-30,000L
Application Industry	Suitable for the mixing and drying of starch, lithium battery material, ceramic material, chemical fertilizer, sludge treatment etc industry.
Applicable Materials	Powder or paste whose specific gravity is under 3g/cm³, and with certain fluidity, such as modified starch, positive pole material of lithium cobalt oxides, white carbon black etc material.

MIXING AGITATOR STRUCTURE
Plough type agitator used; With fly cutters to break the cakes during mixing; Plough agitator and fly cutterwith high speed;with higher mixing efficiency. SMALL BATCH HORIZONTAL DRYING MIXER
All stainless steel materials;With powder feeding small hopper;With insulation layer. PRODUCTION USE HORIZONTAL DRYING MIXER
With customized powder feeding ports;With dust connection port;
With vacuum system LARGE CAPACITY HORIZONTAL DRYING MIXER
Can be customized with two side view ports;With heating coil for drying.
Nice Auxiliary Components:
* Auxiliary components are for option, such as coil pipe steam heating jacket, honeycomb anti-pressure jacket, recycle-medium jacket, real-time sampling valve, high speed fly-cutter, temperature detector, weighting system, dust collecting system, vacuum drying system and etc.
* Spray and atomizing device are for option to spray little liquid which will mix the liquid into powders better. Spraying system consists of pressure source, liquid storage tank, spray device.
* Equipment material can be designed in carbon steel, SS304, SS316L, SS321, other harder alloy agitators can also be used on agitator. Lining of cylinder can be polyurethane or spraying wear-resistant material.Detailed Photos Industrial Applications
Certifications
Company Profile
SIEHE GROUP established in year 2009, start with liquid machine manufacturing. After more than ten years of efforts, SIEHE Group has developed into large-scale machinery industry group company. lts headquarter is located in Honggiao, Shanghai, China. lts production bases are in Jinshan, Shanghai,Wuxi and Yangzhou in Jiangsu, with a total plant area around 32000m2. The production bases are equipped with more than 160 sets of advanced production processing and testing equipment including: turning and miling center, large gantry five- axis machining center, horizontal five-axis boring and miling machining center, Vertical five axis machining center, vertical CNC lathe machining center, trilinear coordinates precision measuring instrument, image measuring instrument precision altimeter etc.. With strong production and quality control capacity, SIEHE group carries out product design, processing,assembly and testing in full accordance with the lSO9001 quality management system, and has passed professional institution certification.
Production Equipment
Five-axis Gantry Machining Center Turning and Milling Center CNC Boring and Milling Machining Center
CNC Vertical Lathe Vertical Machining Center CNC Five-axis Gantry Machining CenterCustomer Photos
