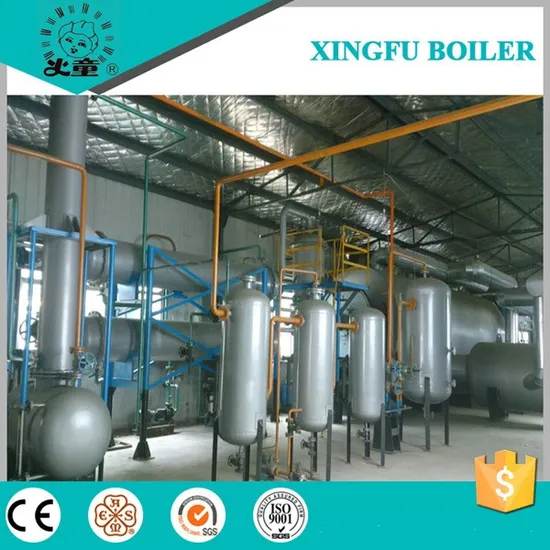

16t Semi Continuous Waste Tyre Pyrolysis Plant for Oil

Product Description

8T,16T Semi Continuous Waste Tire Pyrolysis Equipment
Performance Feature Integral design, no need to precast foundation, quick and easy installation. Airtight high temperature material feed, saving heating time and reduce the temperature loss. Adopt multilevel cooling design to get more fuel oil. Hot air heating, unique heat cycle design, heated more evenly, reducing the operating cost. Airtight high temperature slag, no dust, clean and environmentally friendly. Technological Process 1.Broken tyre transported to feeder firstly by conveyor, then to reactor. 2. Oil and gas from pyrolysis go into gas-liquid separating tower and separate, and enter into condenser to liquify , to get fuel oil, then enter into oil storage tank. 3. Coarse carbon black and steel wire from pyrolysis are output by automatic slag remover, transported to carbon black processing system by cooling hoist. Separate steel wire and carbon black through the magnetic separator,to get industrial carbon black and steel wire. 4. Shatter carbon black, to get industrial carbon black after deeply processing. Steel wire compressed into a piece of scrap processing. 5. Flammable gas enter into waste gas process tank to desulfur. Then extracted by vacuum pump, enter into water sealed tank and send to hot air furnace to burn. Main Performance Parameter

Item	Type	XFLJ--8	XFLJ--16
Capacity /24h		8T	16T
Operating temperature		≤650°
Fuel		Fuel oil, natural gas, liquefied petroleum gas
Heating way		Hot air circulation heating
Tire requirement		Block tyre ≤5mm
Working pressure		Normal pressure
Methods of flame retardant		Steam blow
Fuel consumption		200 kg	400 kg
Boundary dimension		7300 × 2400 × 3100(mm)	7300 × 2400 × 3100(mm) × 2
Total power		85 kw	160 kw
Power consumption		40 kw/h	75 kw/h
Floor space		25000 mm × 5500 mm	25000 mm × 11500 mm
Highest point of installation		5000 mm	5000 mm

Remark: This parameter is just for reference. Size change caused by design improvement will not
inform customers specially. Please refer to documents enclosed with products.

Product Recovery Rate
1. Oil: 40-45%
2. Carbon black: 32-36%
3. Steel wire: 14-16%
4. Syn gas: 5-8%
Certifications
WELCOME to Qingdao,Check the running 15t/day fully continuous,8t/day semi continuous
and the tyre oil distillation plant.
If you need other information,pls contact me,we will talk more details. Best Regards,Raymond
