3.85m Width Self-Leveling Concrete Laser Screed Machine Include The Laser System
| US$65,439.00-85,642.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
RWJP31/32
Type
Floor Construction
Shotcrete Type
Wet
Machining Process
Paving
Structure
Cylinder Type
Productivity
200m2/H
Certification
CE
Condition
New
Color
Yellow
Transport Package
Container
Specification
5200× 4350× 3700mm
Trademark
ROADWAY
Origin
China
HS Code
84791021
Production Capacity
10sets/Month
Product Description
Boom Laser screed RWJP31The Laser Screed is used in large area concrete construction, such as the modern industrial workshop, the large market, storage, airport, the plaza, and so on. The Laser Screed can satisfy the construction requirements of large area and high planeness and levelness.
Product Parameters
| Model | RWJP31 |
| Type | Boom type |
| Engine | |
| Model | Yanmar 4TNV98T-ZNLYS |
| Type | Diesel Engine, Liquid cooled, 4 stroke, 4 cylinder |
| Power | 57.3kW/2400rpm |
| Engine oil volume | 10.2L |
| Fuel consumption | 252g/kwh |
| Running device | |
| Driving | 4 Hydraulic drive motor |
| Wheel | Antiskid tyre |
| Steering | Front Wheel/ 4-Wheel/ Crab-shaped turn |
| Outrigger | 4 legs, Self-leveling |
| Working Speed | 0-8km/min |
| Driving Speed | 22m²/min |
| Screed head | |
| Type | Self-leveling |
| Arm Length | 6000mm |
| Width | 3850mm |
| Paving type | With auger |
| Auger force | Hydraulic motor |
| Exciting force | 2000N |
| Vibration frequency | 60Hz |
| Swing Angle | ±45° |
| Screed head control | Ratio control |
| Height of screed head | 560mm |
| Control accuracy | ±1.5mm |
| Laser control system | |
| Control type | Microcomputer laser scan |
| Control effect | Flat, slope or double slope |
| Operation mode | |
| Chair position | Ride-on forward type |
| Forward and reverse | Handle control, stepless speed walking |
| Telescopic arm | Handle control, stepless speed |
| Steering | Hydraulic intelligent control |
| Cleaning system | |
| Power | Hydraulic motor |
| Theoretical flow | 20L/min |
| The Max pressure of inlet | 0.5Mpa |
| Rated pressure | 7MPa |
| Fuel tank volume | 150L |
| Hydraulic oil volume | 150L |
| Size and Weight | |
| Outline dimension | 5200×4350×3700mm |
| Weight | 8200kg |

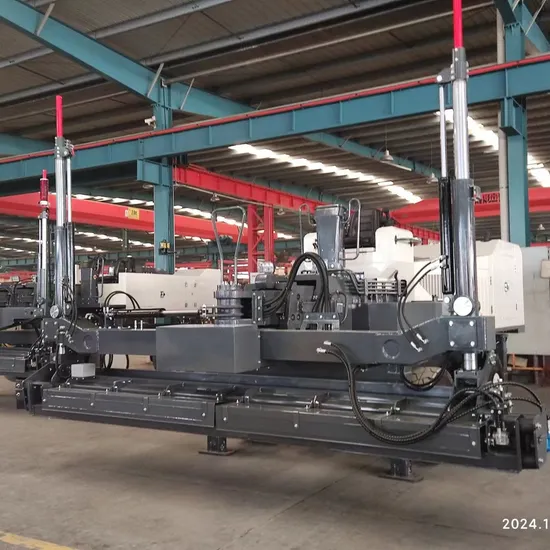

Detailed Photos
Packaging & Shipping
