US$13,000.00-16,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Certification
GS, CE, RoHS, ISO 9001
The Largest Hole Diameter
80mm
Transport Package
Wood Case
Specification
GS CE ISO9001 Rohs
Production Capacity
150 PCS/Month
Packaging & Delivery
Package Size
2750.00cm * 1010.00cm * 1790.00cm
Package Gross Weight
2750.000kg

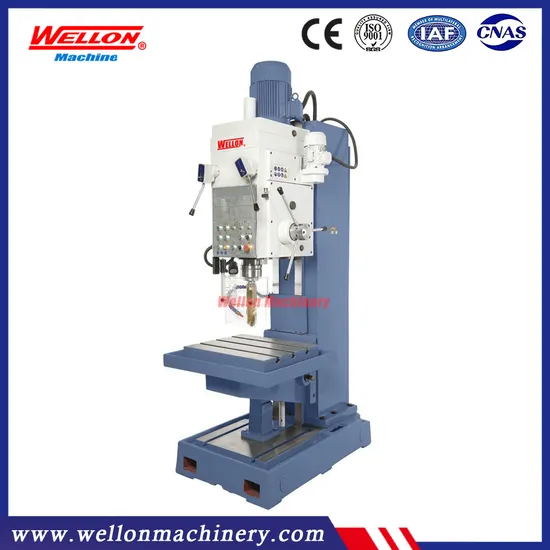

Product Description
Product Description
Detailed Photos
Performence Features: Quick and easy feed and speed control thanks to comfortable control lever.Powerful motor of high torque as well as high pressure force and feed.Threading at automatic rotations change and depth adaptation.Automatic spindle feed in standard version, threading option and lighting.Quick feed and return motor.Trouble-free operation and long operation warranted by use of high class parts and components.Column and base strong and solid structure.
Product Parameters
Technical parameter:
MODEL | Z5180B |
The largest hole diameter (mm) | 80 |
The largest feed resistance (N) | 30000 |
The maximum allowable torque spindle (Nm ) | 800 |
Main electrical Power (KW) | 7.5 |
Throat distance (mm) | 375 |
Spindle taper | MT6 |
Spindle stroke (mm) | 250 |
Headstock travel (manual) (mm) | 250 |
Spindle speed range (steps) (r / min) | 40-570 (9) |
feed rate (steps) (mm / rev) | 0.1 - 0.78 (6) |
the largest table travel (mm) | 300 |
Table working area (mm) | 650X550 |
Max distance from spindle to worktable (mm) | 800 (1250 optional) |
Machine NW / GW (kg) | 2550/2750 |
Packing Size (length X width X high) (cm) | 275X101X179 |
Standard accessories:
Coolant system
Work lamp
Drill chuck
Reduction sleeve
Wrenches
Optional accessories:
Machine vise
Spindle guard
Depth indicator
Company information
Packaging & Shipping
FAQ
1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center,
Lathe Machines,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on.
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.
