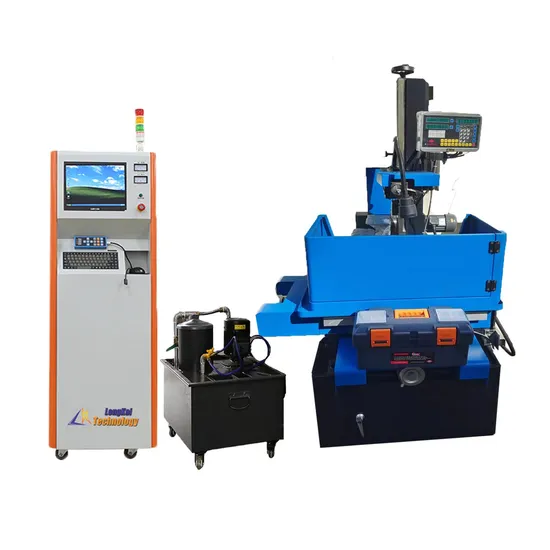

Four-Axis Linkage Control High Efficiency Wire Cut EDM Machine Dk7725

Product Description

High spee Wire EDM cutting machine CNC closed wire cut DK7725
High efficiency fast wire cutting is a set of machine tool electrical appliances, high frequency power supply, servo control and graphics programming as one, to achieve high efficiency, high precision, high finish, simple processing control, greatly improve the processing level of fast wire cutting machine. Flexible commutation with frequency converter is adopted in machine tool commutation, which can arbitrarily adjust the speed of wire conveyor drum, thereby improving the smoothness of workpiece. High efficiency (cutting efficiency can reach 7000 to 8000 square millimeters per hour) is twice the cutting efficiency of ordinary machine tools. Energy saving (machine energy consumption is 0.85 degrees per hour) is 50% more energy saving than that of ordinary machine tools. Environmental protection (machine tool environmental protection water cover to prevent working fluid splashing) can be replaced once in 30 working days by using high-pressure filter water tank working fluid, which greatly improves working time and reduces the number of sewage discharge. The electrical parts of the machine tool are all installed in the control cabinet for waterproof treatment, and all the oil supply is integrated with manual oil pump.
1.Select paired clearance-free bearings to improve accuracy.
2. Selection of high quality ball screw
3. Using steel-inlaid guide rail
4. Good assembly process requirements
5.By using frequency converter, the speed of the wire drum can be adjusted arbitrarily, thus improving the smoothness of the workpiece.
6.Conventional processing efficiency can reach 150 mm2/min.

High spee Wire EDM cutting machine CNC closed wire cut DK7725

S/N	project	parameter
1	model	DK7725
2	Electrical cabinet form	Vertical cabinet (full step type)
3	Guide	Steel rail
4	Lead screw form	Ball screw
5	Xyuv motion motor form	Reactive stepping motor
6	Working mode of wire conveying motor	Frequency converter speed regulation1~12m/s
7	Machine tool protection	Environmental protection cover
8	Resolution of motion axis	0.001mm
9	Table size	620X400
10	X, y axial stroke	250X350mm
11	U, V axis travel	±35×±35mm,(±60×±60m)
12	Machining taper / machining thickness	±6°(±15°)/80mm
13	Maximum straight cutting thickness	300mm(Z-axis manual lifting)
14	control mode	4 axis linkage
15	Maximum load capacity	160 kg
16	Maximum processing current	8A
17	Maximum machining efficiencyCr12,H=60mm	≥180 mm²/m,Aluminum cutting≥220 mm²/m
18	Surface roughness(Straight line cutting, H≤40mm)	Ra≤2.0μm
19	Cutting accuracyCr12,H=40mm	≤0.01mm
20	Radial runout of wire storage cylinder	≤0.02mm
21	Molybdenum wire diameter range	0.12~0.22mm
22	Wire storage capacity of wire storage cylinder	250m
23	Loss of molybdenum wireCr12,H=40mm	≤0.02mm
24	Cutting power supply	High frequency power supply system without resistance
25	operating system	Windows XP
26	Control system	AUTOCUT

27	communication interface	LAN,RS232,USB
28	Operation function	Drawing or CAD (DXF) drawing import
29	Volume of working tank	55L
30	Working fluid filtration mode	Filter screen filtration
31	Weight of whole machine	1200 kg
32	Overall dimension of main engine	1350x1150x1600mm
33	Cabinet size	730×630×1820mm
34	Rated power of electric appliance	≤ 2.7kW

Product accessories

S/N	Product Name	Position	QTY
1	main engine		1
2	Waterproof cover	On host	1
3	Working lamp	On host	1
4	Fixture (Workpiece Support Frame)	In the water tank	1
5	Filtration system		1
6	control cabinet		1
7	Machine Tool Electricity	On Control cabinet	1

Outbound Documents

S/N	name	spe	Manufacturer	Free Distribution Volume
1	scissors	Number 3	Normal Purchase in Market	1
2	Inner hexagonal wrench	M4-M10(5)		1
3	Stay wrrench	14-17		1
4	Wooden screwdriver	One , cross type		2
5	Oil gun	Metal Shell		1
6	Molybdenum wire corrector	H80mm	Self-control	1
7	Upper silk wheel			1
8	Working fluid	Emulsifier	Longkai, Suzhou	1
